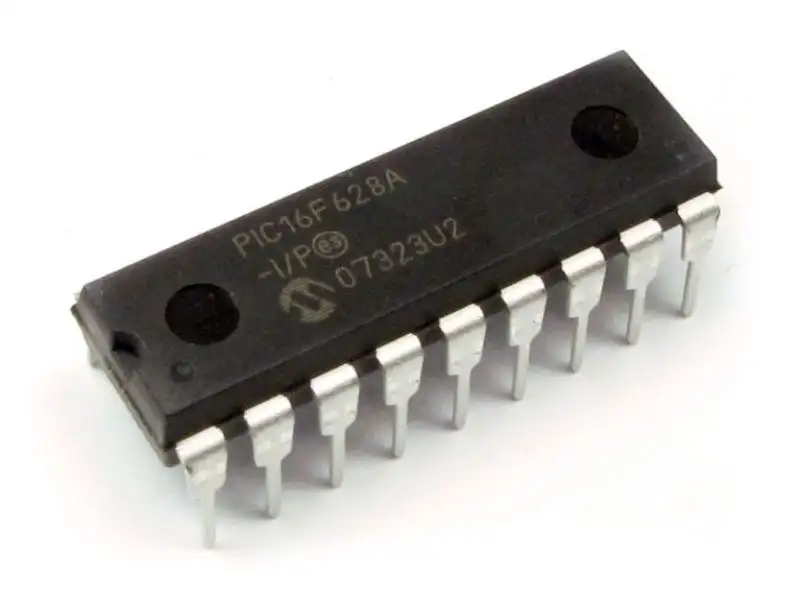

PIC16F628A 8 Bit PIC Microcontroller IC from Microchip Technology

The PIC16F628 are 18-Pin FLASH-based members ofthe versatile PIC16CXX family of low-cost,high-performance, CMOS, fully-static, 8-bitmicrocontrollers.All PIC microcontrollers employ an advanced RISC  architecture.The  PIC16F628 have enhancedcore features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit  wide data. The two-stage instruction pipelineallows all instructions to execute in a single cycle,except for program branches (which require twocycles). A  total of 35  instructions  (reduced instructionset) are available. Additionally, a large register set givessome of the architectural innovations used to achieve avery high performance.

Features

CPU

Mid-Range 8-bit

Number of Pins

18

Operating Voltage (V)

2 - 5.5 V

Number of I/O pins

16

ADC Module

Nil

Timer Module

3

DAC Module

Nil

Communication Peripherals

UART(1)

External Oscillator

Yes

Internal Oscillator

4 MHz

Program Memory (KB)

3.5 KB

CPU Speed (MIPS)

5

Max Frequency of operation

20MHz

Package

18-pin DIP
