Brand: Generic | SKU: 4758003
₹ 2,006.00
₹ 2,216.00
Enter your pincode to check delivery options

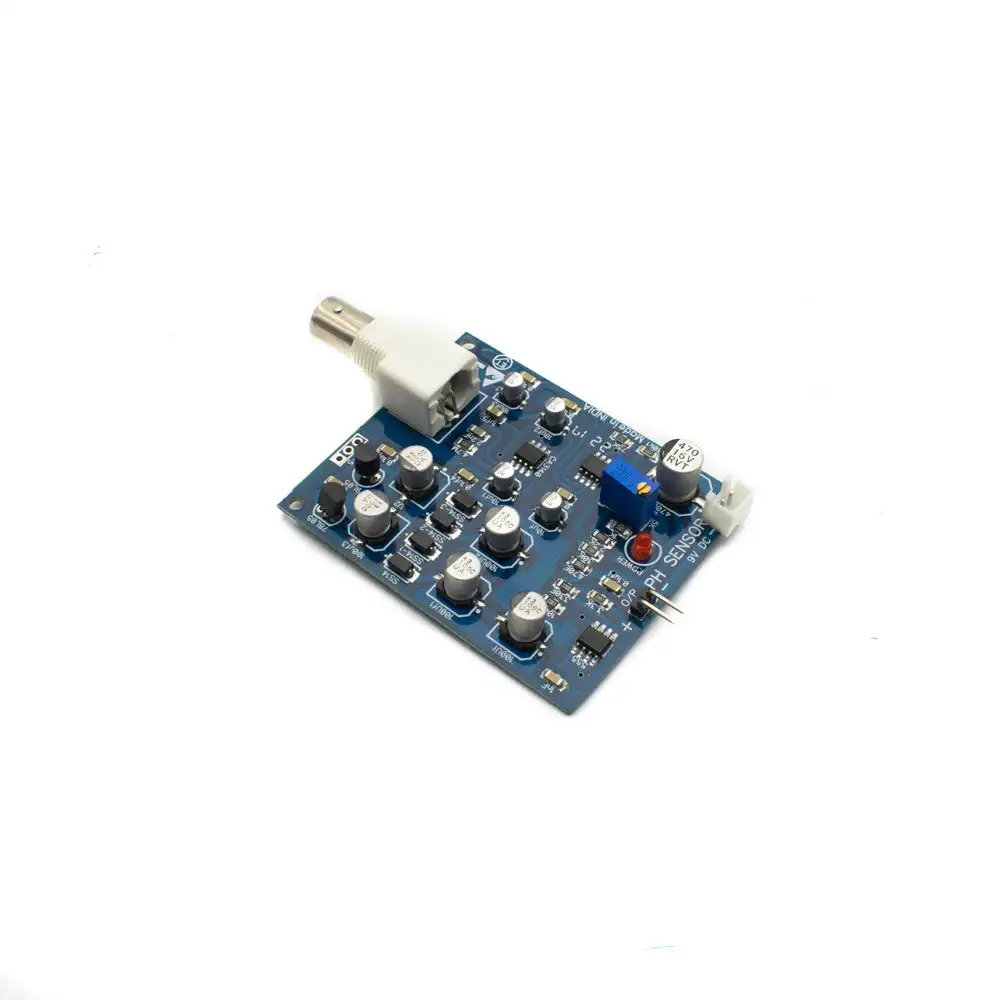

This pH sensor is commonly used to test the pH of a liquid as it measures the hydrogen-ion activity in water-based solutions. Wherever acidity and alkalinity testing is required, it is frequently employed in the chemical businesses, pharmaceutical industry, dye industry, and scientific research. This kit's drive board works with both 9V systems. It's also very easy to work with Arduino and Raspberry Pi thanks to the standard BNC probe interface and Grove connection. A Power Indicator LED, a BNC connector, and a PH2.0 sensor interface is all included.
To use it, simply connect the pH sensor to the BND connection and plug the PH2.0 interface into any Arduino controller's analog input port. If pre-programmed, you will get the pH value easily. Comes in a compact plastic box with foams for better mobile storage.The pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The PH electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device which has a BNC input terminal. The pH electrode probe is accurate and reliable that can give almost instantaneous readings.
Cautions:
Operating Voltage
9V
Current
1A
Measuring Range
0-14 pH
Accuracy
± 0.1 pH
Resolution
± 0.15PH(STP)
Temperature range
0-60℃
Zero-point
7 ± 0.5PH
Response time
1 min
Probe Interface
BNC
Wire length
80cm
L*B*H
93.4*54.9*14.2mm
