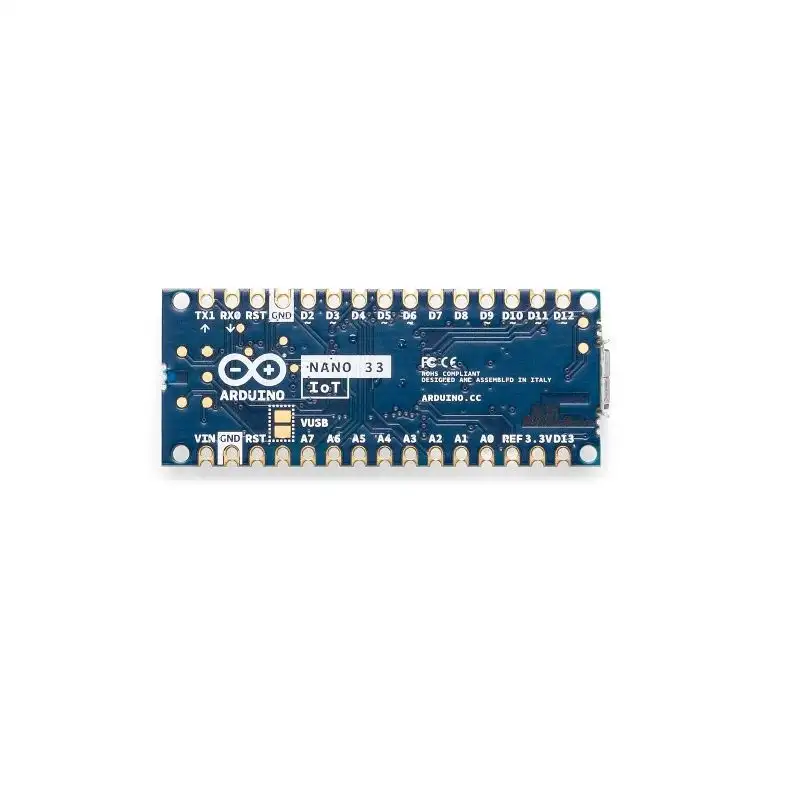

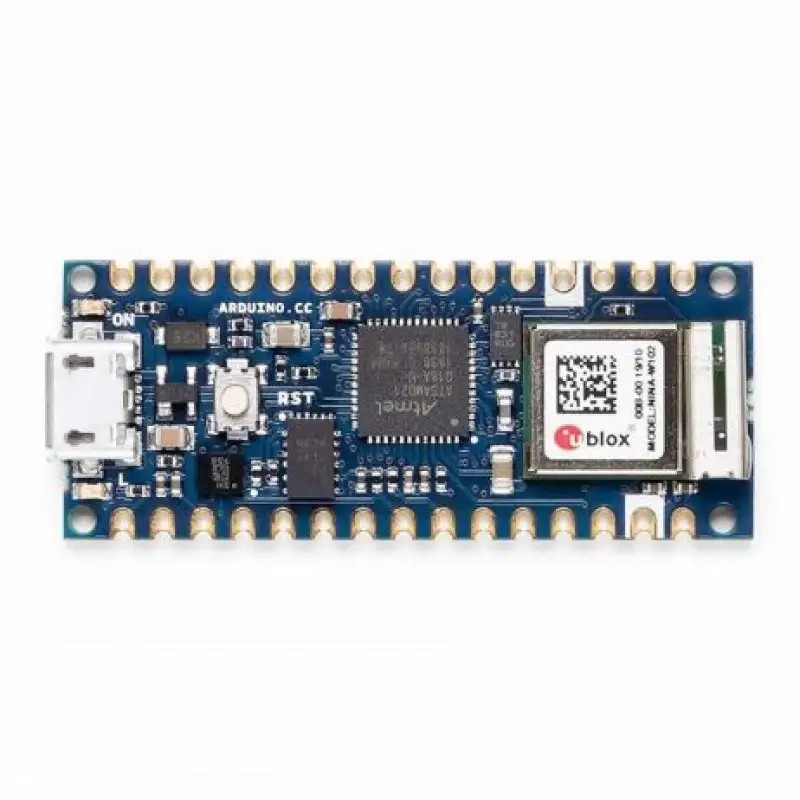

Original Arduino Nano 33 IOT

The Arduino Nano 33 IoT is the easiest and cheapest point of entry to enhance existing devices (and creating new ones) to be part of the IoT and designing pico-network applications. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the Nano 33 IoT is your one-stop solution for many of the basic IoT application scenarios.

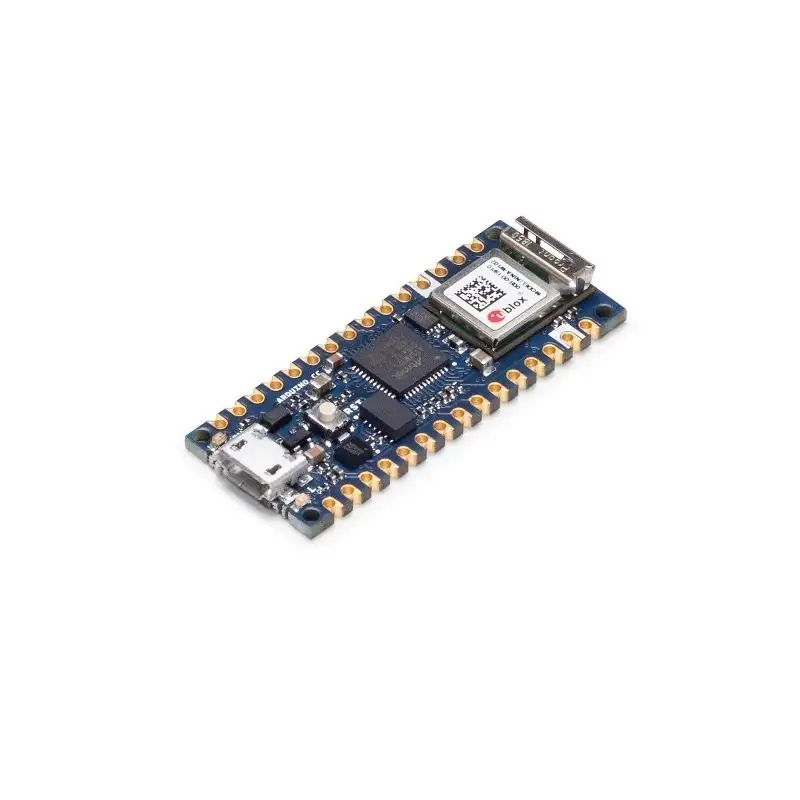

The boards main processor is a low-power Arm Cortex-M0 32-bit SAMD21. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low-power chipset operating in the 2.4GHz range. On top of that, secure communication is ensured through the Microchip ECC608 crypto chip.

Besides that, you can find a 6 axis IMU, which makes this board perfect for simple vibration alarm systems, pedometers, the relative positioning of robots, etc.

Features:

1. Secure communication for all of your connected things with Arduino IoT Cloud.
2. Connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point.
3. Compatible with other Cloud Services.
4. The communications chipset on the Nano 33 IoT can be both a BLE and Bluetooth client and host device.

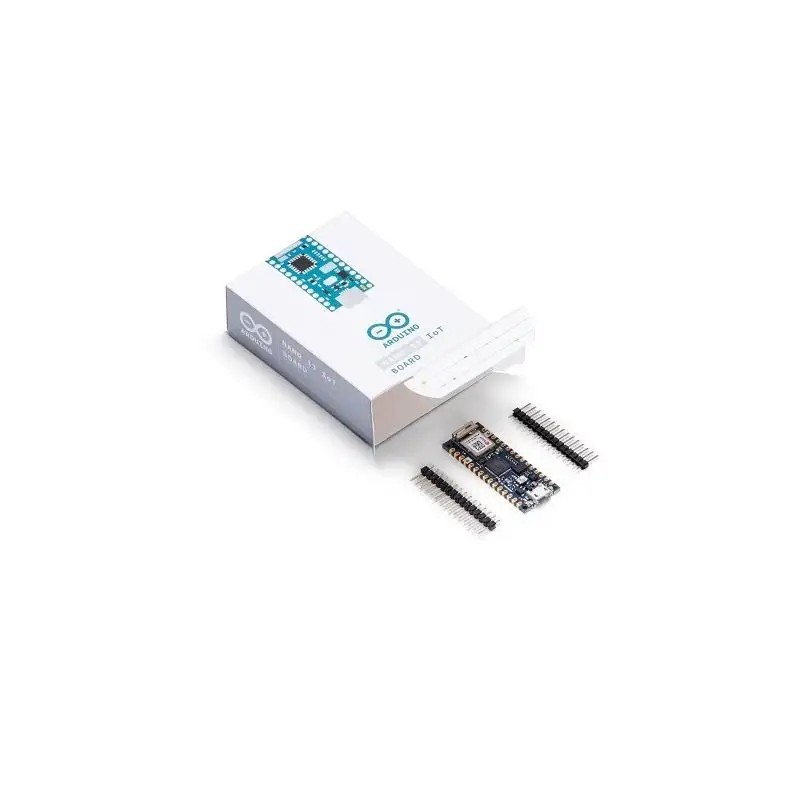

Package Includes:

1 x Arduino Nano 33 IOT

Specifications :-

Model Type	Nano 33 IOT
Microcontroller	SAMD21 Cortex-M0+ 32bit low power ARM
Radio module	u-blox NINA-W102
Secure Element	ATECC608A
IMU	LSM6DS3
Operating Voltage (VDC)	3.3
Analog I/O Pins	Input Pins 8 : (ADC 8/10/12 bit) Output Pins : 1 (DAC 10 bit)
Digital I/O Pins	14
PWM Output Pins	11 (2, 3, 5, 6, 9, 10, 11, 12, 16 / A2, 17 / A3, 19 / A5)
Clock Speed	48MHz
DC Current per I/O Pin (mA)	7
Flash Memory	256 KB
EEPROM	None
SRAM	32
Length (mm)	45
Width (mm)	18
Height (mm)	5
Weight (gm)	5
