NE555 Eight note based Electronic Keyboard DIY Kit

In Stock

Brand: Generic | SKU: 6090357

₹ 213.00

~~₹ 267.00~~

Save 20%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Key Features:

Educational Kit: Great for learning basic electronics and circuit design.

Simple Assembly: Easy-to-follow instructions make it suitable for beginners.

Eight Notes: Produces eight distinct musical notes.

NE555 Timer IC: Utilizes the versatile NE555 timer for sound generation.

Battery Powered: Operates on a simple battery, making it portable.

Compact Design: Small and easy to integrate into various DIY projects.

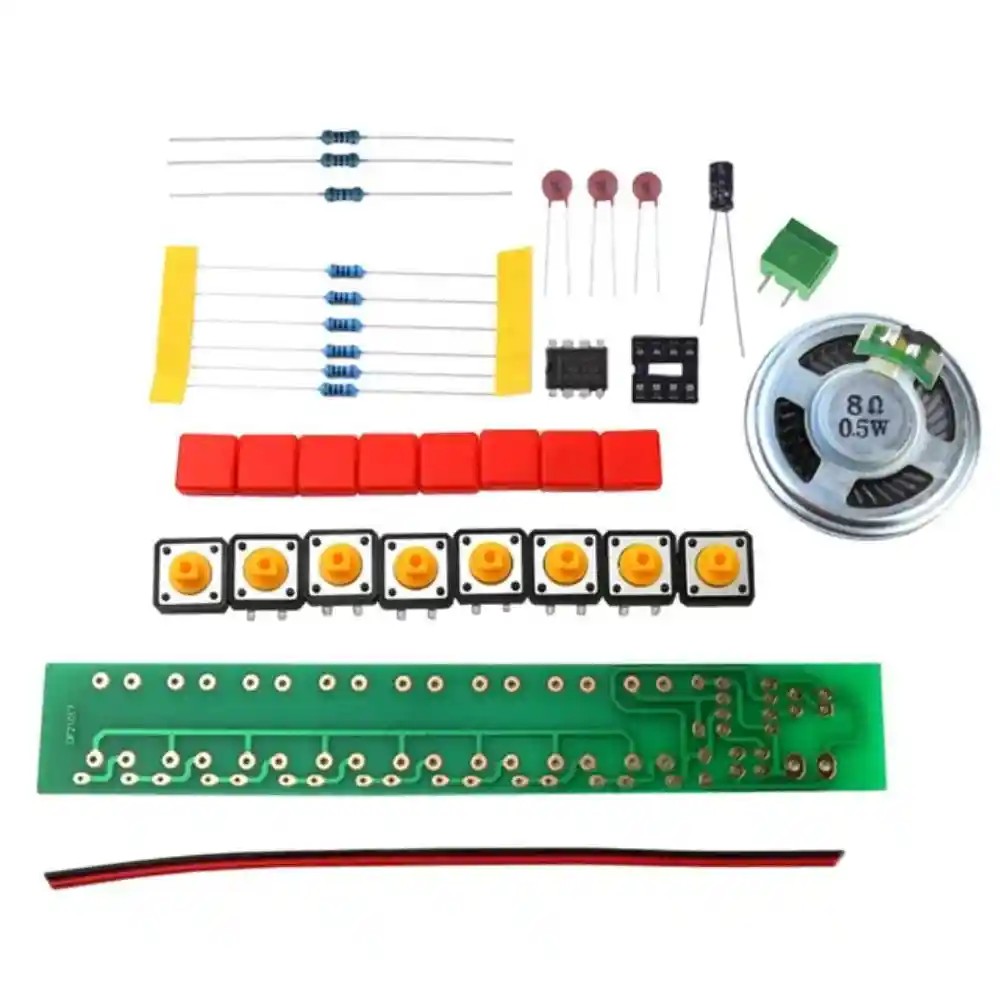

Components Included:

NE555 Timer IC: The core component responsible for generating sound frequencies.

Resistors: Various resistors for setting different note frequencies.

Capacitors: Used to stabilize the timer and modify sound output.

Push Buttons: Eight buttons corresponding to eight musical notes.

Speaker: A small speaker for sound output.

Battery Holder: For powering the circuit (typically requires a 9V battery).

Printed Circuit Board (PCB): Pre-designed board for easy assembly.

Connecting Wires: For linking components as per the circuit diagram.

Specifications

IC: NE555 Timer
Power Supply: 9V battery (not included)
Number of Notes: 8 distinct musical notes
Dimensions: Varies by kit design, typically small and compact
Output: Sound through a small speaker

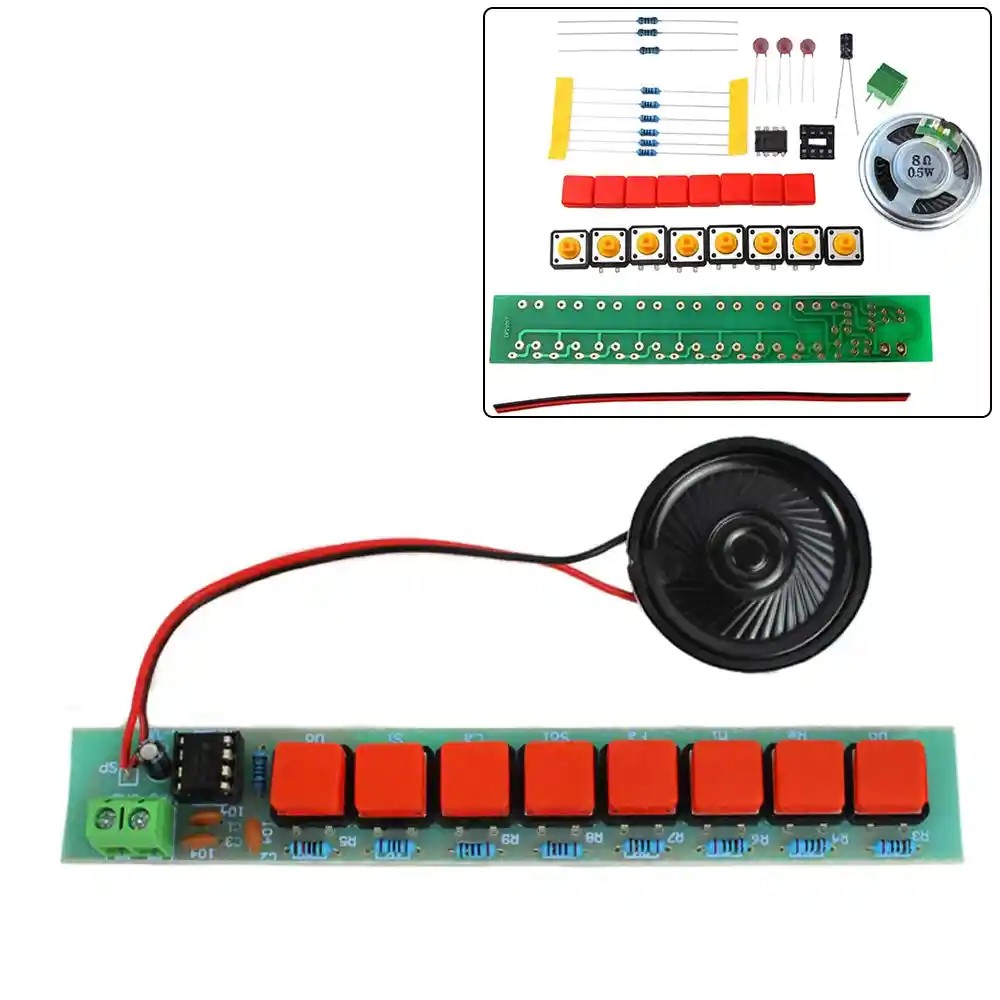

Assembly Instructions

Prepare the Components: Ensure all components are present and in good condition. Identify each component using the provided schematic and parts list.

Place Components on the PCB: Start with the smallest components, such as resistors and capacitors. Insert the NE555 timer IC into its designated slot. Attach the push buttons corresponding to each note.

Solder the Connections: Carefully solder each component in place, ensuring good connections. Trim excess leads after soldering to prevent shorts.

Connect the Speaker: Attach the speaker wires to the appropriate points on the PCB.

Install the Battery Holder: Connect the battery holder wires to the power input points on the PCB.

Test the Circuit: Insert the battery and press each button to ensure all notes are functioning. Troubleshoot any issues with solder connections or component placement. Usage

Play Music: Press the buttons to produce different notes and create simple melodies.

Educational Tool: Use it as a learning tool to understand how oscillators and timers work in electronic circuits.

Customization: Experiment with different resistor and capacitor values to alter the notes and sounds produced.
