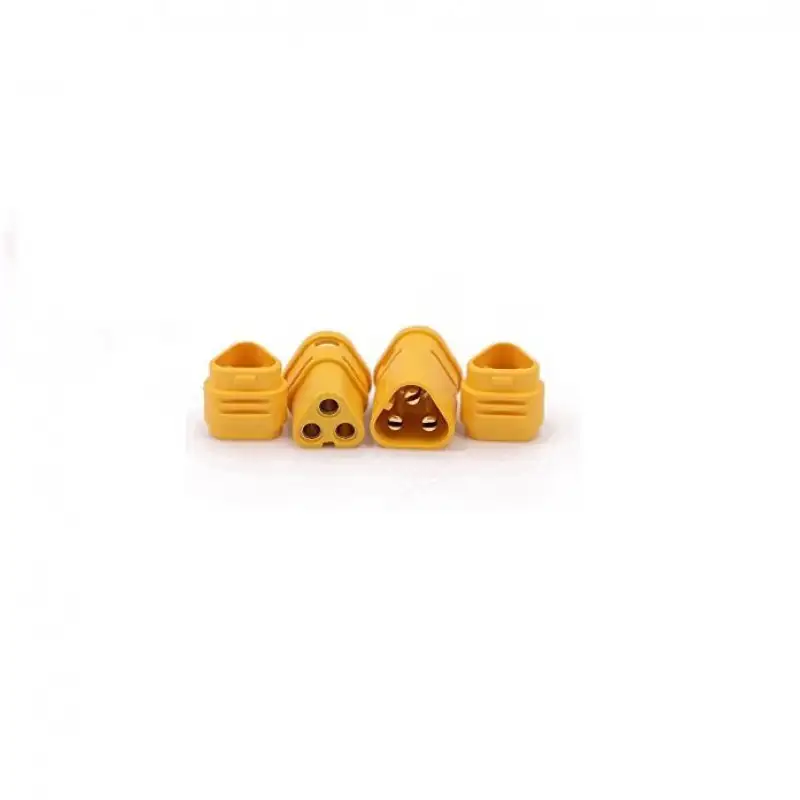

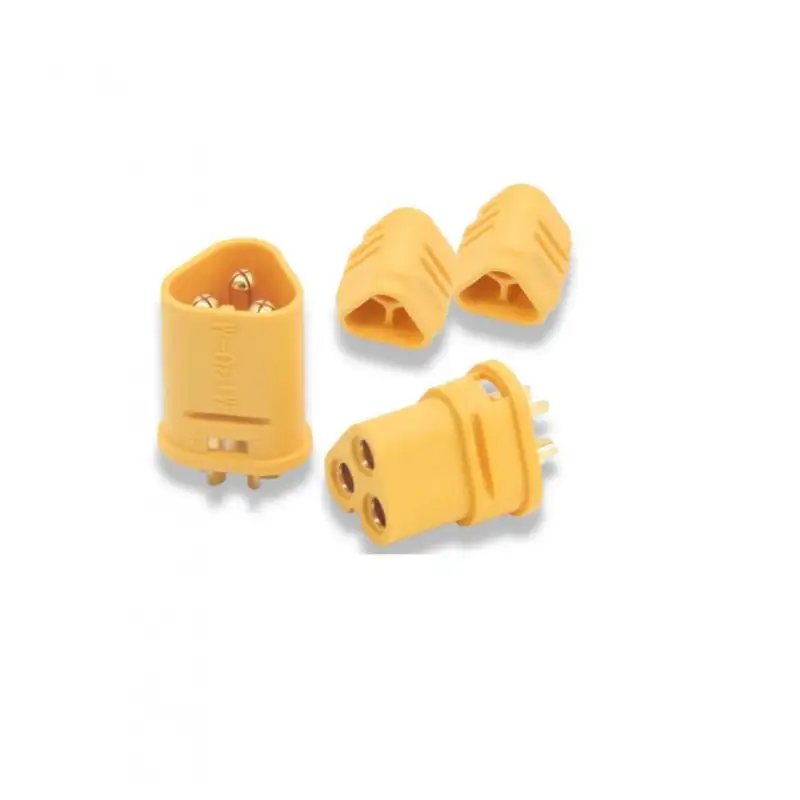

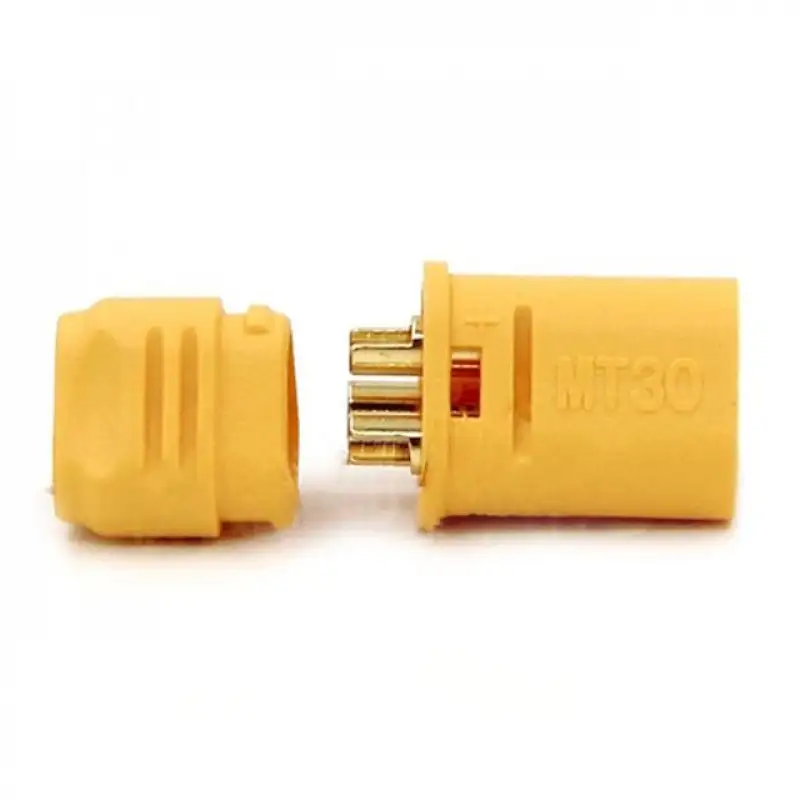

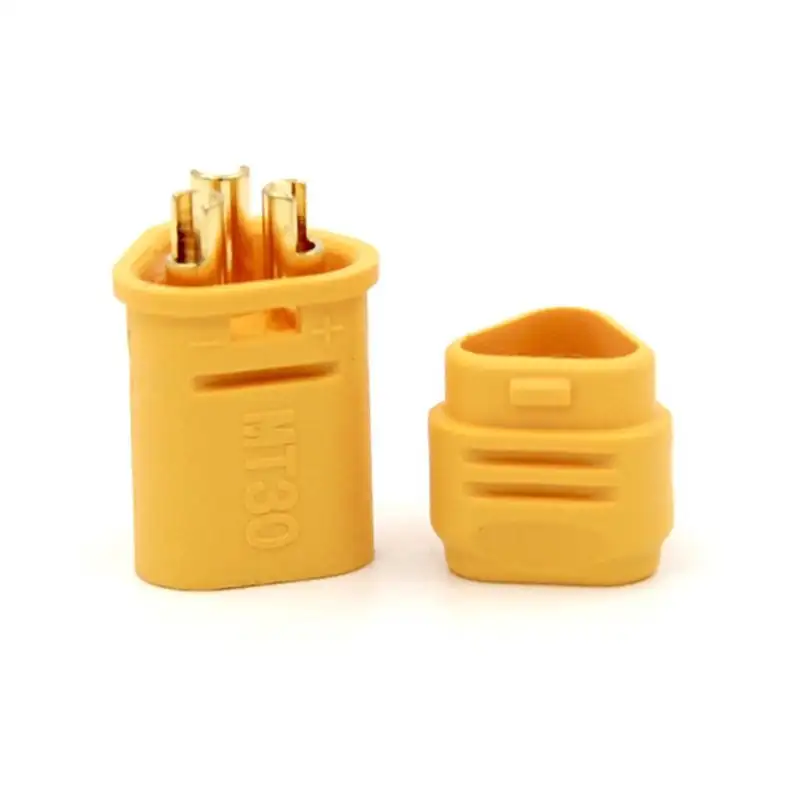

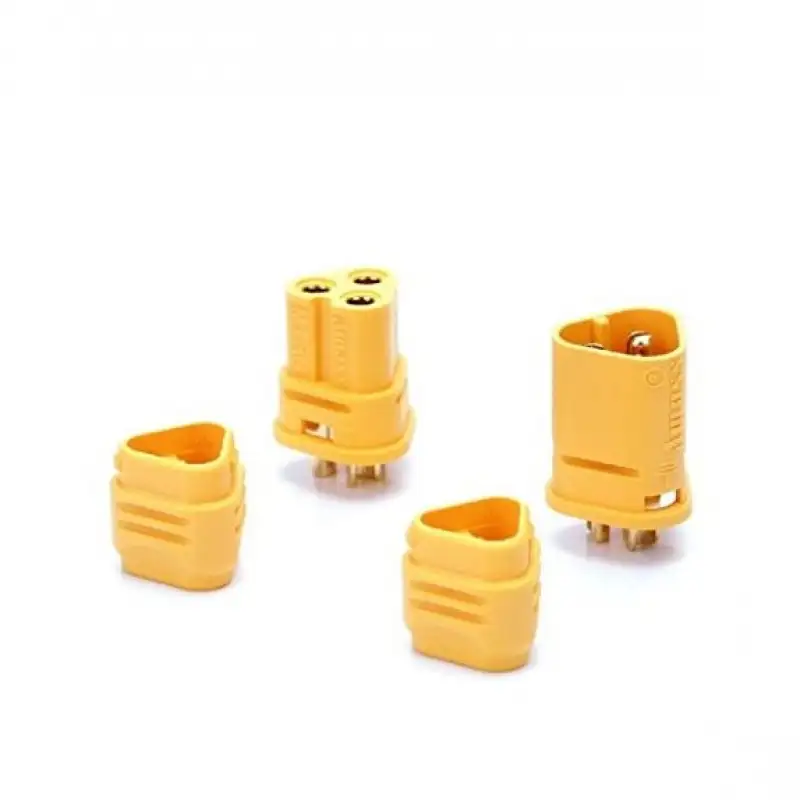

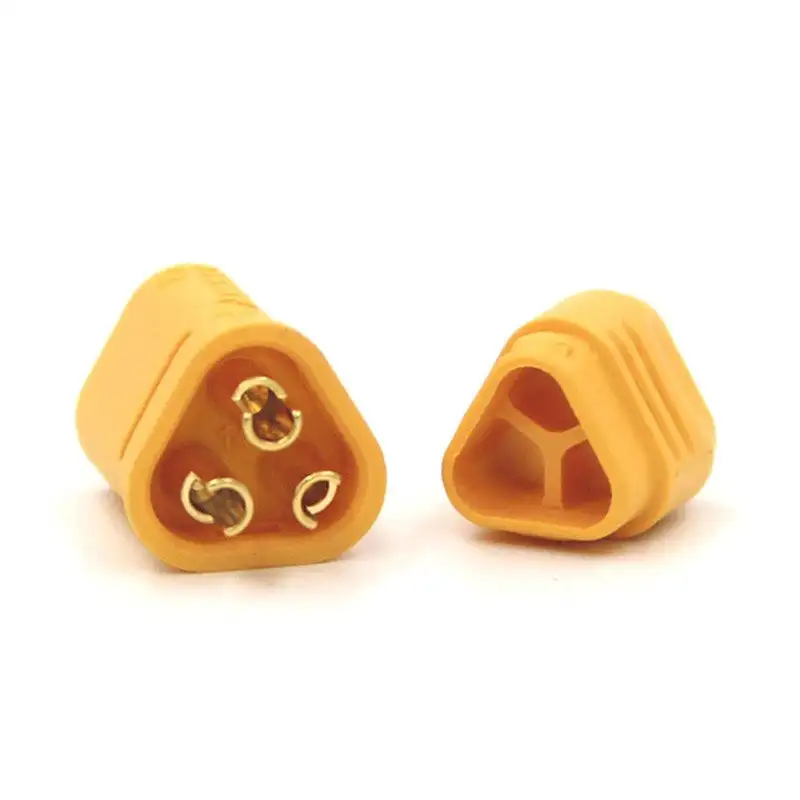

MT30 3 Pole Motor-ESC Connector Set Male-Female Pair - 1 Set

The MT30 3 Pole Motor Connector set is the perfect solution for securing your brushless motor / ESC connections for up to 16AWG wires. The connector set featured with gold plated connecting points, high-quality plastic with ideal design by Amass. Both male and female connectors are fitted with 2mm bullet points to solder the wires and supplied with a cable tidy attachment Cap to keep things nice and neat!

Note: Connector back Caps Lock is designed to be very tight, Once you locked it then it is little tough to reopen it.

Features:

1. Brand: Amass
2. Suitable for:16AWG wire (Max)
3. Color: Yellow
4. Gold Plated Connector
5. High-Quality Material

Package Includes:

1 x MT30 3 Pole Motor/ESC Connector Set Male+Female Pair (1 Set)

Specifications :-

Brand	Amass
Gender	Mail-Female Pair
Rated Operating Voltage (VDC)	500
Current Handling Capacity (A)	60
No. of Contact Points	3
Connector Type	MT30
Contact Material	Brass
Contact Plating	Gold flash
Operating Temperature Range (°C)	-20 to 120
Flammability Rating	UL94V-0
Color	Yellow
Dimensions (mm) LxWxH	20 x 10 x 10mm (assembled)
Weight (gm)	2.96 per pcs.
Allowed Wire Size (AWG)	18 ~ 16
