- Mini Solar Lipo Charger Board
Click Image to Preview

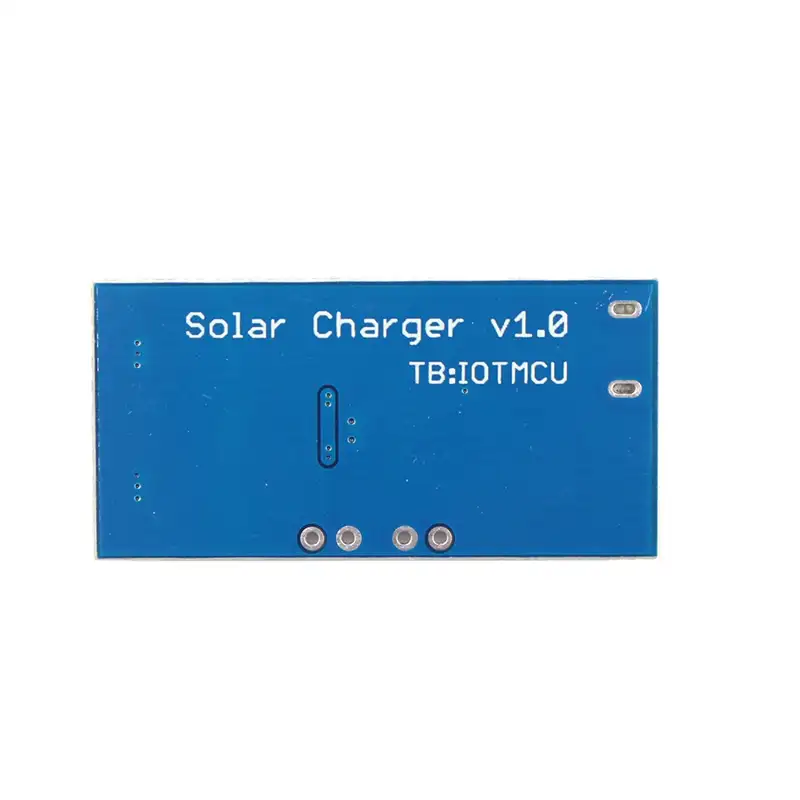

Mini Solar Lipo Charger Board
Brand: Generic | SKU: 4562061
₹ 138.00
₹ 209.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description

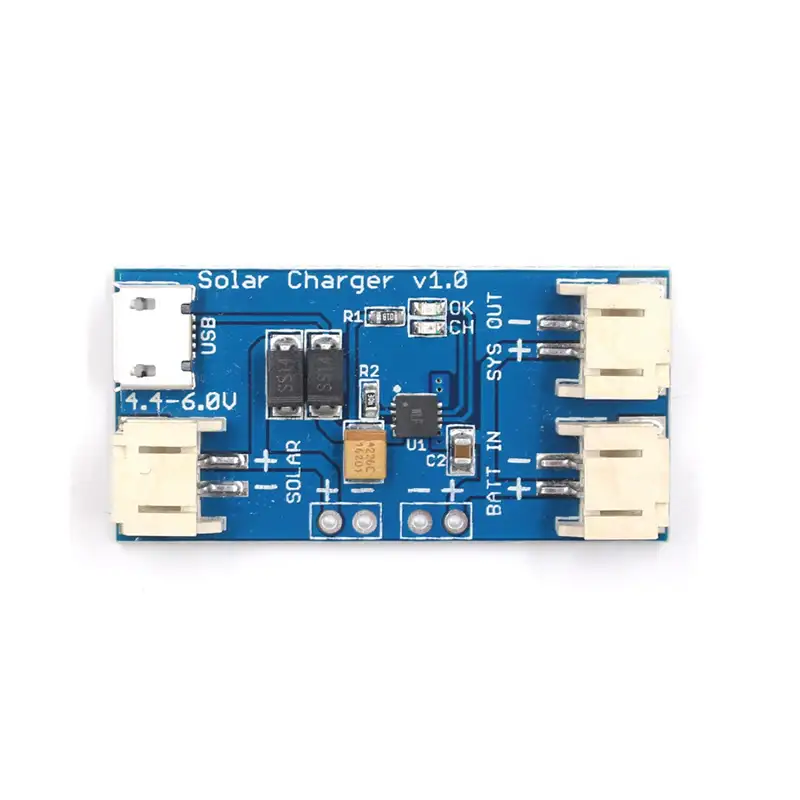

This is a Super-Mini Solar Lipo charger based on the CN3065 a single lithium battery charge management chip. This Solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!
The output of the Solar Charger is intended to charge a single polymer lithium-ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). Its recommended that batteries not be charged at greater than their capacity rating.

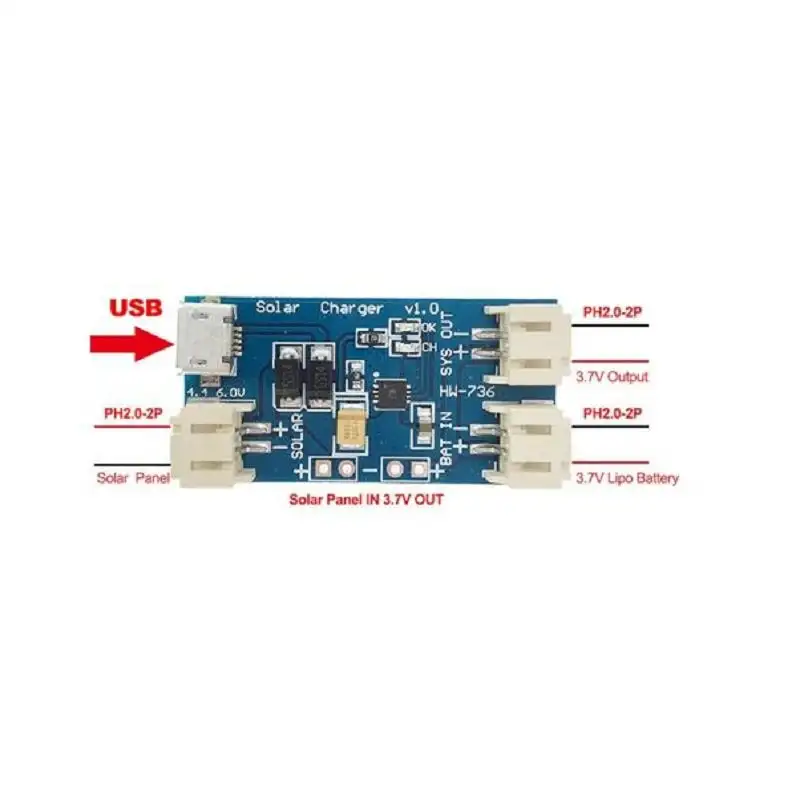

Note: This Product is also available in HW 736 variant with the same working, we will ship it randomly
Features:
- Solar panel input: 4.4-6V
- Max charge current: 500mA
- Interface: 2-pin JST connectors(or PH2.0)
- Short circuit protection
- Continuous Charge Current Up to 500mA
- Battery status indication (Red: Charging, Green: Charged)
- Support USB Charge (Micro-USB Connector)
Package Includes:
1 x Mini Solar Lipo Charger Board
Specifications:
| Input Voltage Range |
4.4 to 6VDC |
| Max Charge Current |
500mA |
| Connector |
2-Pin Connectors |
| Battery Status Indicator |
Red: Charging
|
| Length (mm) |
39 |
| Width (mm) |
19 |
| Height (mm) |
7 |
| Weight (gm) |
5 |
|
|
|
