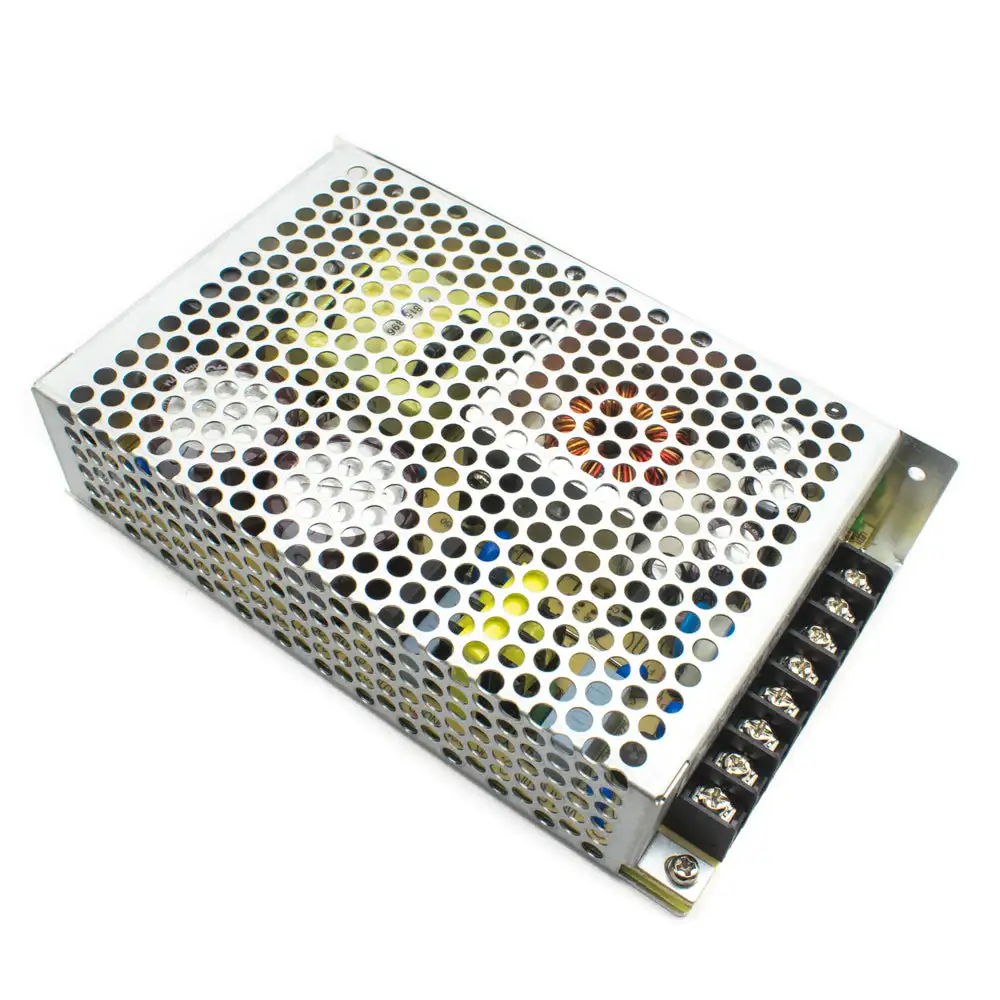

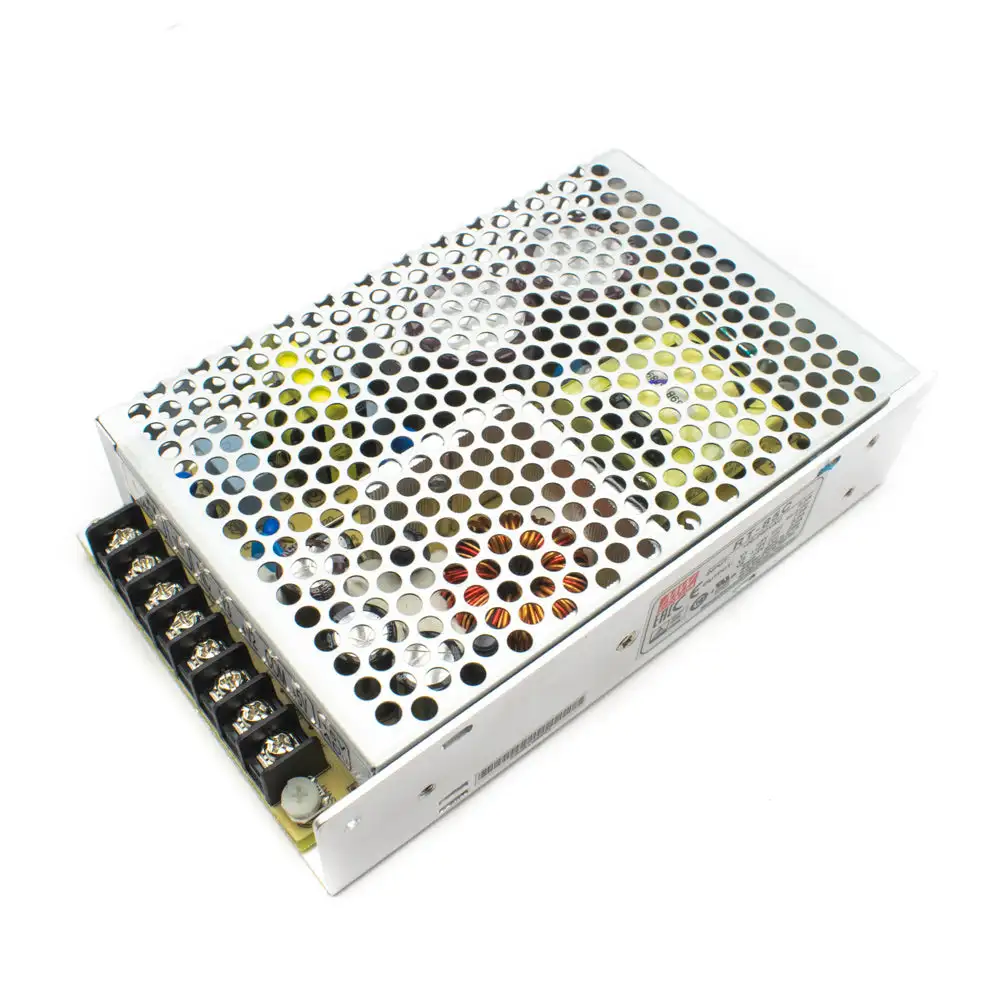

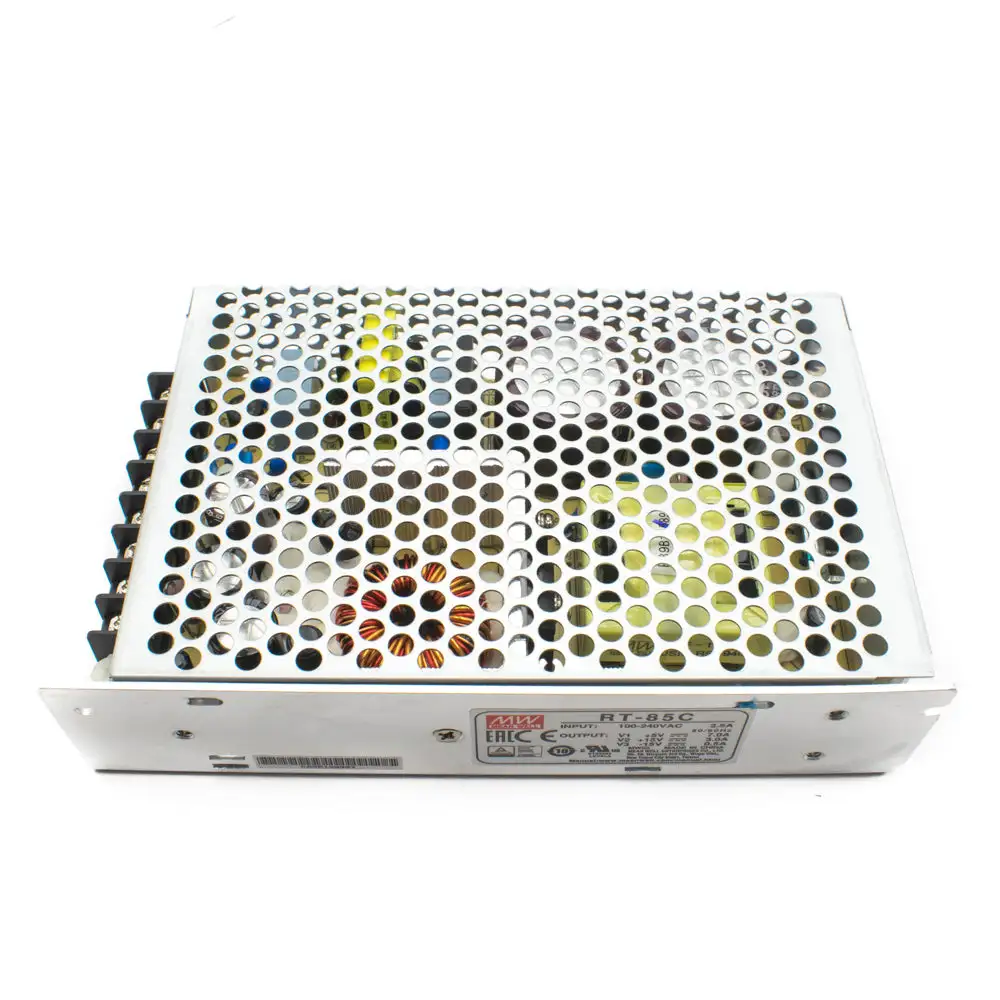

Meanwell RT85C SMPS (5V, 15V, -15V) 85W Triple Output Switching Power Supply

RT-85C series is a 85W triple-output enclosed type power supply with 38mm of low profile design. The AC input is 88~264VAC which could be directly supplied from the house supplied voltage. The output Voltages from SMPS will be +5V, +15V, -15V. The SMPS has high efficiency up to 77%, the design is of metallic mesh case which enhances the heat dissipation of RT-85C that the whole series operates from -25°C through +70°C. RT-85C has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL62368-1, TUV EN62368-1. RT-85C series can be used for many purposes with the best performance from it.

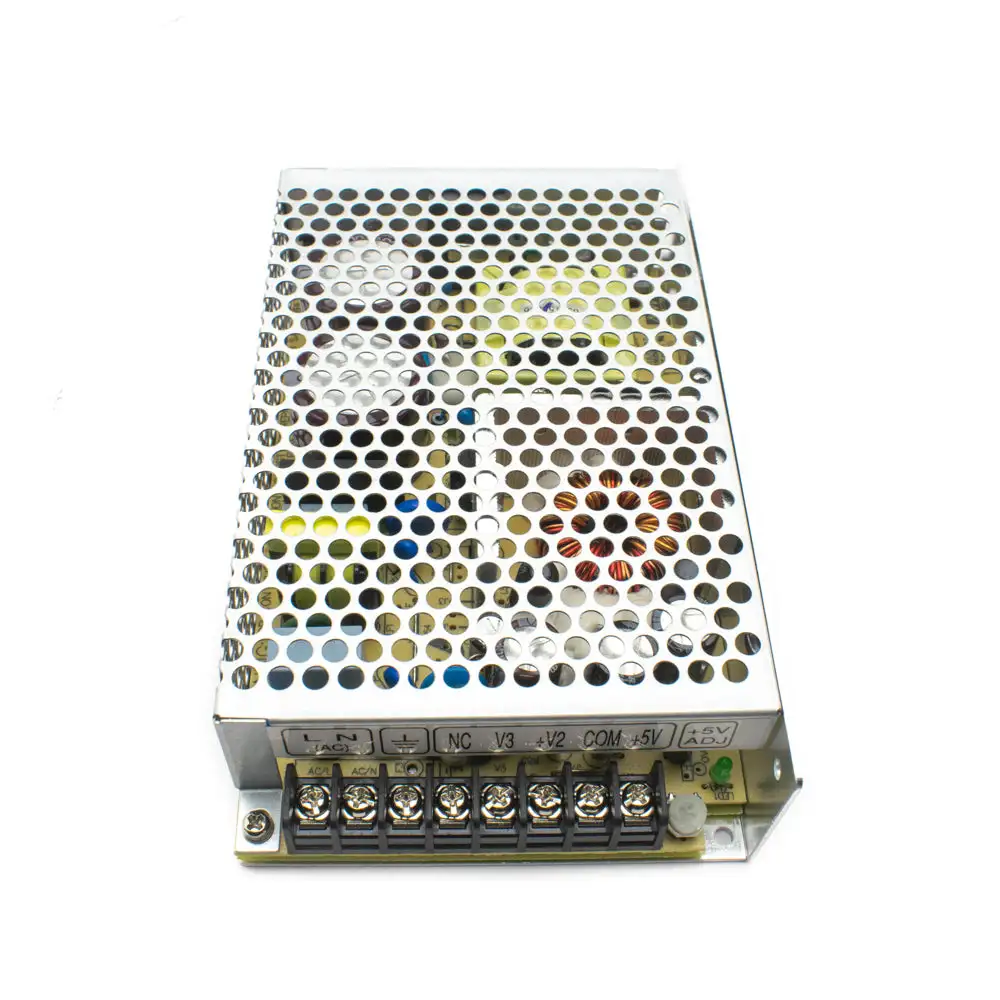

Pinout

Feature

Applications

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed
