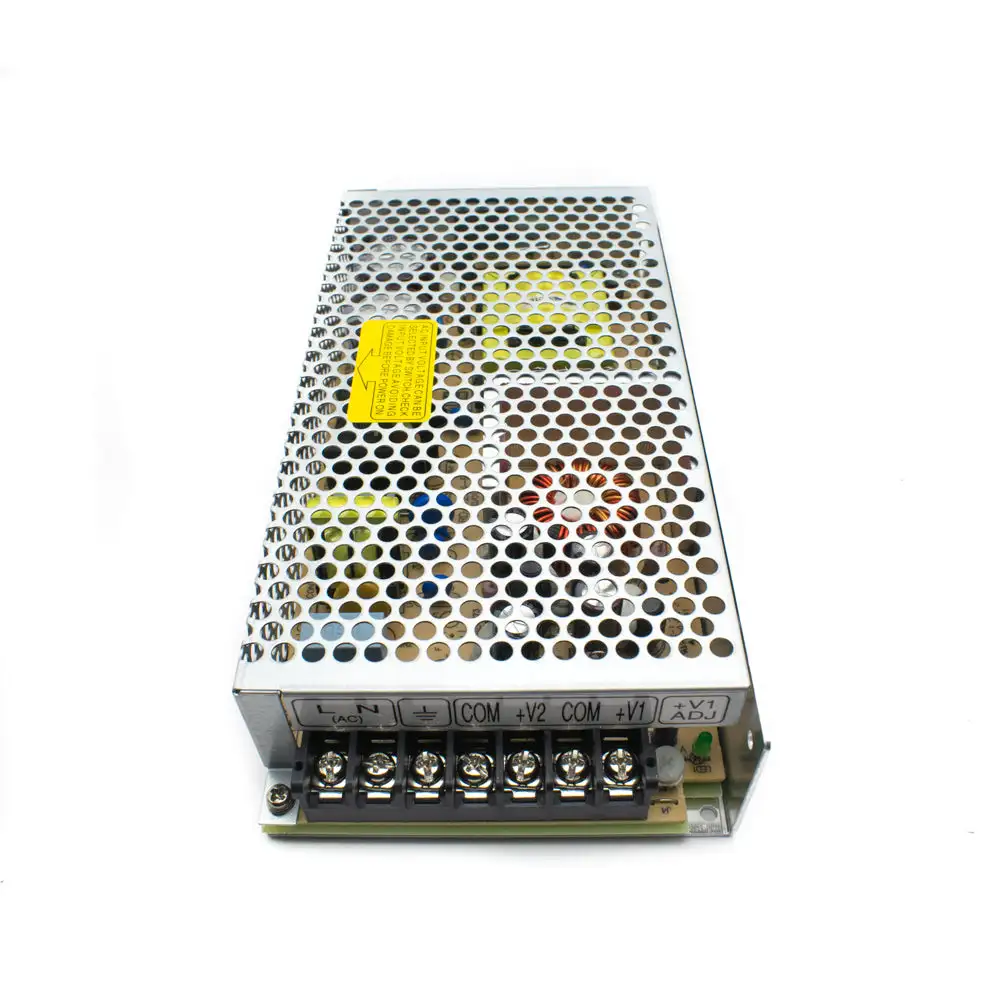

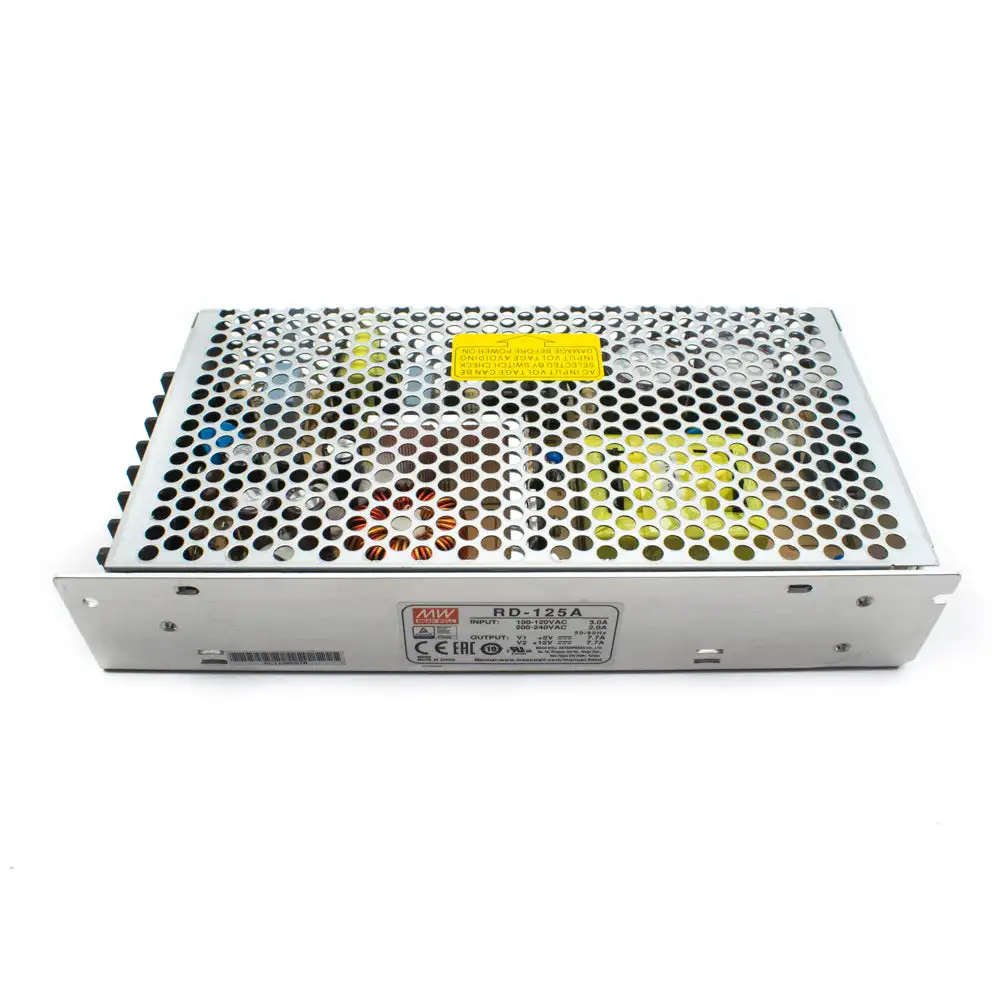

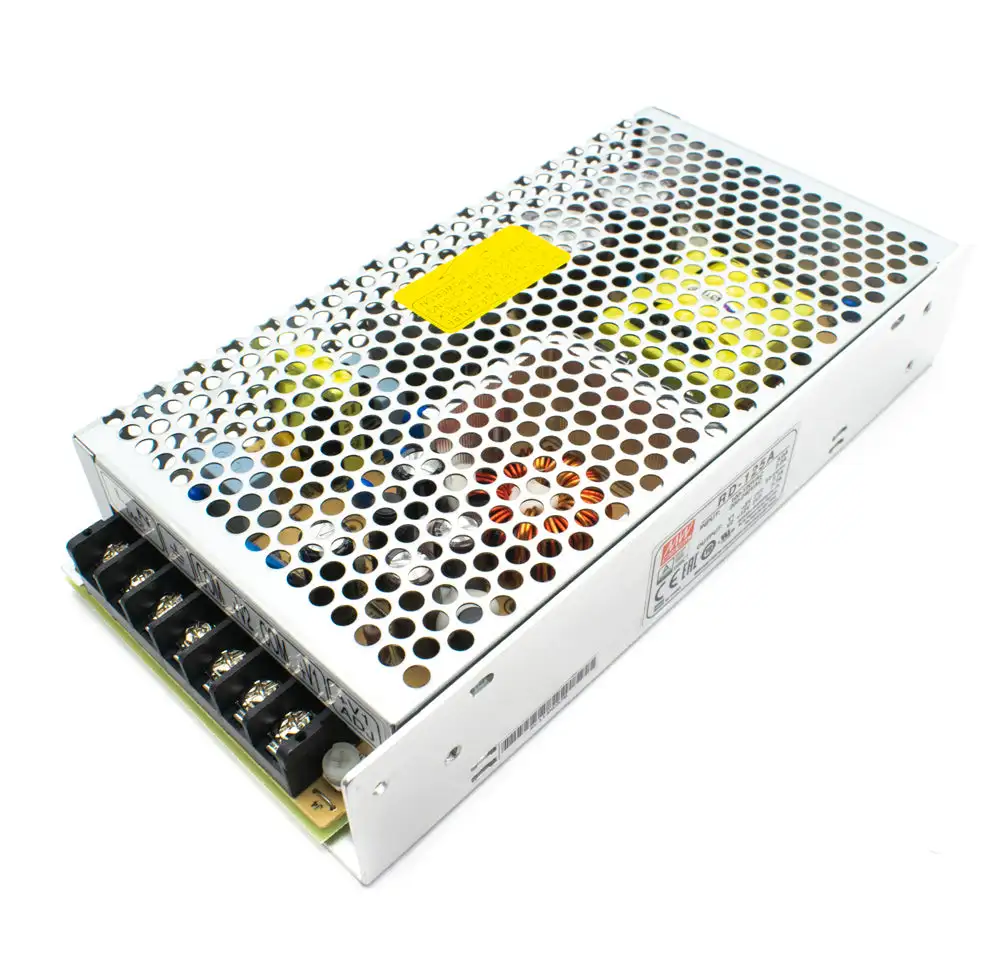

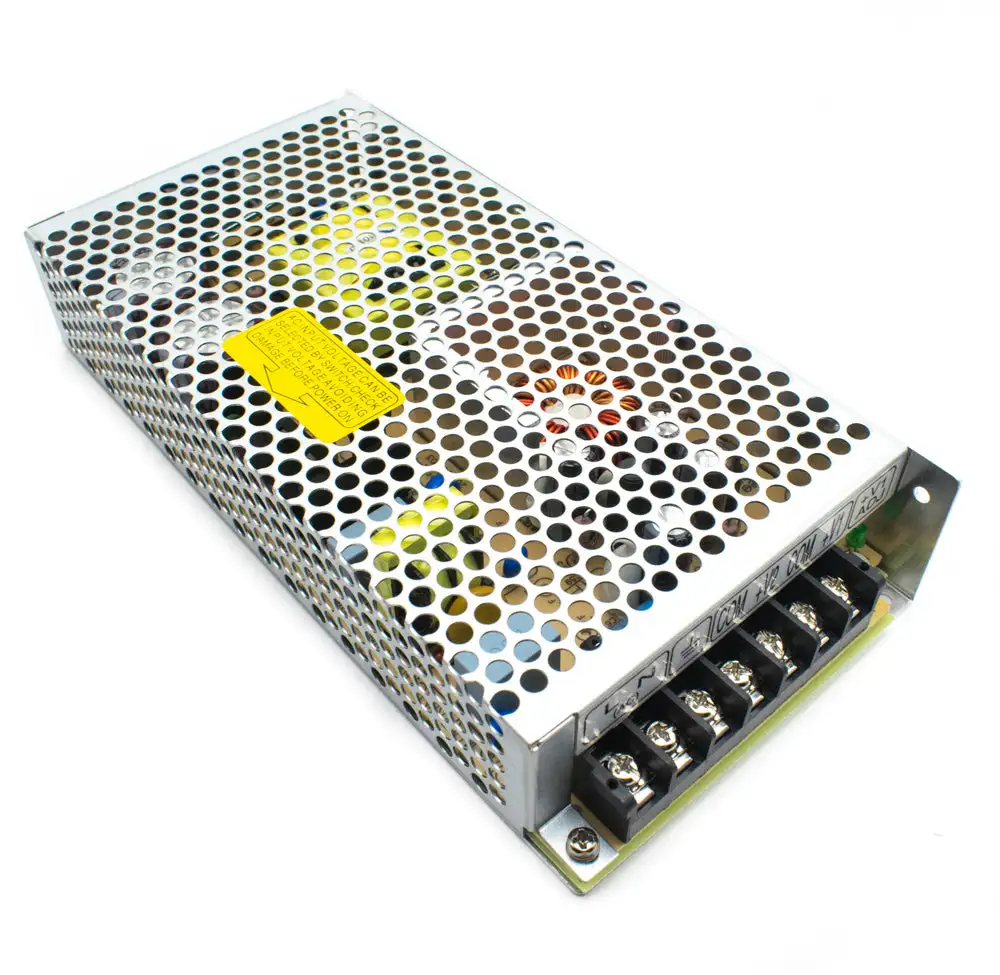

Meanwell RD125A (5V, 12V) 125W Dual Output Switching Power Supply

RD-125A series is a 125W Dual-output enclosed type power supply with 38mm of low profile design. The AC input is 88 ~ 132VAC / 176 ~ 264VAC (selected by switch) which could be directly supplied from the house supplied voltage. The output Voltages from SMPS will be +5V, +12V. The SMPS has high efficiency up to 82%, the design is of metallic mesh case which enhances the heat dissipation of RD-125A that the whole series operates from -25°C through +70°C. RD-125A has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL62368-1, TUV EN62368-1. RD-125A series can be used for many purposes with the best performance from it.

Pinout

Feature

Applications

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed
