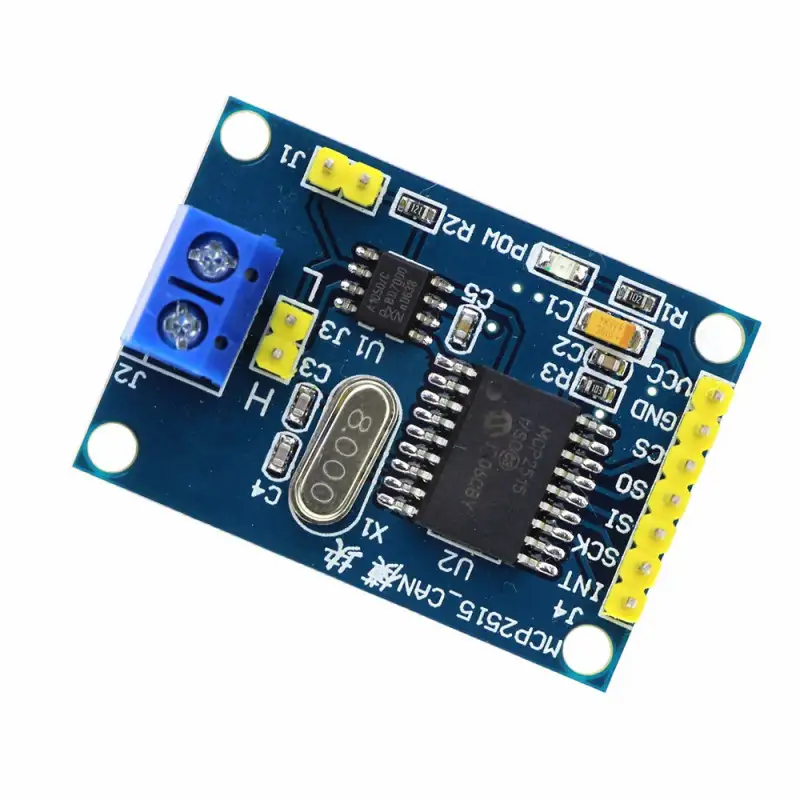

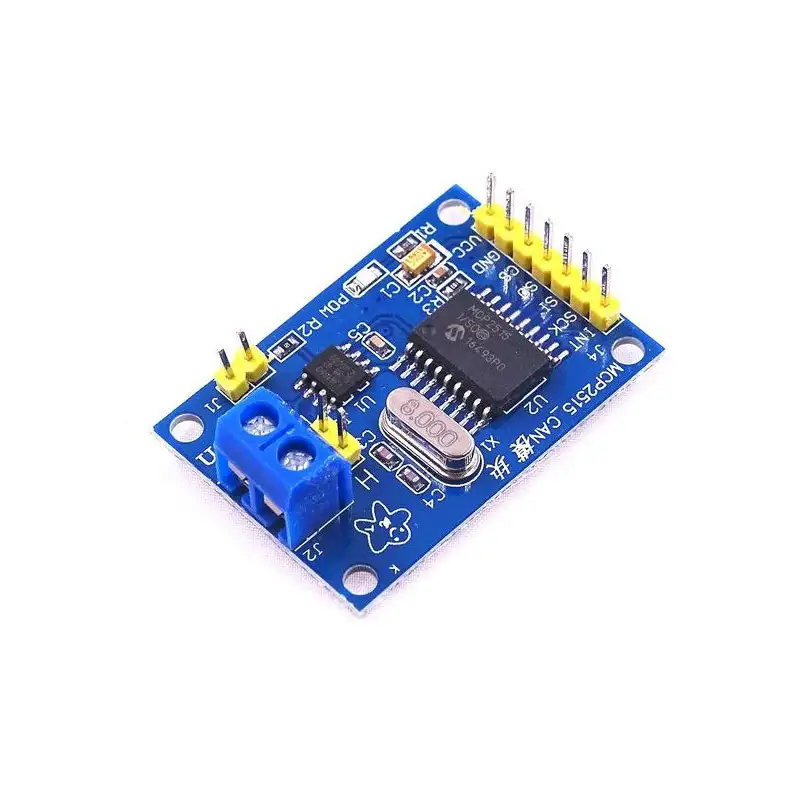

MCP2515 CAN Bus Module with TJA1050 Transreceiver

In Stock

Brand: Generic | SKU: 5141901

₹ 179.00

~~₹ 218.00~~

Save 18%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

This is a easy to use CAN bus module controlled via SPI Interface. It contains CAN Controller MCP2515 and TJA1050 which is a high speed CAN trans-receiver. This module can be esaily interfaced to any microcontroller via SPI Interface. It can also be interfaced to Arduino and Raspberry PI.

Specifications & Features of MCP2515 CAN Bus Module:-

Support CAN V2.0B technical standard, communication rate 1Mb/S.
Use High-speed CAN transceiver TJA1050
Dimension: 40Ã—28mm
SPI control for expand Multi CAN bus interface
8MHZ crystal oscillator
120Î© terminal resistance
Module 5V DC power supply.
0 to 8 bytes long data field.
Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
The working current: typical 5mA, standby current 1 microamp. Except for the power indicator.
Use serial port could view the communication data
With the independent key, LED indicator, Power indicator
With power pin
Standard frames, extended frames, and remote frames.
Positioning screw hole center spacing 23 mm x 38 mm
