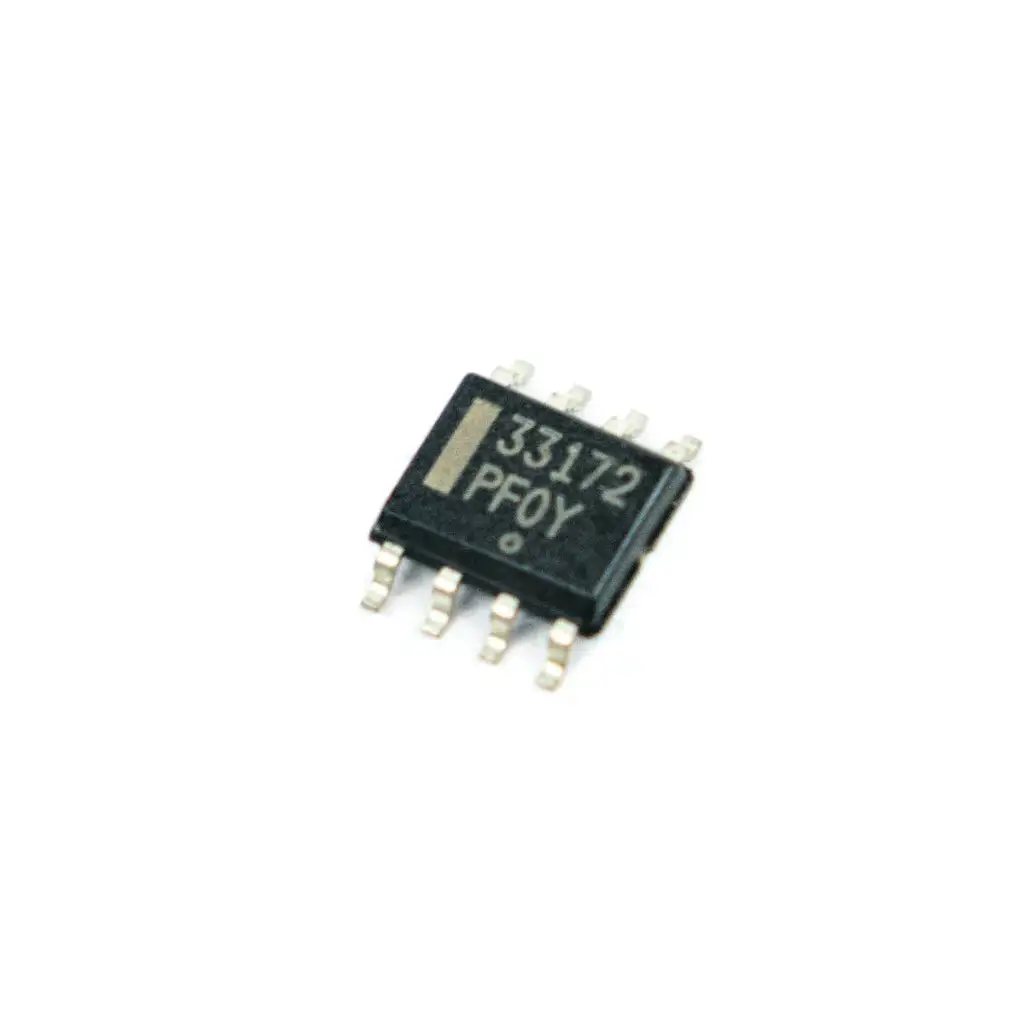

MC33172 Single Supply 3.0V to 44V Operational Amplifier

MC33172 is a monolithic op-amp in which high-quality bipolar fabrication and unique design principles are used. Without the usage of JFET device technology, these devices run at 180 A per amplifier and provide a gain-bandwidth product of 1.8 MHz and a slew rate of 2.1 V/s. Although this series can be run from split supplies, the common-mode input voltage includes ground potential, making it ideal for single-supply operation (VEE). These devices have a high input resistance, low input offset voltage, and high gain due to the Darlington input stage. High capacitance drive capability, excellent phase, and gain margins, low open-loop high-frequency output impedance, and symmetrical source/sink are all features of the NPN output stage, which has no deadband crossover distortion and a big output voltage swing. These op-amps are well specified under industrial and automotive ranges. And comes in both plastic and surface mountings.

Features:
