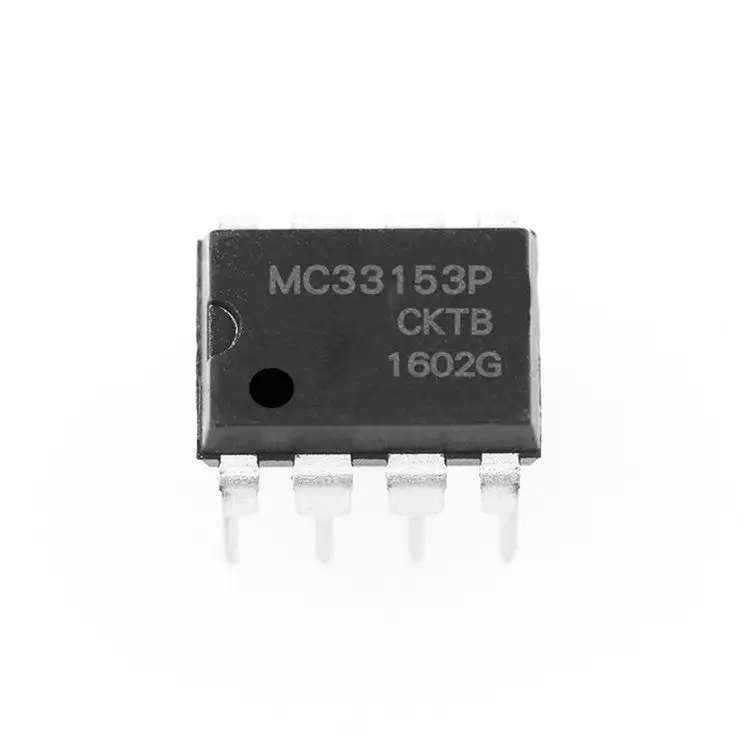

MC33153 Single IGBT Gate Driver IC

IGBT stands for insulated-gate bipolar transistor. It is a power transistor that combines an input MOS and an output bipolar transistor. The MC33153 is specifically designed as an IGBT driver for high power applications that include ac induction motor control, brushless dc motor control and uninterruptable power supplies. Although it was created to drive discrete and module IGBTs, this device also provides an affordable way to drive power MOSFETs and bipolar transistors. Desaturation or overcurrent sensing as well as under-voltage detection are options for device protection features. These devices are available in dual−in−line.

Features:-

Parameter

Values

Model

MC33153

Supply Voltage

11 V -20 V

Logic Voltage

VIL=1.2 VVIH=3.2 V

Gate Type

IGBT, N-Channel MOSFET

Operating Temperature

-40 °C -150 °C

Rise / Fall Time

17 ns

Package

DIP
