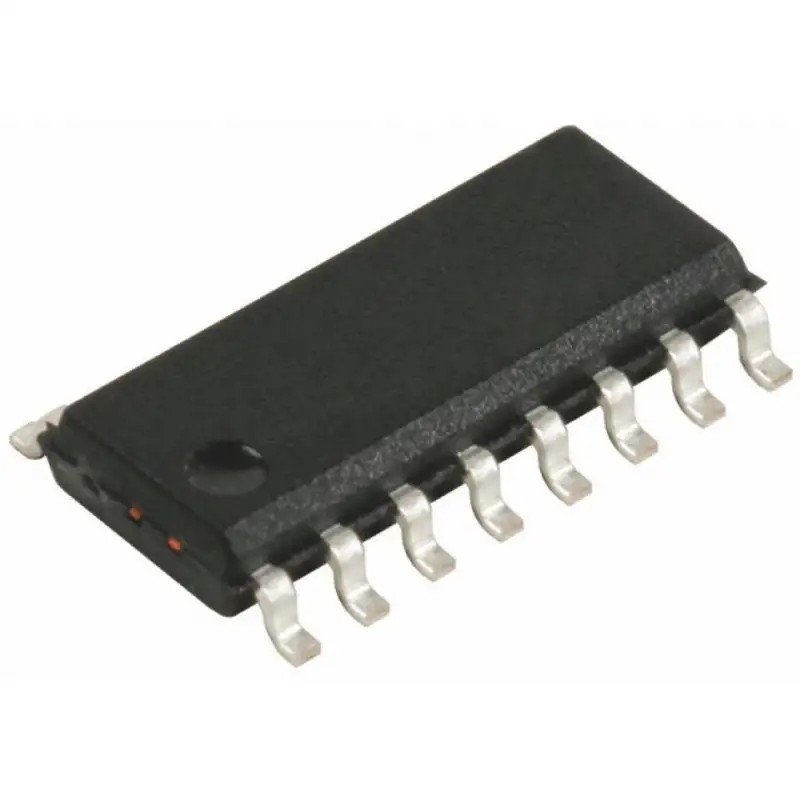

MAX3232 IC - (SMD Package) - RS-232 Transceivers IC

MAX3232 Transceiver RS232 Interface SO-16 Package MAX3232 is used for TTL/CMOS to RS232 conversion. Meaning most of our Microcontrollers (PIC/ARM/Atmel) operates on TTL/CMOS logic that is it communicates through either 0V or +5V, but our computers work with the help of RS232 which operates at logic level -24V or +24V. So, if we have to interface these microcontrollers with the Computer we need to convert the TTL/CMOS logic to RS232 logic. This Product Known as MAX3232, RS232 to TTL Converter IC, AX3232CAE, MAX3232IDBRE4, MAX232CSE,  MAX3232 IC, MAX3232 SMD IC, RS-232 Transceivers IC, RS-232 Transceivers SMD IC, SMD, SMD IC, Surface Mount Device.

Applications:-

• Used to Connect Microcontroller with Computers
• TTL/CMOS logic to RS232 converters
• Used in RS232 cables

Features and Specifications:-

• Operating Voltage: 3V to 5.5V
• Input Levels: ±30-V
• Operating current: 8mA
• Can work with 5V and 3.3V logic devices
• TTL/CMOS to RS232 Converter IC
• Can support two conversions at the same time (Dual drivers and Receivers)
• Easy to set up and initialize
• Operating speed: 120kbit/s
• Package: SO-16

Package Includes:-

1 x MAX3232 IC - (SMD Package) - RS-232 Transceivers IC
