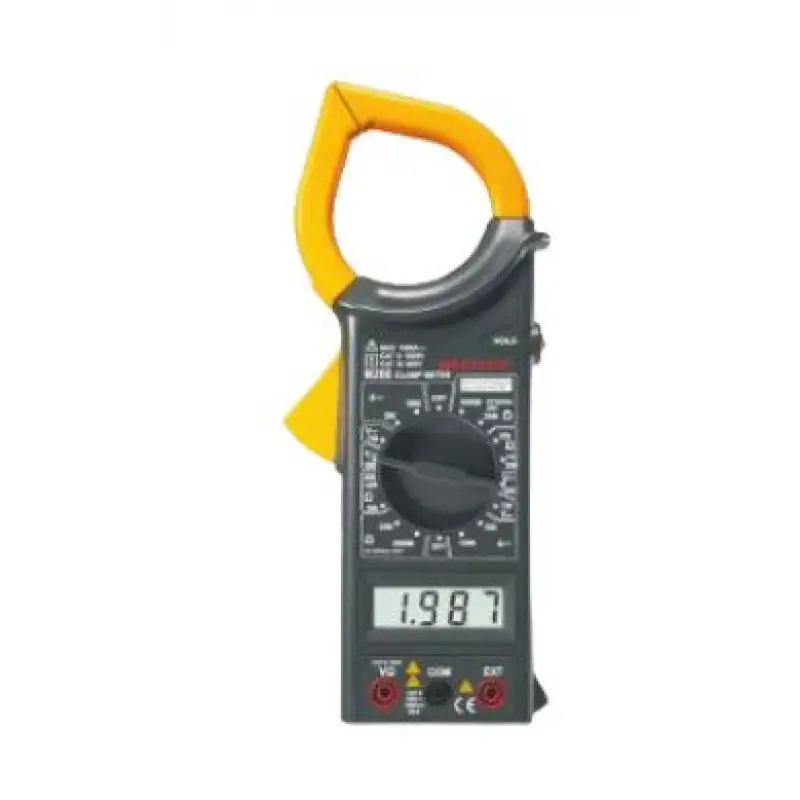

Mastech M266 (Original) Digital AC Clamp Meter

This meter is one of a series portable 3 1/2 digital clamp meter for measuring DC and AC Voltage, AC current, resistance, continuity test and insulation test. Some models also provide frequency or temperature test. Full overload protection. Low battery indication and over-range indication are provide. Following table shows function of the series of clamp meter.

Features :-

• Display 2000 counts
• Jaw Opening Ф50mm
• Continuity Buzzer <100Ω
• Data Hold
• Low Battery Display

Specifications :-

• Display : 3 1/2 digit LCD, with automatic polarity indication
• Brand : Mastech
• Terminals and earth ground : 1000V dc or 750V rms ac (sine)
• Measuring Method : Dual-slope integration A-D converter
• Over range Indication : “1” Figure only in the display
• Polarity indication : “-” displayed for negative polarity
• Operating Temperature : 0°C to 40°C (32°F to 104°F)
• Storage Environment : -10°C to 50°C (14°F to 122°F)
• Power : 9V alkaline or carbon-zinc battery (NEDA 1604 )
• Low Battery Indication :"BAT" to left of display
• Optional Accessories : Thermocouple ( K type )
• Size : 235mm×96mm×46mm
• Weight : 268gm

Package Includes :-

1 X Mastech M266 (Original) Digital AC Clamp Meter

1 X Test leads
