M5 Stack Stamp Pico Mate with Pin Headers

M5 Stack STAMP-PICO Mate features an ultra-compact design with two low-power Xtensa 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. low power consumption. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

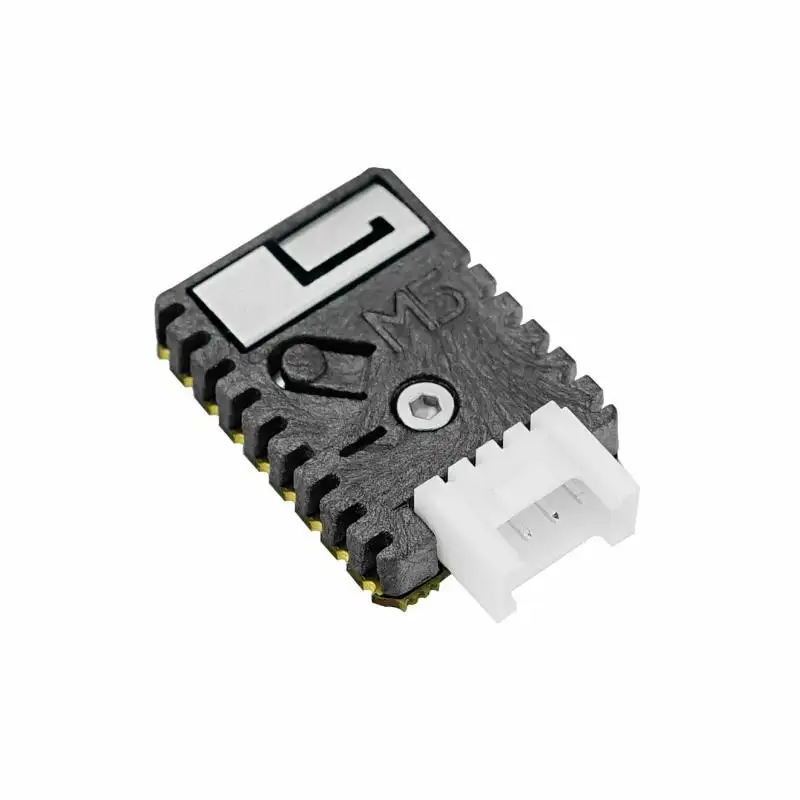

MULTIFORM : 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.

LOW-CODE DEVELOPMENT : STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.

HIGH INTEGRATION : STAMP-PICO contains 5V->3.3V DC/DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication.

STRONG EXPANDABILITY : Easy access to M5Stacks hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.

Product Features:

1. Chip-set: ESP32-PICO-D4 (2.4GHz Wi-Fi and Bluetooth dual mode)
2. Support UIFlow graphical programming
3. Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)Integrated programmable RGB LEDs and buttons
4. Miniature module

Package Includes:

1 x M5Stamp Pico
1 x Sticker
4 x Pin Headers
1 x 90 Grove Connector
1 x Hex Key

Specifications :-

Master Control Resource	ESP32-PICO-D4
Flash	4MB
Input Voltage	5V @ 500mA
Power consumption	Normal stand by: 5V@29mA , WIFI STA mode: 5V@60mA , Bluetooth mode data sending status: 5V@84mA , Deep-sleep mode: [email protected]
Wireless communication distance	AP Mode: 16m, BLE Mode: 110m, Class Bluetooth Mode: 90m
UI	Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
Antenna Type	2.4G 3D Antenna
WiFi	802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz
Bluetooth	Blutooth V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity up to -97 dBm
Module Resource Interface	ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter

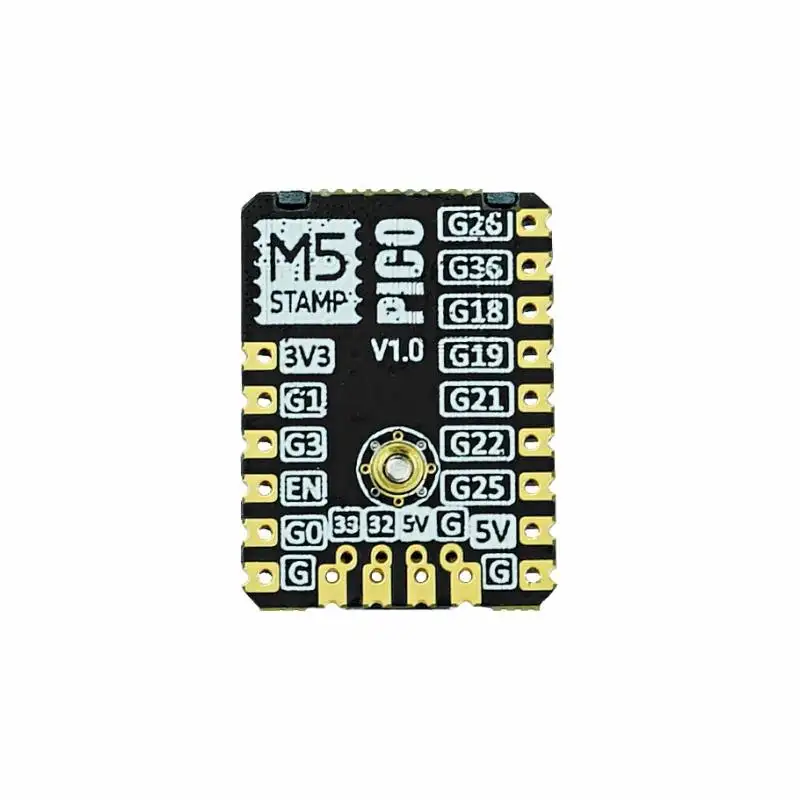

IO interface x12	G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33
IO interface spacing	2.54mm
Operating Temperature	0C to 60C
Net weight (gm)	2.6
Length (mm)	18
Width (mm)	24
Height (mm)	4.4
Weight (gm)	2.6
