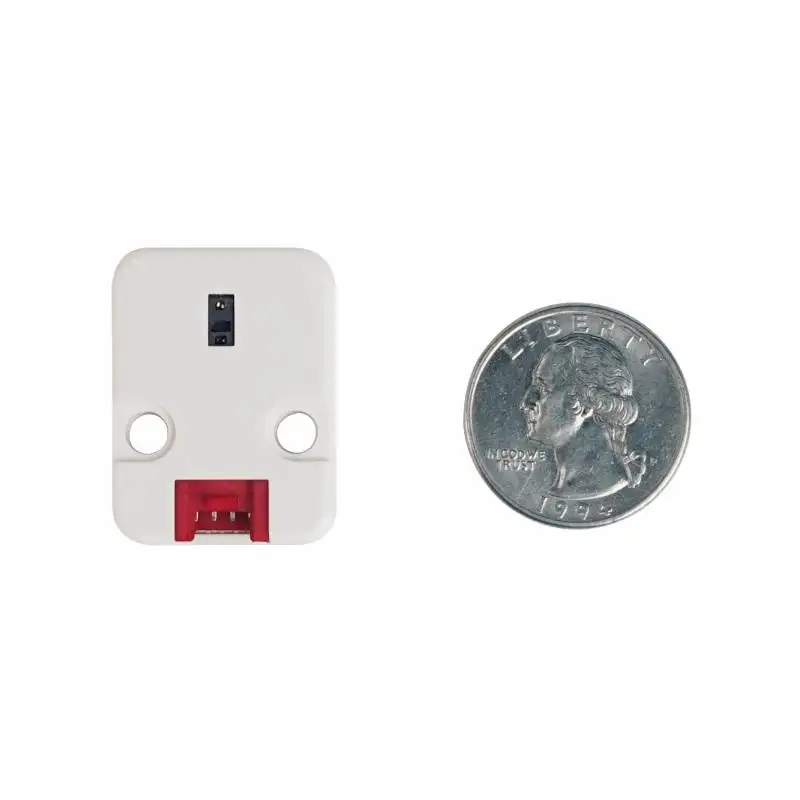

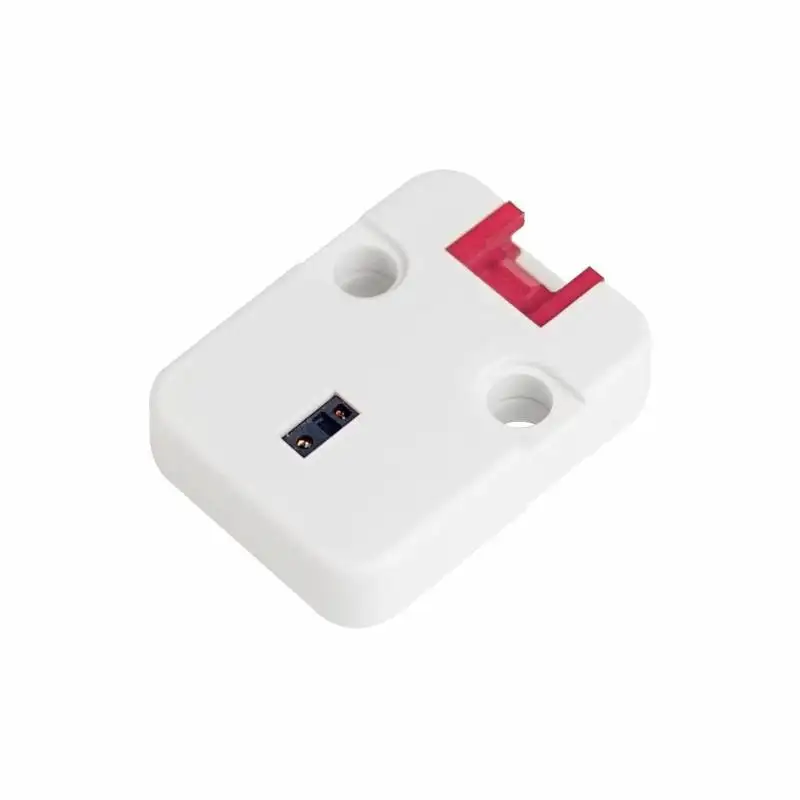

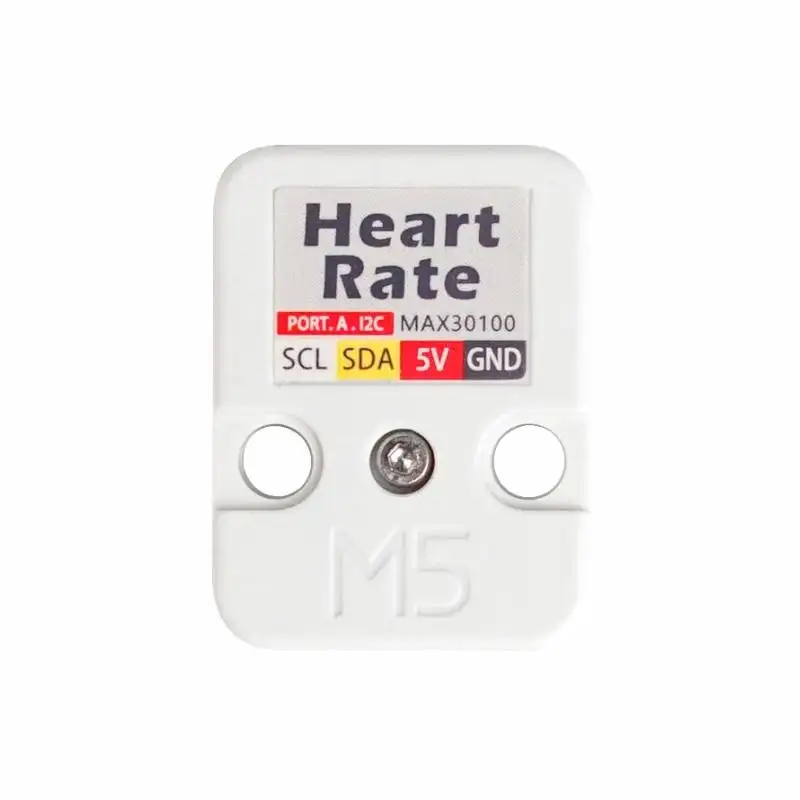

M5 Stack Mini Heart Rate Measurement Unit

This is a Heart Rate Sensor Module from M5 Stack is based on MAX30100, which is an integrated pulse oximetry and heart rate monitor sensor solution.MAX30100 is a complete pulse oximetry and heartrate sensor system solution designed for the demanding requirements of wearable devices. The MAX30100 provides a very small total solution size without sacrificing optical or electrical performance. Minimal external hardware components are needed for integration into a wearable device.

Applications:

1. Wearable Devices
2. Fitness Assistant Devices
3. Medical Monitoring Devices

Features:

1. Programmable Sample Rate and LED Current for Power Savings
2. Ultra-Low Shutdown Current (0.7A, typ)
3. Advanced Functionality Improves Measurement Performance
4. High Sample Rate Capability
5. Fast Data Output Capability
6. GROVE interface
7. Software Develop platform: Arduino
8. Two Lego-compatible holes

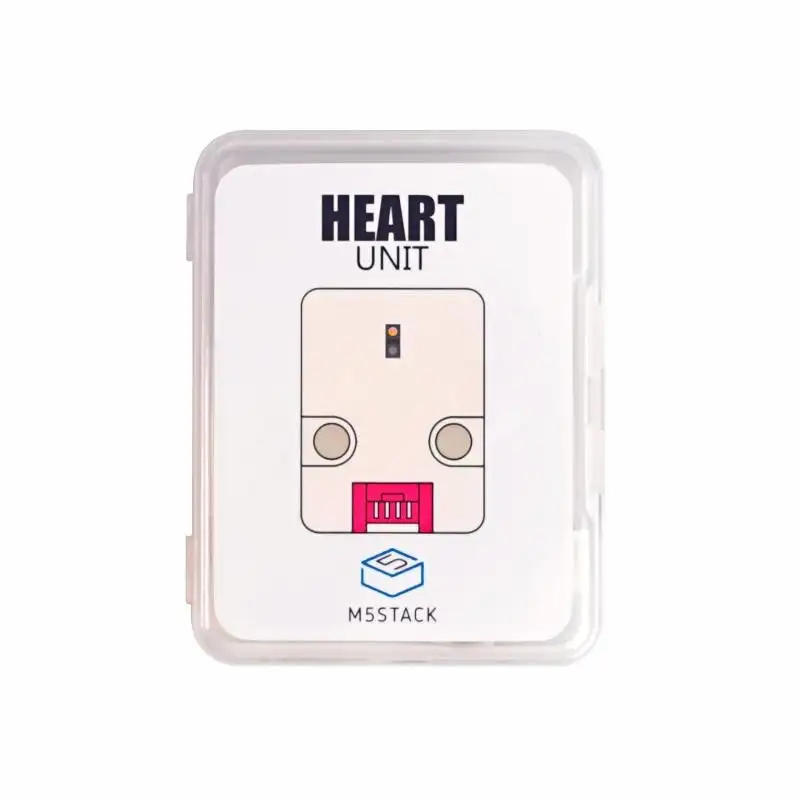

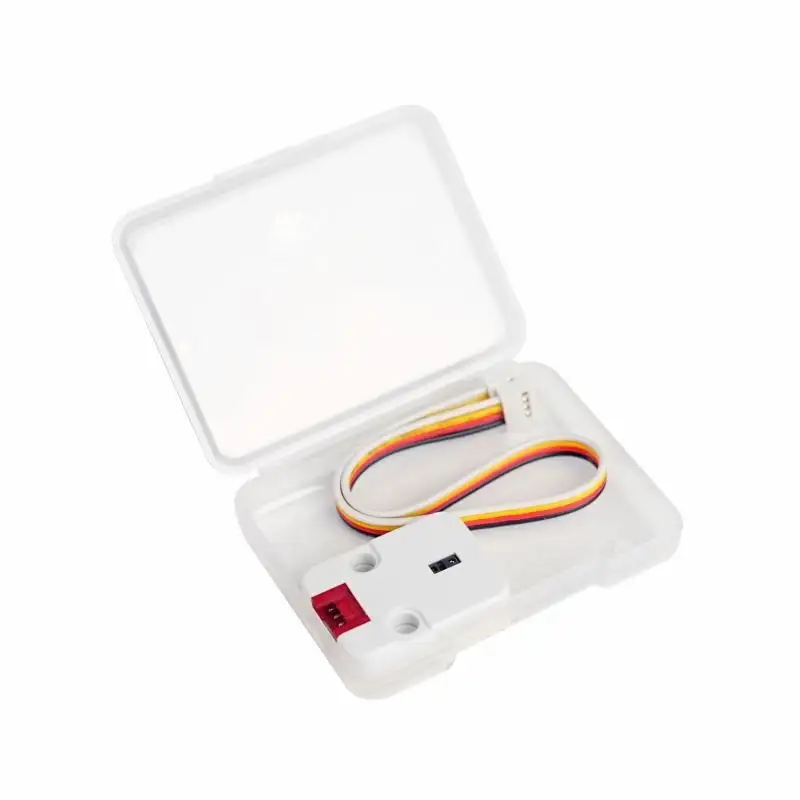

Package Includes:

1x Mini Heart Rate Unit

1x Grove Cable (20 cm)

Specifications :-

Operating Voltage (VDC)	5
Interface	I2C
Cable Length (cm)	20
Onboard Sensor	MAX30100
Length (mm)	32
Width (mm)	24
Height (mm)	8
Weight (gm)	5
