M5 STACK FIRE IoT Development Kit (PSRAM 2.0)

M5 Stack FIRE Kit , which is one of the M5Stack developing kit series, is an upgrade from the Gray kits. Providing a 9-Axis IMU sensor(6-Axis posture acceleration measurement + 3-Axis magnetic measurement), it equips with more hardware resources: 16M Flash + 4M PSRAM, enhanced Base (M5GO Base and M5GO CHG Base), larger battery, etc. For those developers who ask for hardware performance, Fire will be a good choice.

With an IMU posture sensor, there are a lot of situations to which you can apply this kit to detecting acceleration, angulation, and trajectory. You can make relative products like sports data collectors, 3D remote gesture controllers, and more base on the above functions.

FIRE is an M5 Core device. Its modular, stackable, scalable, and portable device is powered with an ESP-32 core, which makes it open-source, low cost, full-function, and easy for developers to handle new product development on all stages include circuit design, PCB design, software, mold design, and production.

M5Stack Fire comes with three separable parts. The top part, just like Basic and Gray Kit, has all kinds of processors, chips, sockets, 2.4G antenna, ESP32, power management IC, an LCD screen, and some other interface components. The middle part is called the M5GO base which provides a lithium battery, M-BUS socket, LED bar, and three more GROVE Ports. The bottom part is a charge table, which can be connected to the M5GO base via POGO pins.

If you want to explore the fastest way of IoT prototyping, the M5Stack development board is the perfect solution. Not like others, the M5Stack development board is highly efficient, covered with industrial-grade case and ESP32-based development board. It integrates with Wi-Fi & Bluetooth modules and contains a dual-core and 16MB of SPI Flash. Together with 30+ M5Stack stackable modules, 40+ extendable units, and different levels of program language, you can create and verify your IoT product in a very short time.

Supportive development platforms and programming languages: Arduino, Blockly language with UIFlow, Micropython. Regardless of what level of programming skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productization.

If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade out of ESP8266. In comparison, ESP32 has more GPIOs, more analog inputs, and two analog outputs, multiple extra peripherals( like a spare UART ). Official developing platform ESP-IDF has transplanted with FreeRTOS. With dual-core and real-time OS, you can get more organized code and much high-speed processor.

Applications:

1. Internet of things terminal controller
2. Stem education product
3. DIY creation

Note: The GPIO 16 / 17 in Fire is connected to the PSRAM by default, so when you connect or stack other function modules, you need to avoid conflicts with these two pins to prevent the device from working improperly and causing instability.

Features:

1. ESP32-based
2. Speaker, 3 Buttons, LCD(320*240)
3. TF card slot (16G Maximum size)
4. Battery Socket & Lipo Battery
5. Extendable Pins & Holes
6. M-Bus Socket & Pins
7. Development Platform UIFlow, MicroPython, Arduino

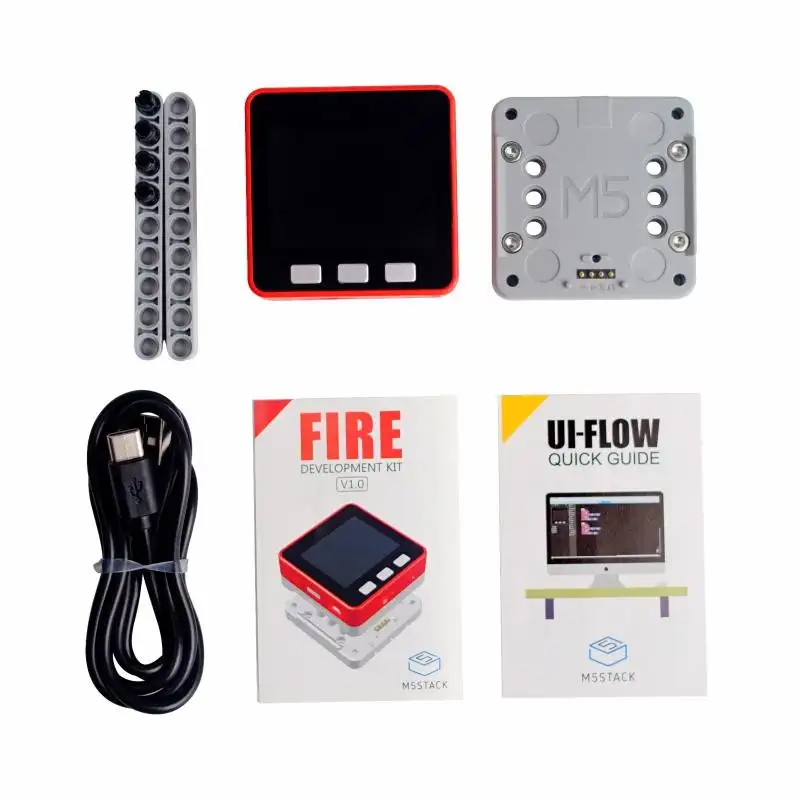

Package Includes:

1. 1x FIRE
2. 1x M5GO CHG Base
3. 2x LEGO block
4. 5x LEGO connector
5. 1x M3 hex wrench
6. 1x Type-C USB(100cm)
7. 1x User Manual

Specifications :-

ESP32	240MHz dual-core 600 DMIPS 520KB SRAM
Flash Memory	16 MB
PSRAM	4MB
Speaker	1W-0928
Input Voltage (V)	5V @ 500mA
MEMS	BMM150 + MPU6886
Battery Input	500 mAh @ 3.7V
Antenna	2.4G 3D Antenna
Operating Temperature Range (C)	0 to 40
Length (mm)	54
Width (mm)	54
Height (mm)	30.5
Weight (gm)	62
