M5 Stack BUS Module

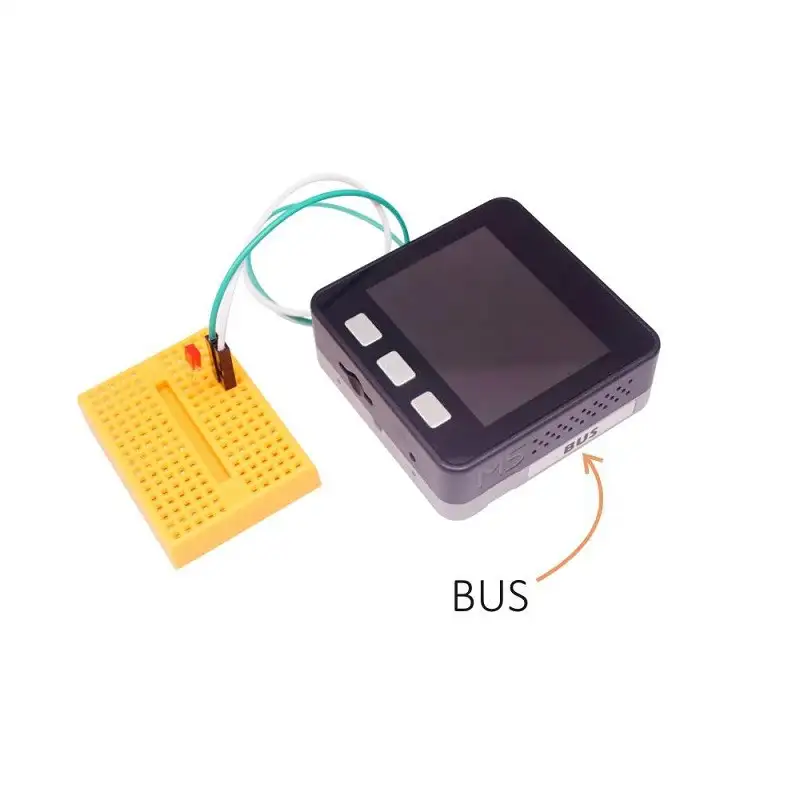

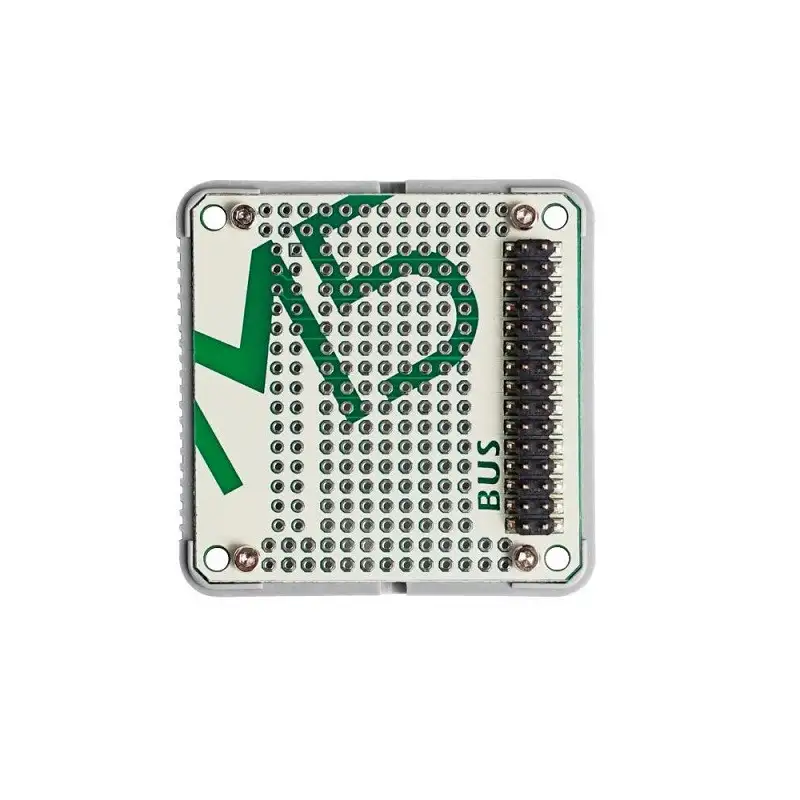

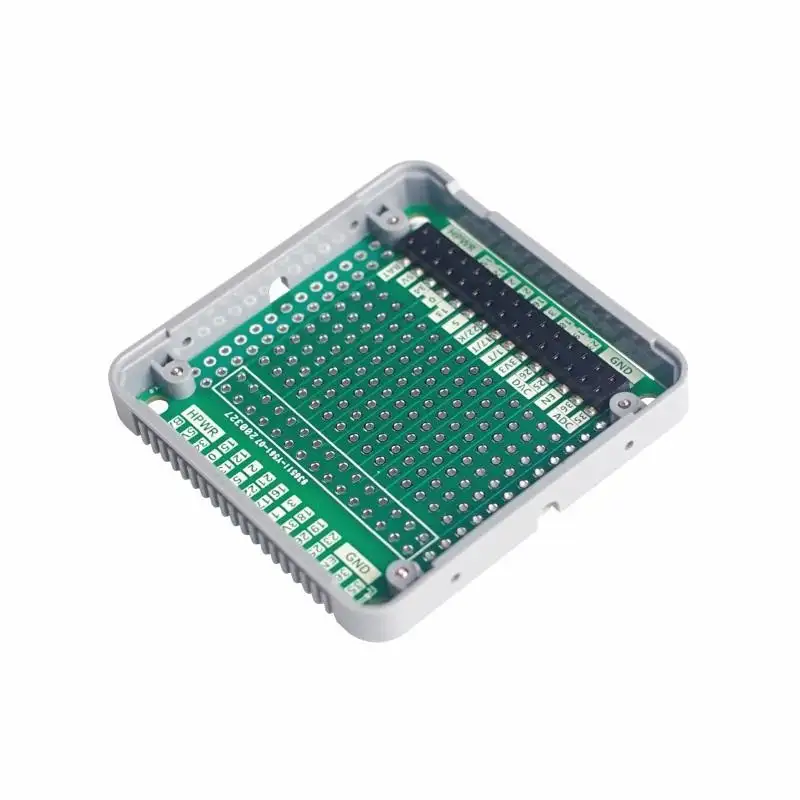

BUS Module allows you to add your own circuit design on the Universal prototype per board and interact with the M5 core via M-BUS.

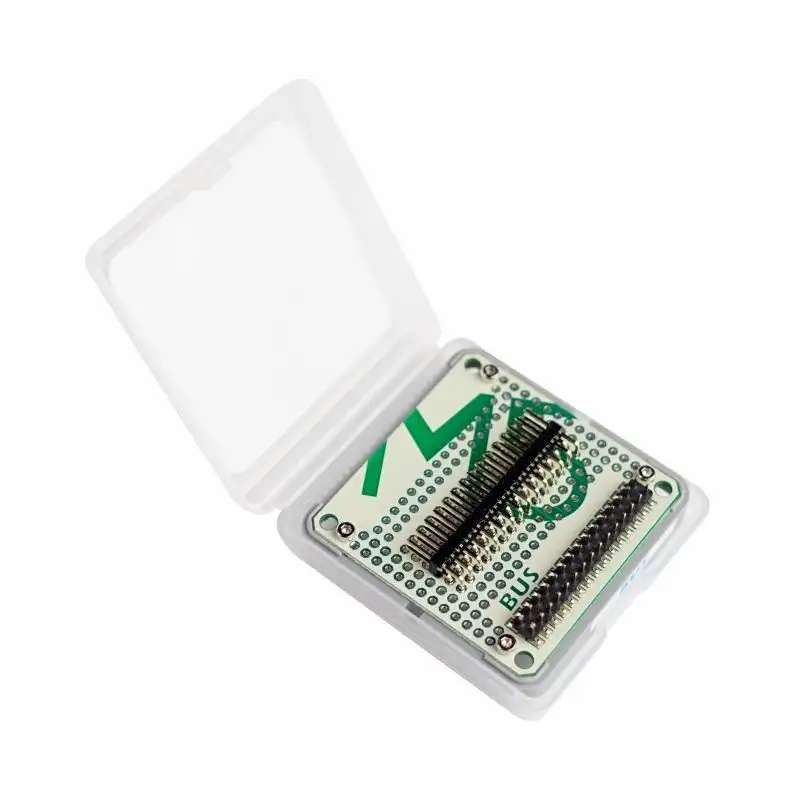

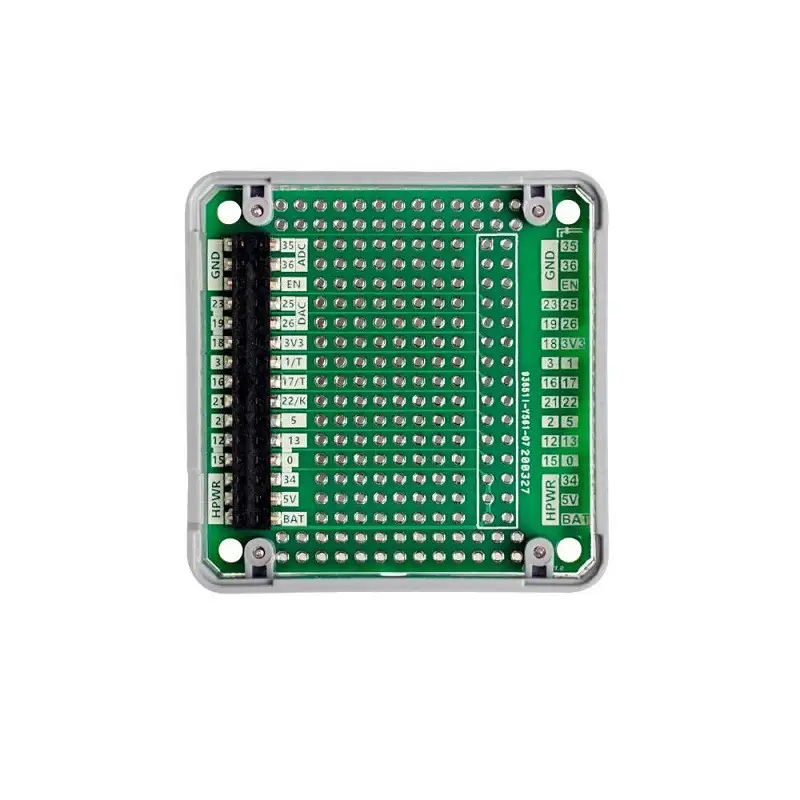

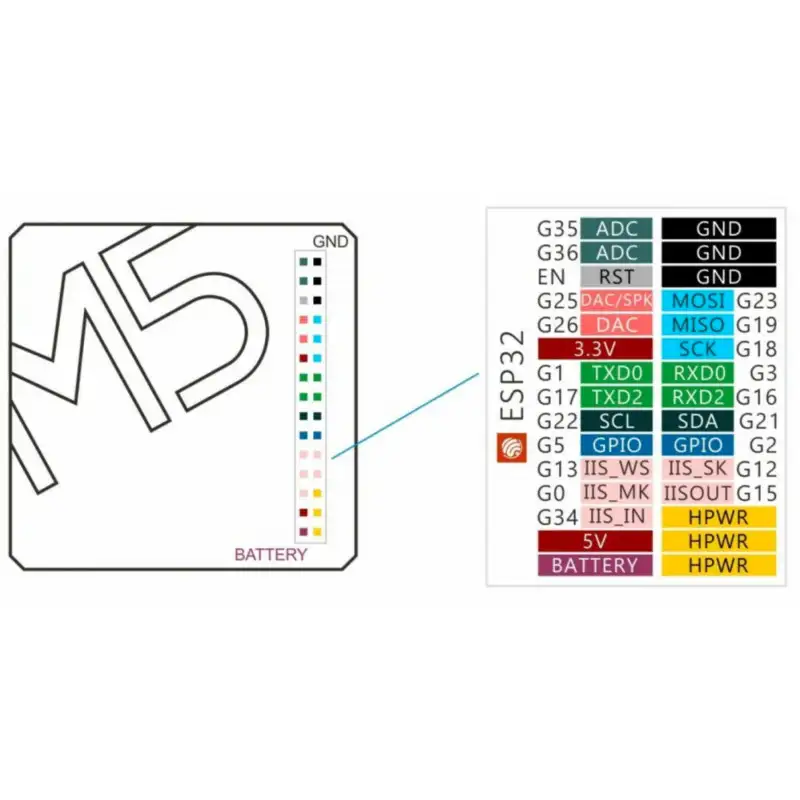

Just like other M5STACK modules, BUS is able to connect with other layers through M-BUS, while in this module, weve extended the M_BUS pin to pin to the other side of the board. You might need to cut off the fence on the side to be able to DuPont out the pins. weve included a 2*15 90 degrees pin set in the package.

Features:

1. High-Quality Construction
2. Hole Size: 0.039 1mm (CNC Drilled)
3. Hole Pitch: 0.1 in (2.54 mm)
4. Entire Hole Quantity: 200 Holes

Package Includes:

1 x M5 Stack BUS Module

Specifications :-

Compatible With	M5 Core
Number of holes	200
Length (mm)	54
Width (mm)	54
Height (mm)	13
Weight (gm)	13
Shipment Weight	0.017 kg
Shipment Dimensions	7 6 2 cm
