M5 STACK BALA-C ESP32 Development Mini Self-Balancing Car

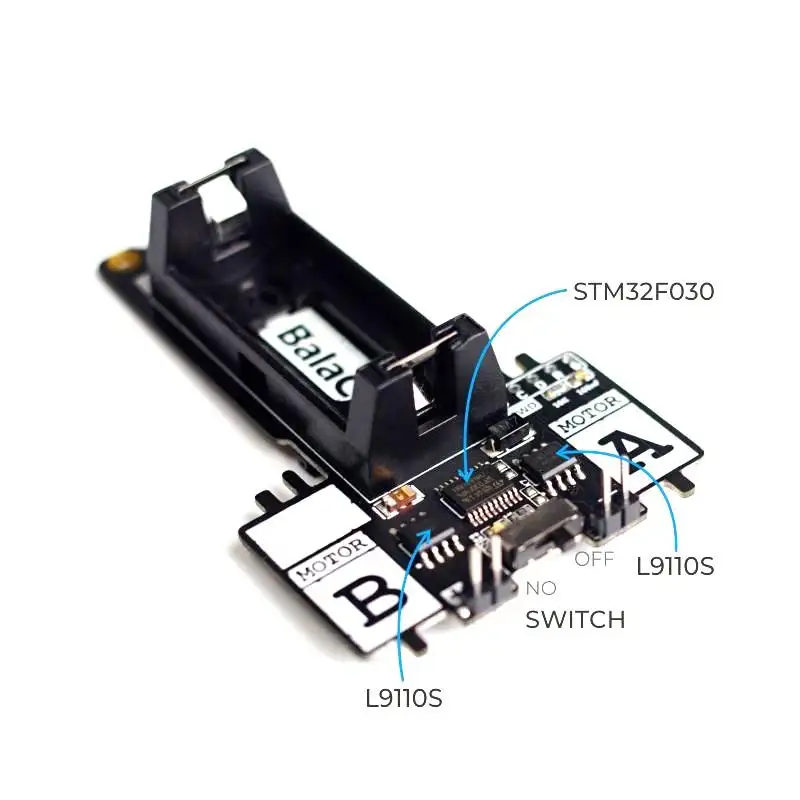

BALA-C is a DIY dual-wheel balancing car kit. BALA-C uses the STM32 series chip, two motor driver ICs, and is also equipped with a rechargeable replaceable battery. It incorporates a lightweight design with 360 servos. Its possible to use the UIFlow graphic interface to program the balancing car.

An M5StickC is included in the package. The BalaC maintains its balance with the help of mpu6886. The real-time compensation of the servos is controlled by calculating the offset value to achieve the purpose of balancing. A LEGO-compatible design allows you to change different tires. If you want to learn about PID or need an interesting programming toy product, BALA-C will be a good choice.

F eatures:

1. Based on ESP32 + STM32
2. Personality DIY
3. Detachable Design
4. Two-wheel Drive
5. Replaceable battery
6. Program PlatformUIFlow, MicroPython, Arduino

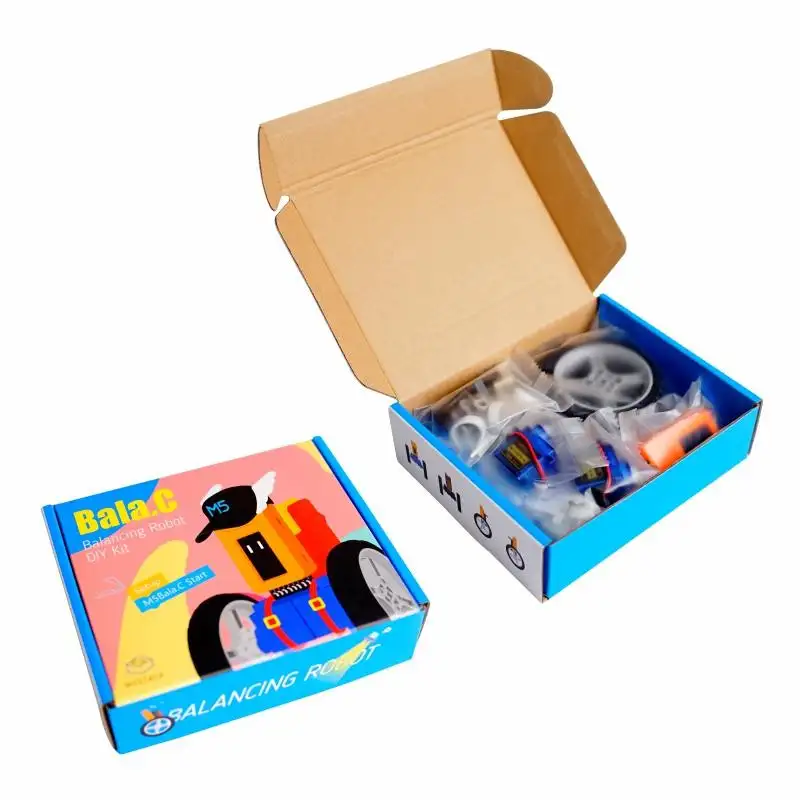

Package Includes:

1. 1x M5StickC
2. 1x BalaC Base
3. 2x Wheels
4. 2x Wheel Connectors
5. 2x 9G Servos
6. 2x Elastics
7. 2x Screws
8. 1x Hex key
9. 1x 16340 Battery
10. 1x 10cm Type-C Cable

Specifications :-

ESP32-Pico-D4	240MHz dual-core, 600 DMIPS, 520KB SRAM
Servo	Rotation angle: 360 ; no load speed: 0.12 seconds / 60 degrees (4.8V)
Driver	L9110S
Slave	STM32F030F4P6
Communication protocol	I2C: 0x38
Battery	16340, 3.7V, 700mAh, Li-ions rechargeable
Length (mm)	30
Width (mm)	100
Height (mm)	105
Weight (gm)	162
