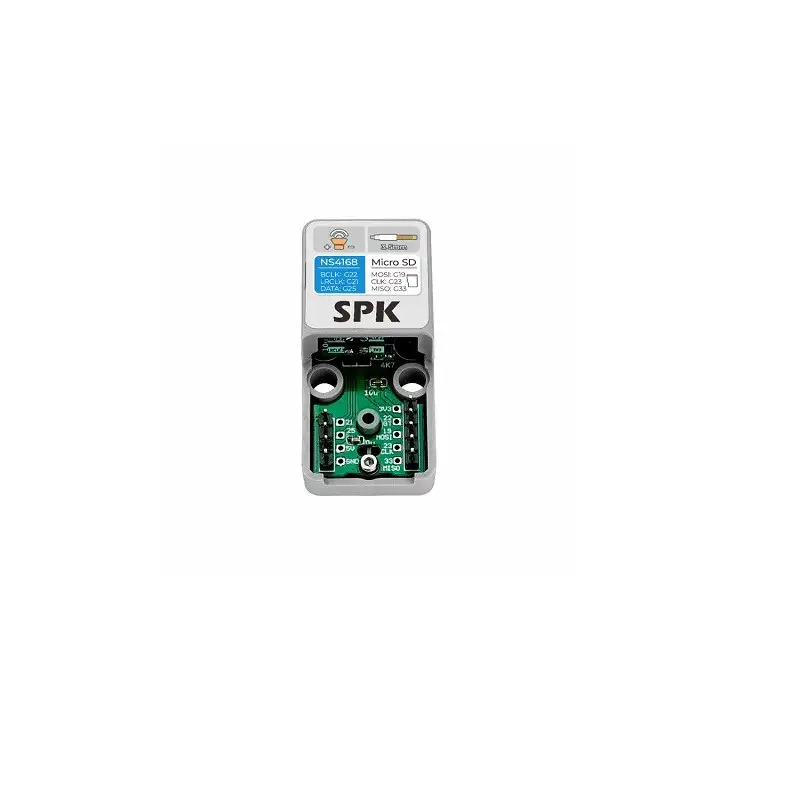

M5 Stack ATOM Speaker Kit (NS4168)

ATOM SPKis an audio player that adapts to the ATOM master control, with built-in I2S digital audio interface power amplifier chip NS4168, with automatic sampling rate detection, adaptive functions, and can effectively prevent audio signal distortion. Integrated TFCard card slot is convenient for saving and reading audio files. Provide 3.5mm headphone jack and external speaker interface, users can play audio through external headphones or speakers.

Application:

1. Audio player
2. Bluetooth audio
3. WiFi speaker

Features:

1. Power amplifier chip NS4168
2. I2S serial digital audio input interface
3. Support a wide range of sampling rates: 8kHz~96kHz
4. Automatic sampling rate detection, adaptive function
5. TFCard slot
6. Headphone jack
7. Speaker interface

Package includes:

1 x M5 Stack ATOM Speaker Kit (NS4168)

Specifications :-

Power amplifier chip	NS4168
Amplifier output power	1W(VDD=3.3V)
Headphone jack	3.5mm
Speaker interface	1.25mm-2P
Length (mm)	48
Width (mm)	24
Height (mm)	18
Weight (gm)	19
