M5 STACK ATOM 2D/1D Barcode Scanner Kit

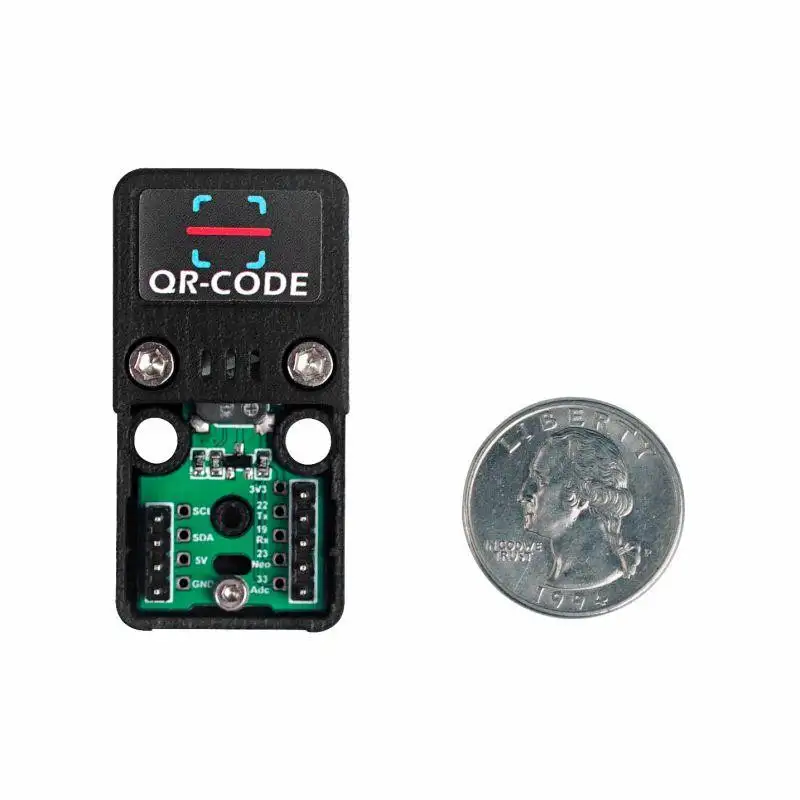

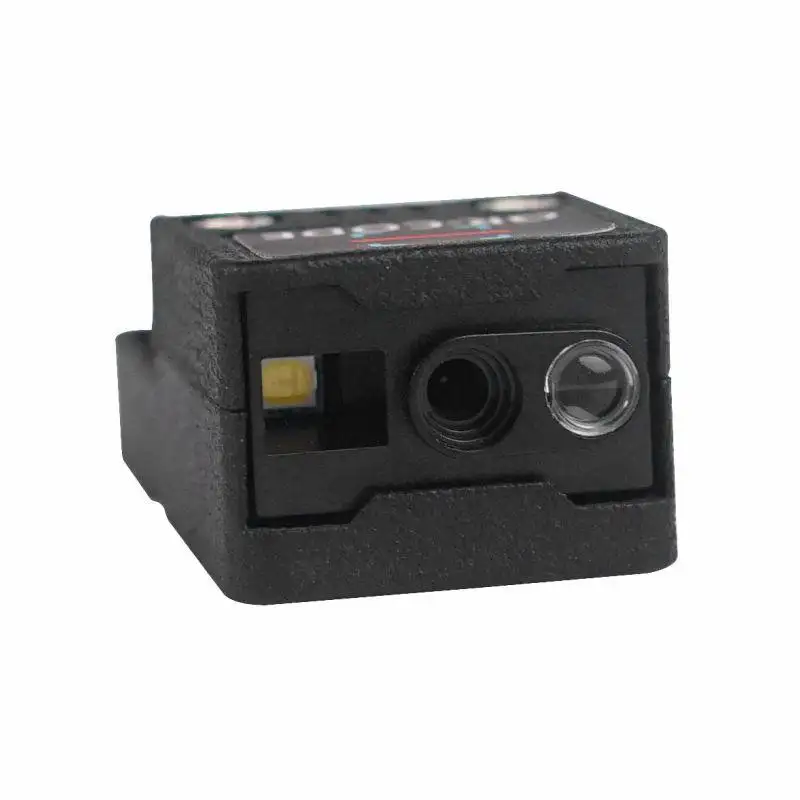

ATOM QR-CODE is an M5Atom compatible module for reading Barcode/QR-codes. The product includes two parts: an M5Atom Lite unit and a code scanning module. It supports 6 kinds of 2D codes and 19 kinds of 1D codes. It has a built-in lighting LED, which can easily identify codes even in a dark environment. The green LED is convenient for focusing and aiming. The effective recognition accuracy of high-resolution CMOS imaging reaches 5mil.

In addition, it has a variety of reading modes, which can be adjusted to automatic continuous trigger or manual trigger as required. The module has its own buzzer, which has different prompt sound effects in different states. The module also supports adding custom prefix/suffix to the data, defining multi-national keyboards, data editing, and many other functions, it uses TTL-232 for communication, and can easily use the serial port for data transmission.

It can be easily used in Arduino or UIFlow programming, You can send the scanned data to the receiver for processing via wired or wireless connection through M5Atom Lite.

Applications:

1. Cash register scanning
2. Barcode/QR-code input device
3. Warehouse inventory

Features:

1. Compatible with Atom Matrix/Atom Lite
2. Built-in lighting and focus LED
3. Support Bluetooth and WiFi Based on esp32
4. Support Arduino Micropython UIFlow
5. UART/TTL communication
6. Manual and automatic scanning mode
7. Light and sound reminders
8. Multiple output formats
9. Data can be pre-edited and hidden
10. Rich custom instructions
11. Support RAW / GBK / Unicode
12. 2DQR Code,Mrico QR, Data Matrix, PDF417,Mrico PDF417Aztec
13. 1DEAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,Code 11,Industrial 25Standard 25,Plessey, Matrix 2 of 5

Package Includes:

1. 1x ATOM QR-CODE
2. 1x M5Atom Lite
3. 1x Hex Key

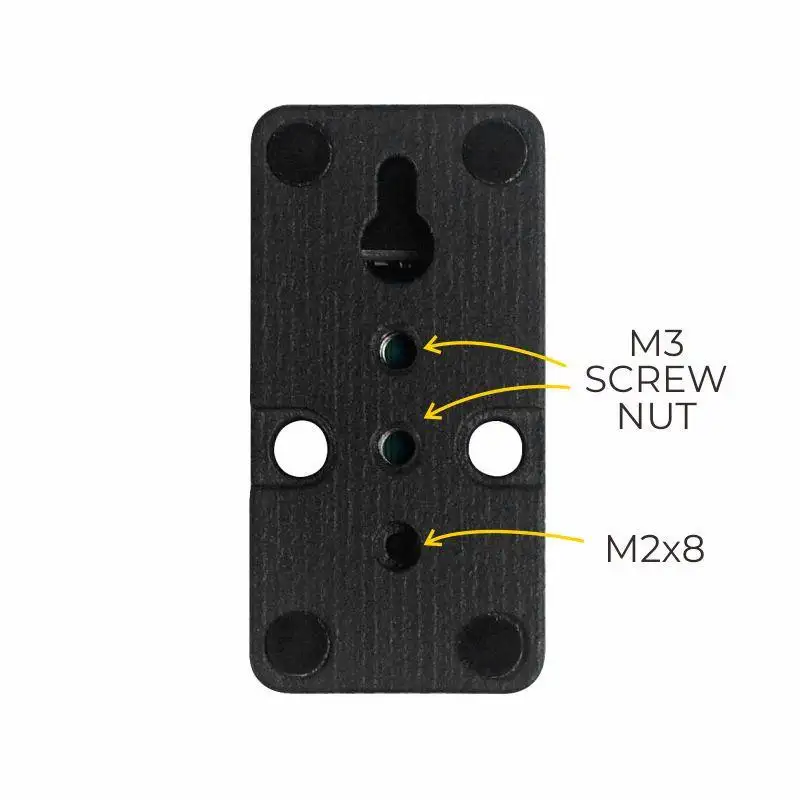

4. 1x M2*8 Hexagon socket cup head machine screw
5. 1x TYPE-C USB Cable20cm)

Specifications :-

Sensor	640480 CMOS
Recognition Reading Accuracy	5mil
Contrast Ratio	25%
Scanning angle	Rotate 360 Pitch 55 Yaw 55
FOV	Horizontal 34Vertical 28
Communication Interface	UART/TTL
Input Voltage (V)	3.3
Rated Current (mA)	170
Length (mm)	48
Width (mm)	24
Height (mm)	18
Weight (gm)	17
