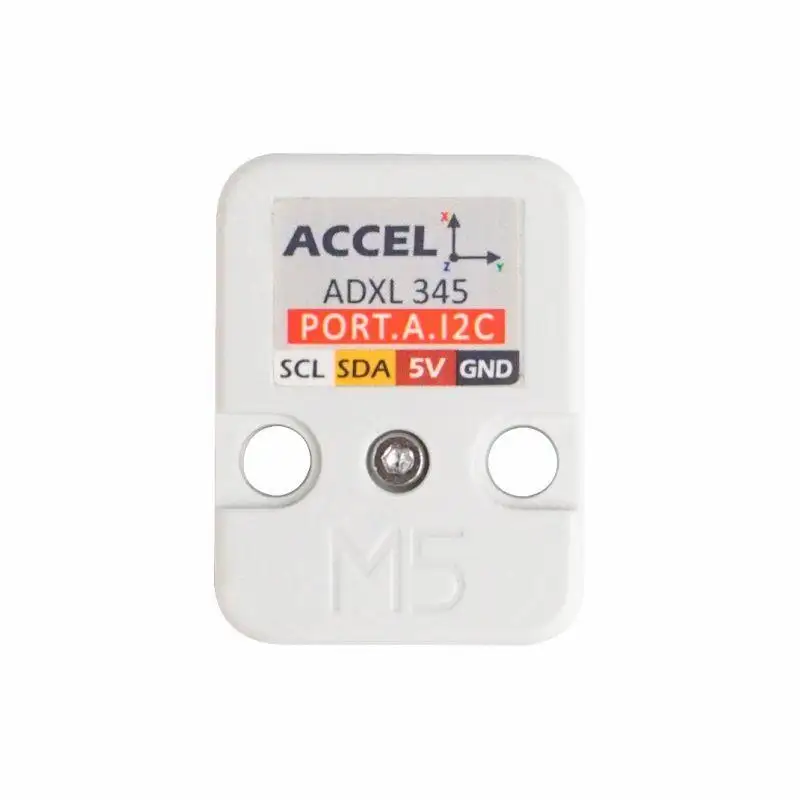

M5 Stack 3-Axis Digital Accelerometer Unit

ACCEL is a motion sensor Unit. Integrated with ADXL 345, ACC is able to obtain 3- axis of Acceleration. ADXL 345 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to 16 g. Digital output data is formatted as a 16-bit twos complement and is accessible through the I2C digital interface. In this Unit, we used the I2C series interface.

What is an accelerometer?
An accelerometer is an electromechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic caused by moving or vibrating the accelerometer.

What are accelerometers useful for?
By measuring the amount of static acceleration due to gravity, you can find out the angle the device is tilted at with respect to the earth. By sensing the amount of dynamic acceleration, you can analyze the way the device is moving. At first, measuring tilt and acceleration doesnt seem all that exciting. However, engineers have come up with many ways to make really useful products with them.

Applications:

1. Building and structural monitoring
2. Navigation
3. Orientation sensing

Features:

1. Ultralow power
2. Single tap/double-tap detection
3. Activity/inactivity monitoring
4. Free-fall detection
5. I2C digital interfaces
6. Wide temperature range

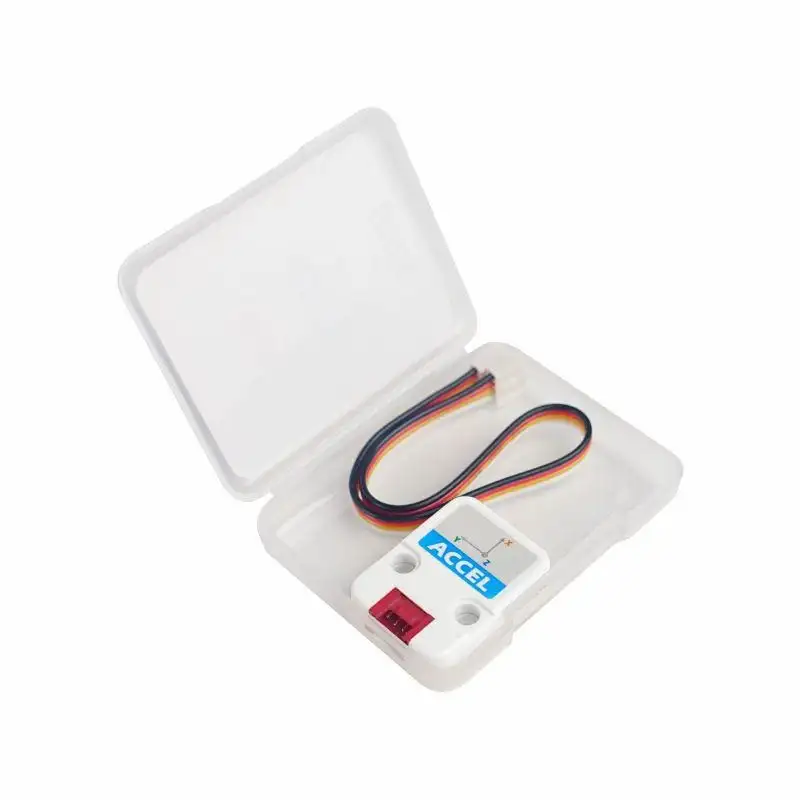

Package Includes:

1x M5 Stack 3-Axis Digital Accelerometer Unit

1x GROVE Cable

Specifications :-

Interface	I2C
Measurement Range	16g
Resolution	The resolution of 10-bit fixed resolution increases with the increase of g range, up to 13 bits at 16 g
Cable Length (cm)	20
Operating Voltage(VDC)	5
Operating Current	23uA
Operating Temperature (C)	-40 to 85
Length (mm)	32
Width (mm)	24
Height (mm)	8
Weight (gm)	4
