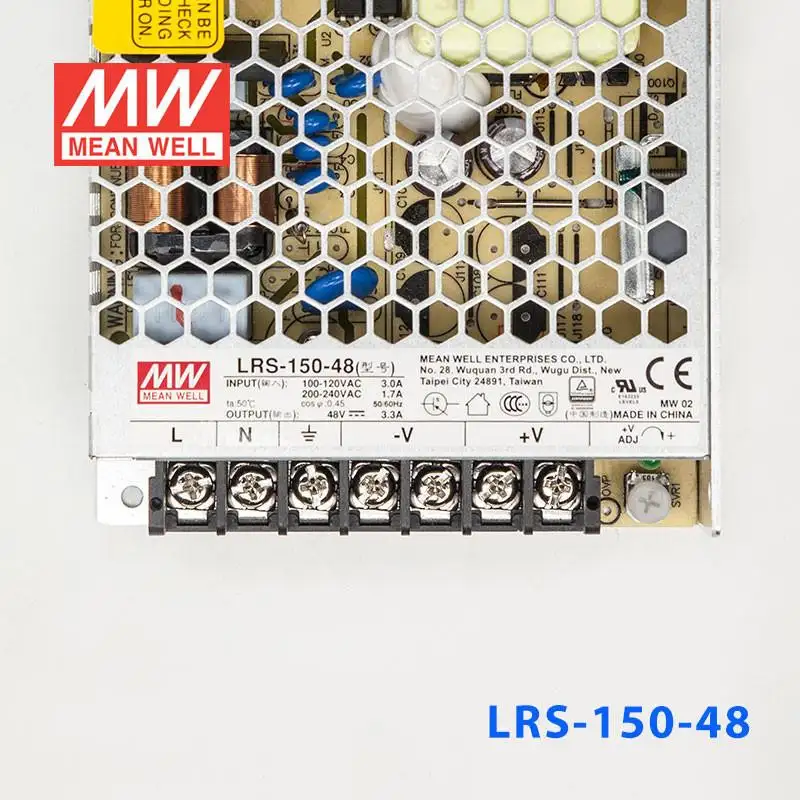

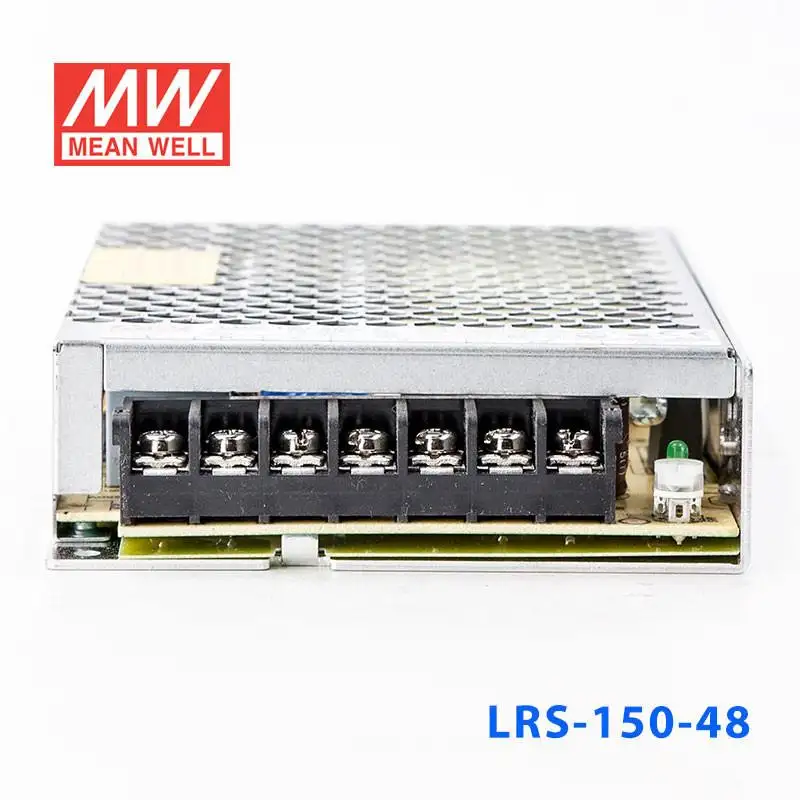

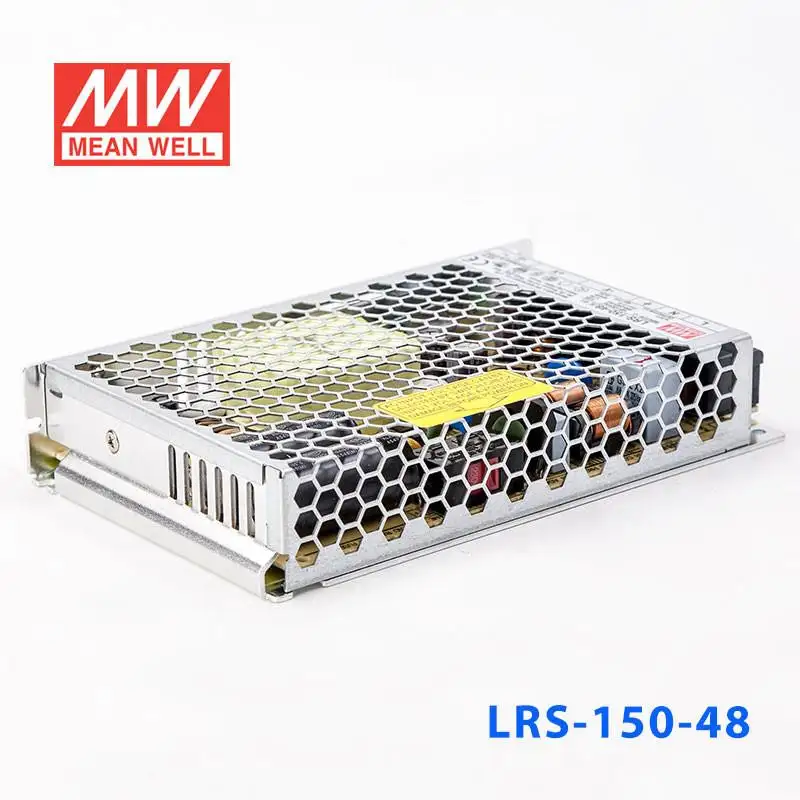

LRS-150-48 Mean Well SMPS - 48V 3.3A - 158.4W Metal Power Supply

In Stock

Brand: Generic | SKU: 3794168

₹ 2,124.00

~~₹ 3,433.00~~

Save 38%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1 Shipped by 2 to 3 Weeks

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Key Specifications:-

Features:-

No load power consumption <0.5W for 150W;Â <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections:Â Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W);Â forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) andÂ IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty

Specifications:-

AC input voltage range	115 / 230VAC by switch
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	Â±10% by potentiometer
Overload protection Range	110%~140%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC
Working temperature	-30~+70Â°C (refer to output derating curve)
Safety standards	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection	7P/9.5mm pitch terminal block
Dimension (LxWxH)	159x 97x 30
