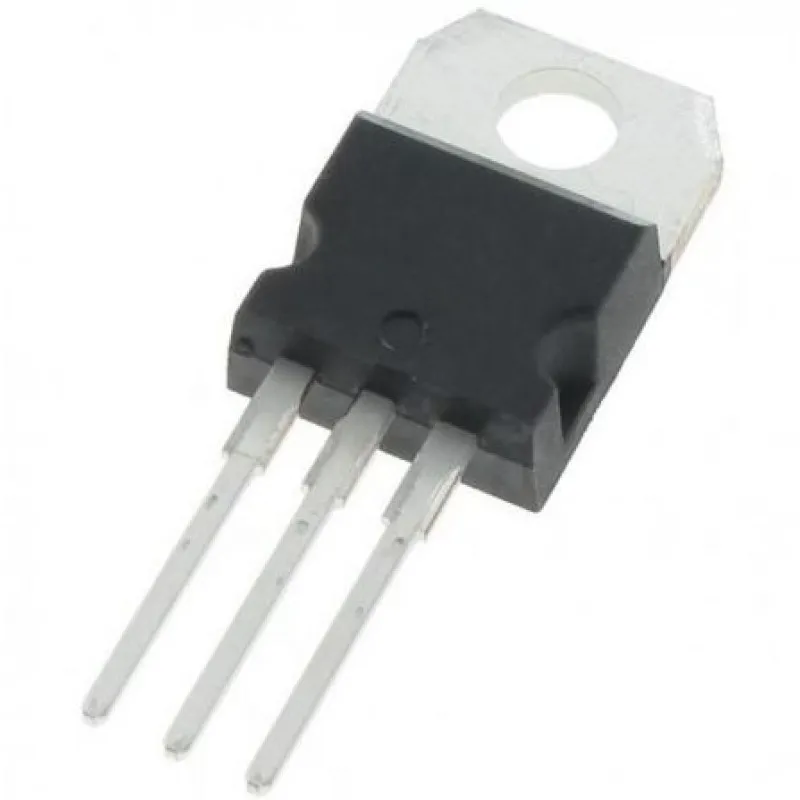

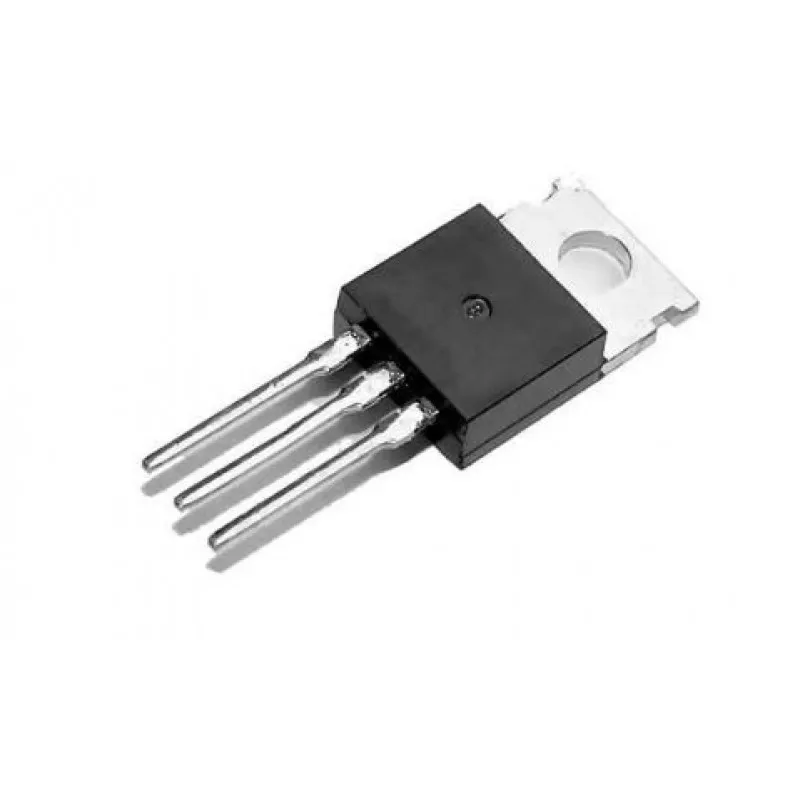

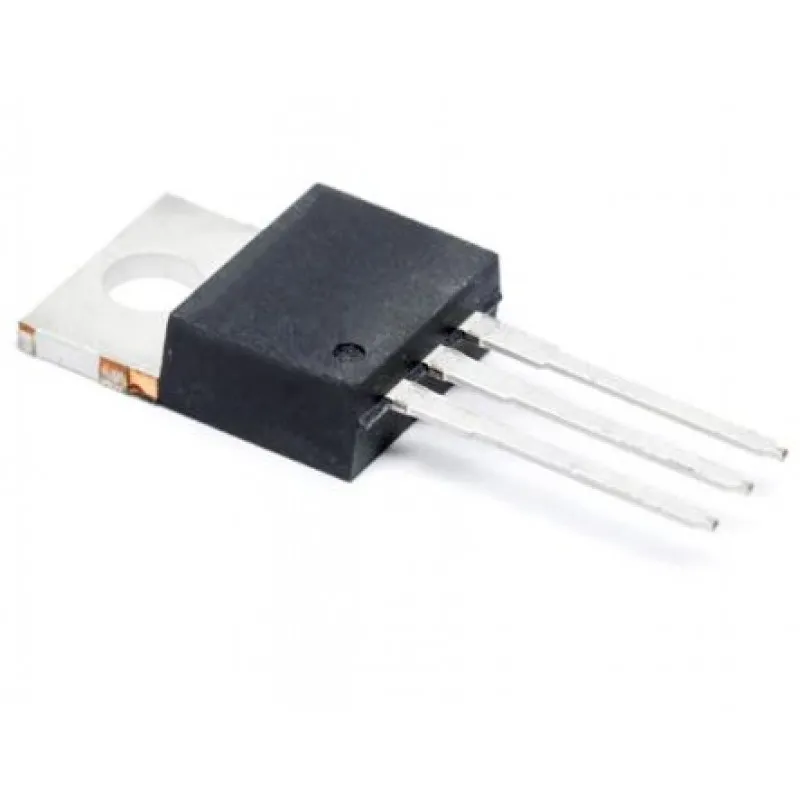

IRFBE30 MOSFET - 800V 4.1A N-Channel Power MOSFET TO-220 Package

In Stock

Brand: Generic | SKU: 8037788

₹ 128.00

~~₹ 233.00~~

Save 45%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

IRFBE30 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Features:-

â€¢ Dynamic dV/dt rating

â€¢ Repetitive avalanche rated

â€¢ Fast switching

â€¢ Ease of paralleling

â€¢ Simple Drive Requirements

â€¢ Compliant to RoHS Directive 2002/95/EC

Detailed Specifications:-

Number of Channels	1 Channel
Transistor Polarity	N-Channel
Drain-Source Breakdown Voltage (Vds)	800V
Continuous Drain Current (Id)	4.1A
Drain-Source Resistance (Rds On)	3Ohms
Gate-Source Voltage (Vgs)	20V
Gate Charge (Qg)	78 nC
Operating Temperature Range	-55 - 150Â°C
Power Dissipation (Pd)	125W
