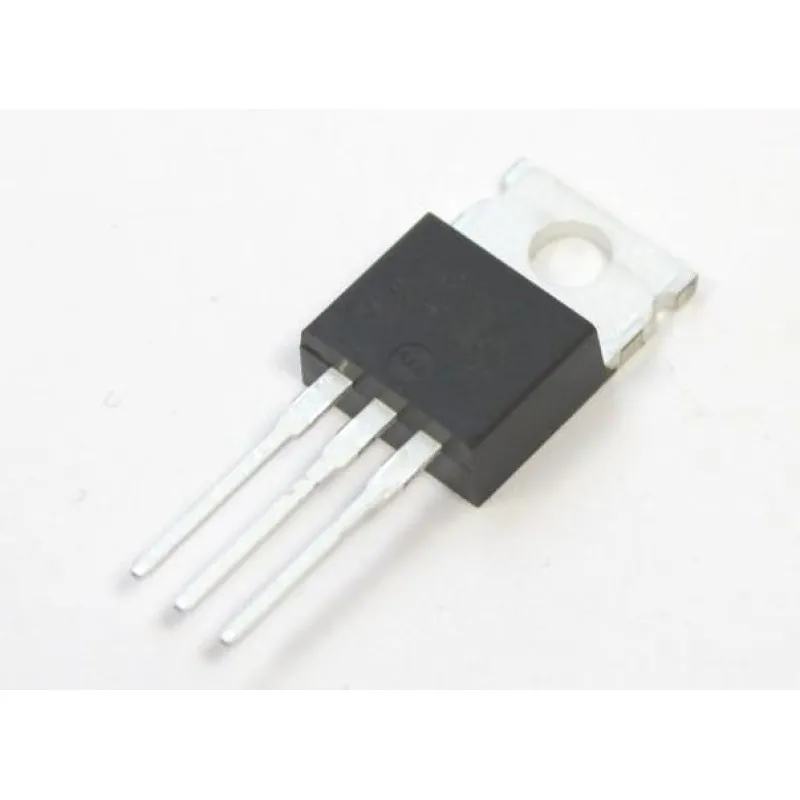

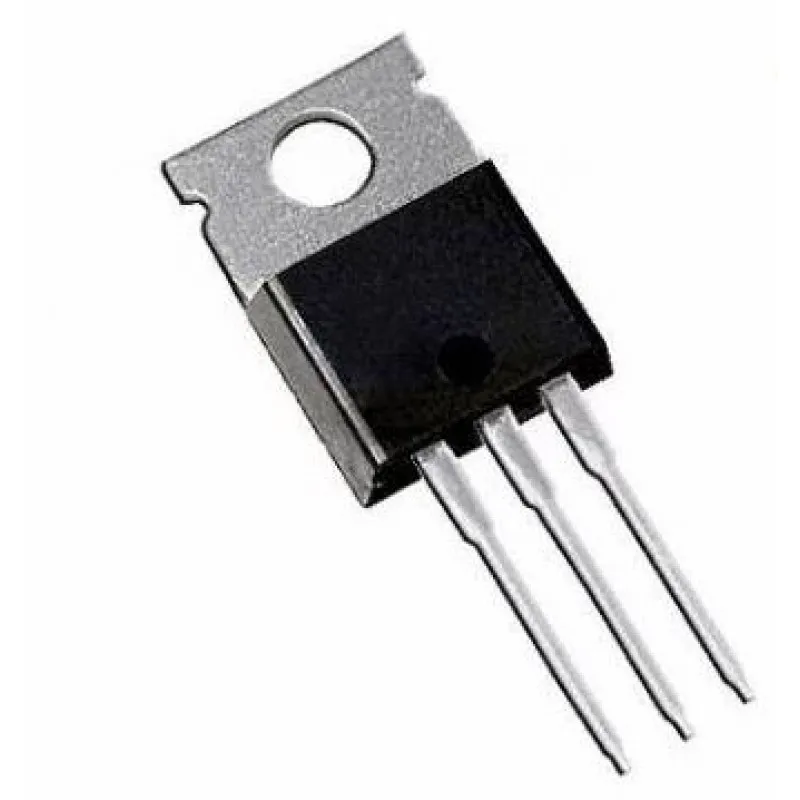

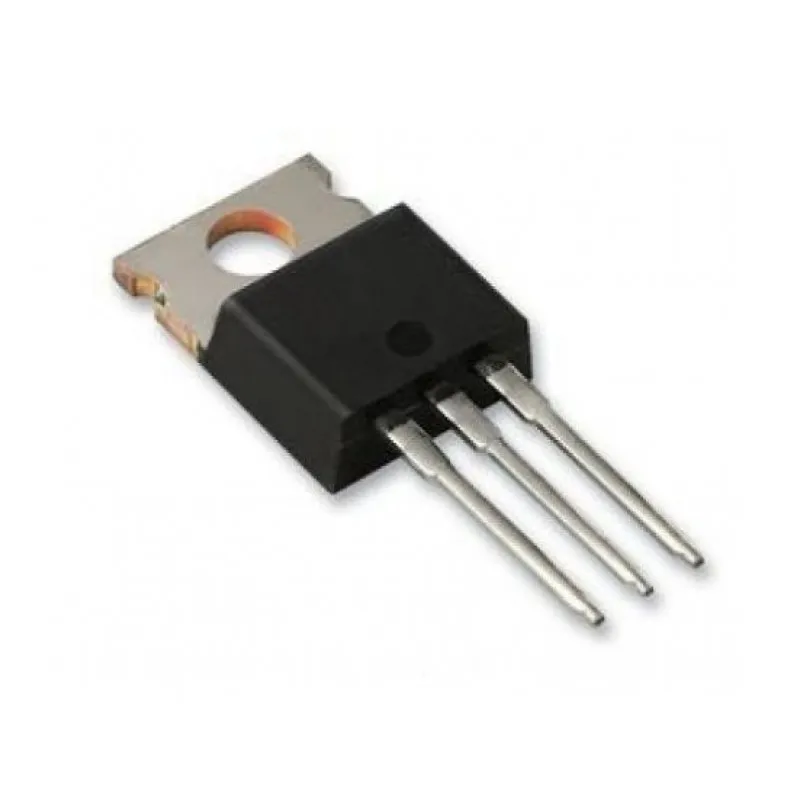

IRF610 MOSFET - 200V 3.3A N-Channel Power MOSFET TO-220 Package

In Stock

Brand: Generic | SKU: 2173455

₹ 39.00

~~₹ 69.00~~

Save 43%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

IRF610 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W.

Features:-

â€¢ Dynamic dV/dt rating

â€¢ Repetitive avalanche rated

â€¢ Fast switching

â€¢ Ease of paralleling

â€¢ Simple drive requirements

â€¢ Compliant to RoHS directive 2002/95/EC

Detailed Specifications:-

Number of Channels	1 Channel
Transistor Polarity	N-Channel
Drain-Source Breakdown Voltage (Vds)	200V
Continuous Drain Current (Id)	3.3A
Drain-Source Resistance (Rds On)	1.5Ohms
Gate-Source Voltage (Vgs)	20V
Gate Charge (Qg)	8.2 nC
Operating Temperature Range	-55 - 150Â°C
Power Dissipation (Pd)	36W
