IMAX B6AC Charger/Discharger 1-6 Cells - Clone Model

The iMAX-B6AC can charge and discharge NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries with individual cell balancing for up to 6 lithium cells. It features a built-in adapter that can be powered from 100240VAC, or it can alternatively be powered via an 1118VDC input. With its versatile charging capabilities and advanced features like input power monitoring, delta-peak sensitivity, cyclic charging and discharging, and more, the iMAX-B6AC is a great addition to the workbench of any RC, DIY, or robot enthusiast.

Note:

1. This charger has a JST-XH charge plug, which makes it compatible with Zippy, HXT, TURNIGY, and any pack with a JST adapter. This package does not include a JST-XH connector

2. This is not a genuine iMAX B6. It is a copy charger offered at a lower price.

Features:

1. AC 100~240v or 12V DC input
2. The cables come with a fitted fuse.
3. Microprocessor controlled
4. Li-ion, LiPo, and LiFe capable
5. Input voltage monitoring. (Protects car batteries at the field)
6. Battery break-in and cycling feature
7. Data storage (Store up to 5 packs in memory)
8. Internal resistance checker to see pack health
9. Delta-peak sensitivity
10. Individual cell balancing
11. EU Plug to IEC C13 which is used in devices such asac adapters, digital cameras, camcorders, monitors, printers, Direct TV and more!

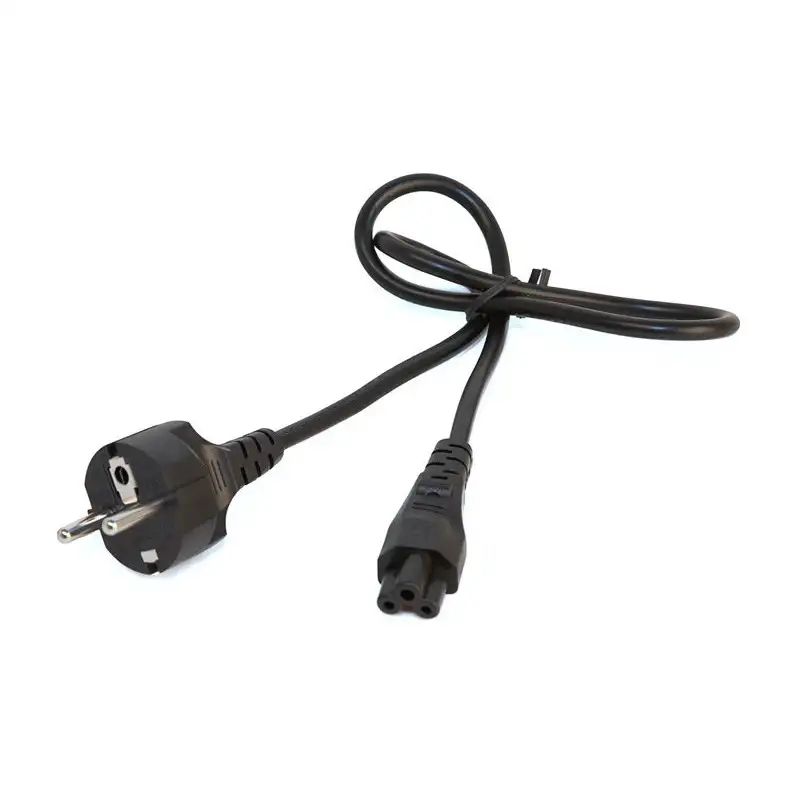

12. Power Supply Cord Details:

    1. Total length: 1 meter.
    2. Voltage : 100 250 VAC
    3. Current : 2.5A Max.
    4. Plug Type: 1.Female End Type: IEC(To Charger)
       2 Male End Type: EU plug (To Power Distribution Board).

Package Includes :

1 x Imax B6 AC Dual Power Battery Charger
1 x 100 250V Power Supply Cord
1 x T plug with banana connector charging cable
1 x DC cable with Alligator Clip charging connector
1 x T plug with Alligator Clip connector charging cable
1 x T plug with Futaba connector charging cable
1 x T plug with JST connector charging cable
1 x English manual

Specifications:

Input Voltage (V AC)	100 ~ 240
DC Input Voltage Range (V)	11 ~ 18
Charge Current Range (A)	0.1 ~ 5
Discharge Current Range (A)	0.1 ~ 1.0
Drain Current for Balancing Li-Po's (mA/Cell)	300
Li-ion/Po cell count	1 ~ 6
NiCd/NiMH cell count	1 ~ 15 Cells
Pb battery voltage	2 ~ 20
Dimensions (mm) LxWxH	133 x 87 x 33
Weight (gm)	624
Power	Discharge: 80w(new version) Charge: 10W(new version)
