ICL8038 High Precision Signal Generator DIY Kit Sine/Triangle/Square/Sawtooth Adjustable Frequency Amplitude

• Supply Voltage: 12V~15V
• Frequency Range: 5Hz~400KHz(Adjustable)
• Duty Cycle Range: 2~95%(Adjustable)
• Low Distortion Sine Wave: 1%
• Low Temperature Drift: 50ppm / °C

Description:

This signal generator DIY kit is professional product to generate sine/triangle/square/forward and reverse sawtooth wave. It's a DIY kit for you to weld and install. It c an output sine/triangle/square/forward and reverse sawtooth waveforms. It supports dual power amplifier without blocking the capacitor to ensure high and low frequency signal distortion.

Specification:

• Supply Voltage: 12V~15V
• Frequency Range: 5Hz~400KHz(Adjustable)
• Duty Cycle Range: 2~95%(Adjustable)
• Low Distortion Sine Wave: 1%
• Low Temperature Drift: 50ppm / °C
• Output Triangular Wave Linearity: 0.1%
• DC Bias Range: -7.5V~7.5V
• Output Amplitude Range: 0.1V~11VPP(operating voltage 12V)

Features:

• Uses ICL8038 and high-speed op amp, higher accuracy.
• Can output sine/triangle/square/forward and reverse sawtooth waveforms. .
• Adjustable frequency and amplitude.
• Frequency adjustment features coarse tuning and fine tuning.
• All are through hole components, easy to install.

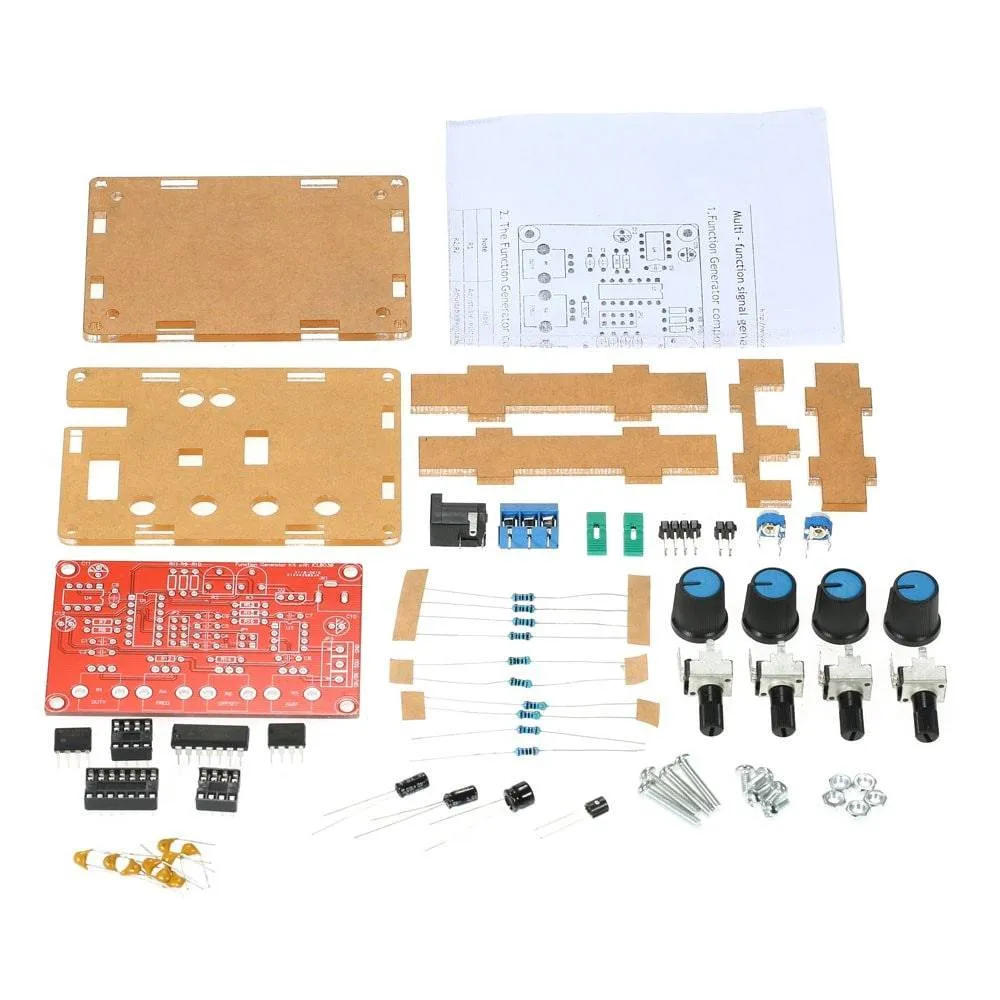

Package Included:

1 x ICL8038 High Precision Signal Generator DIY Kit Sine/Triangle/Square/Sawtooth Adjustable Frequency Amplitude
