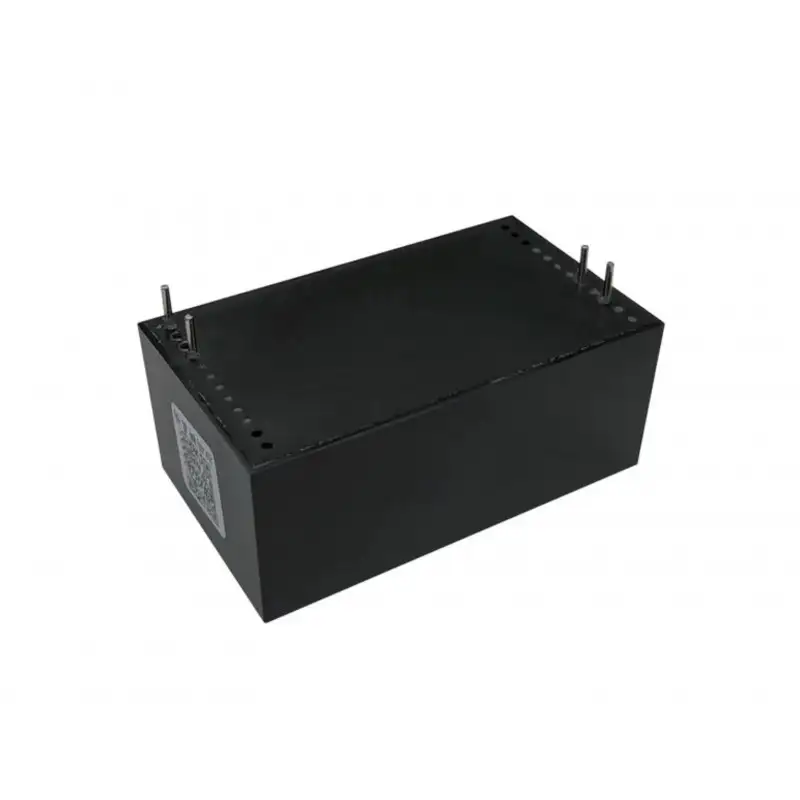

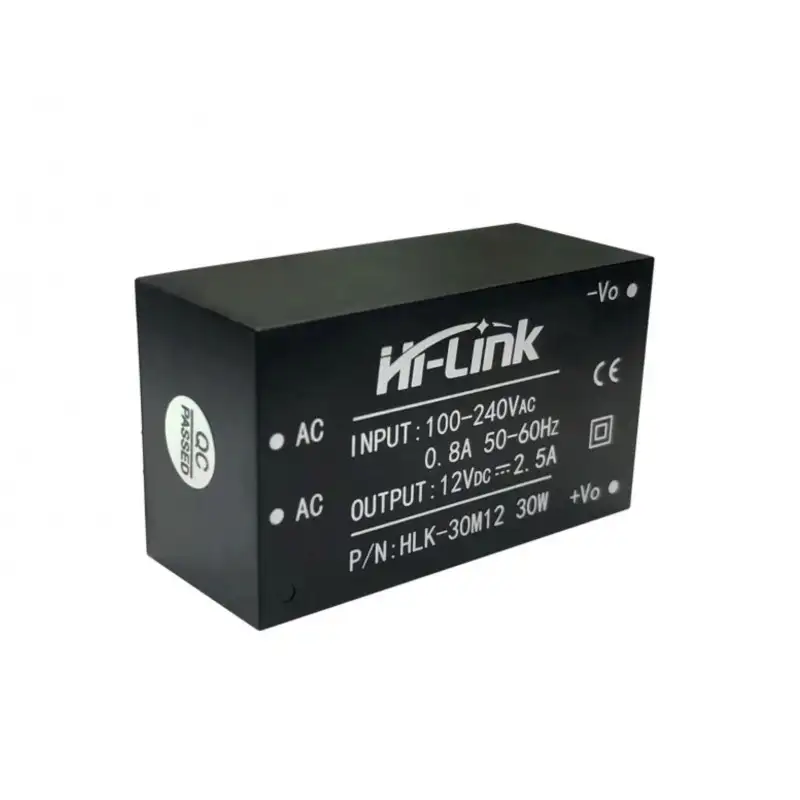

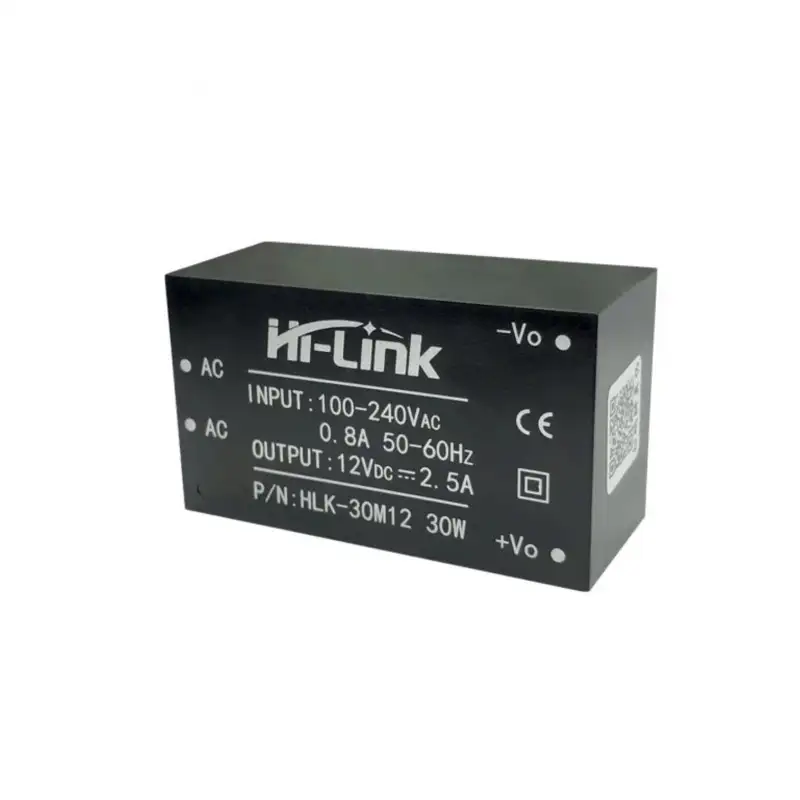

HLK-30M12 Hi-Link 12V 30W AC to DC Power Supply Module

HLK-30M12 Hi-Link 12V 30W AC to DC Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 12V DC from 90V AC to 265V AC and has a power rating of 30 Watt. This makes it perfect for small projects that need a 12 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.

The 30W ultra-small series module power supply is a small-size, high-efficiency, power module designed by Hi-link Electronics for customers with advanced Gallium Nitride chipset. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in smart home, automation control, communication equipment, instrumentation and other industries

This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take.

Features:

1. Ultra-thin, ultra-small, smallest volume;

2. Global universal input voltage (90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit

Environmental conditions:

1. Technical indicators: Single bit
2. Working temperature: -25 to +60 degree
3. Storage temperature: -40 to +80 degree
4. Relative humidity: 5-95%
5. The cooling way: Natural cooling
6. The atmospheric pressure: 80-106Kpa
7. The altitude: 2000M or less.

Specifications:-

Package Includes:

1 x HLK-30M12 Hi-Link 12V 30W AC to DC Power Supply Module
