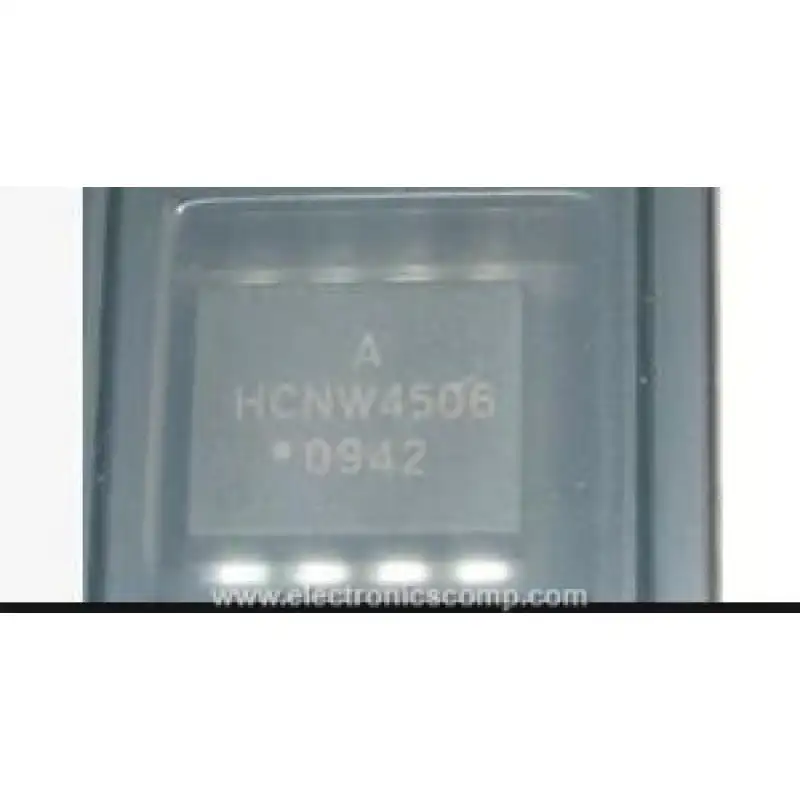

- HCNW4506 IC - (SMD Package) - Intelligent Power Module and Gate Drive Interface Optocoupler IC
Click Image to Preview
HCNW4506 IC - (SMD Package) - Intelligent Power Module and Gate Drive Interface Optocoupler IC
Brand: Generic | SKU: 8754509
₹ 344.00
₹ 544.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
• Performance specified for common IPM applications over industrial temperature range: -40°C to 100°C
• Fast maximum propagation delays tPHL = 480 ns tPLH = 550 ns
• Minimized Pulse Width Distortion PWD = 450 ns
• 15 kV/µs minimum common mode transient immunity at VCM = 1500 V
• CTR > 44% at IF = 10 mA
• Safety approval: UL Recognized
-5000 V rms / 1 min. for HCNW4506
Applications:-
• IPM isolation
• Isolated IGBT/MOSFET gate drive
• AC and brushless DC motor drives
• Industrial inverters
Specification:-
| Symbol | Parameter | Min | Max | Units |
| TS | Storage Temperature | -55 | 125 | °C |
| TA | Operating Temperature | -40 | 100 | °C |
| IF(avg) | Average Input Current |
|
25 | mA |
| IF(peak) | Peak Input Current |
|
50 | mA |
| IF(tran) | Peak Transient Input Current |
|
1 | A |
| VR | Reverse Input Voltage |
|
3 | V |
| IO(avg) | Average Output Current |
|
15 | mA |
| V7 | Resistor Voltage | -0.5 | VCC | V |
| VO | Output Voltage | -0.5 | 30 | V |
| VCC | Supply Voltage | -0.5 | 30 | V |
| PO | Output Power Dissipation |
|
100 | mW |
| PT | Total Power Dissipation |
|
145 | mW |
