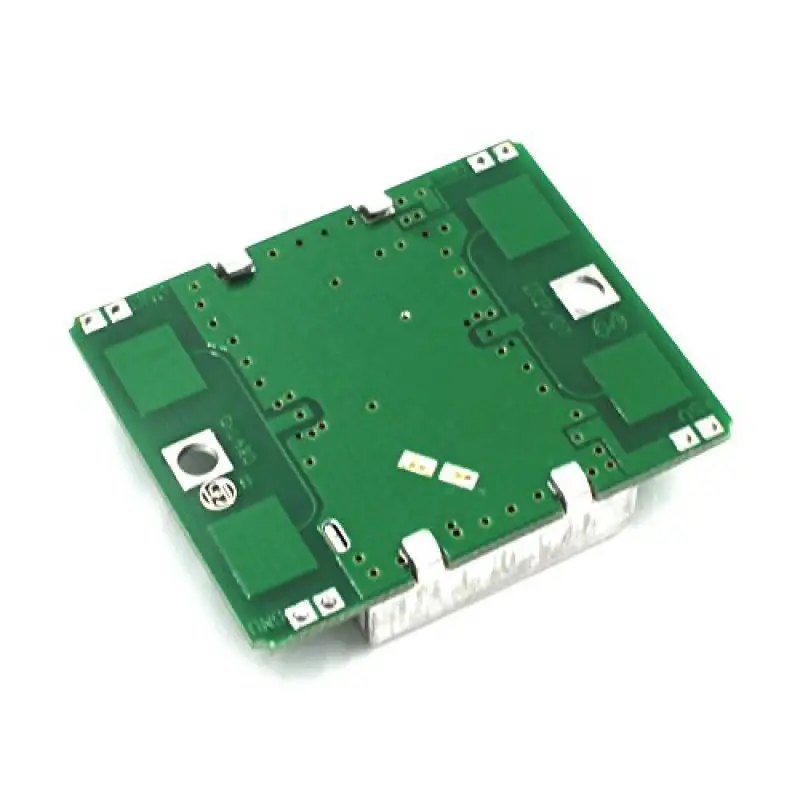

HB100 Microwave Doppler Radar Wireless Motion Sensor Module

HB100 Miniature Microwave Motion Sensor is an X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array,making it ideal for usage in motion detection equipment.

This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement, and automatic doors.

Doppler Principle

Doppler theory based on time. when radio waves encounter an object in the moving process will be reflected when the waves. the frequency of the reflected wave will hit the object with the movement to change state. If the radio waves encounter an object position is fixed. then the reflected wave frequency and transmitting frequency waves should be equal. If the object moves toward the launch. then the reflected waves will be compressed. that will increase the frequency of the reflected wave; otherwise, the reflected waves frequency decreases.

Note : Please use a low voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V.

Features :

1. Low current consumption (typical 30 mA)
2. CW or pulse operation
3. Flat profile
4. Long detection range (20 m)

Specifications:-

Package Includes :-

1 xHB100 MICROWAVE DOPPLER RADAR WIRELESS MOTION SENSOR.
