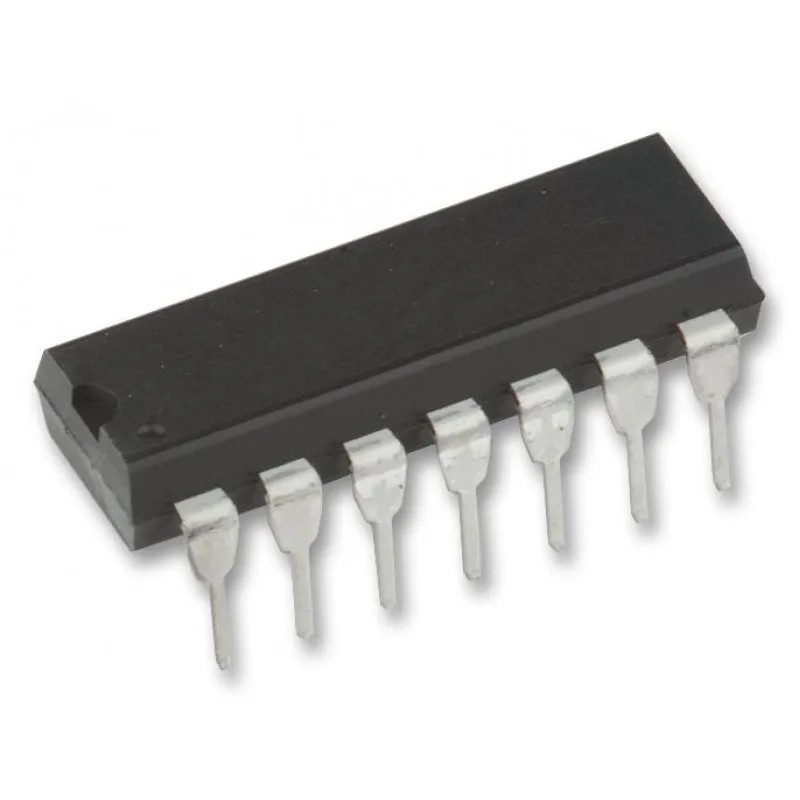

FAN7392 High and Low-Side Gate-Drive IC DIP-14 Package

The FAN7392 is a rnonolithic high- and low-sde gate drive IC that can drive high-speed MOSFETs and IGBTs that operate up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction. Fairch- ild's high-voltage process and cornnwl-rnode noise can- celing techniques provide stable operation of the high- side driver under high dv/dt noise circumstances. An *Ivanced level-shift circuit offers high-side gate driver operation up to Vs=-9.8V (typical) for VBS=15V. Logic inputs are compatible with standard CMOS or LSTTL output. down to 3.3V logic The I-JVLO circuit prevents malfunction when VCC and VBS are lower than the speci- fied threshold voltage. The high-current and low-output vol* drop feature makes this device suitable for half- and full-bridge inverters, like power Sup- r DC-DC converter applications.

Features:-

• Floating Channel for Bootstrap Operation to +600V
• 3AJ3A Sourcing/Sinking Current Driving Capability
• Common-Mode dv/dt Noise Canceling Circuit
• 3.3V Logic Compatible Separate Logic Supply (VDD) Range from 3.3V to 20V
• Under-Voltage Lockout for vcc and VBS Cycle-by-Cycle Edge-Triggered Shutdown Logic
• Matched Propagation Delay for Both Channels
• Outputs In-phase with Input Signals
• Available in 14-DIP and 16-SOP (Wide) Packages

Specifications:-

Parameters	Min	Max	Unit
High-Side Floating Supply Voltage-VB	-0.3	625	V
High-Side Floating Offset Voltage-VS	VB-25.0	VB+0.3	V
High-Side Floating Output VoltageVHO	VS-0.3	VB+0.3	V
Low-Side Supply Voltage-VCC	-0.3	25	V
Low-Side Floating Output Voltage-VLO	-0.3	VCC+0.3	V
Logic Supply Voltage-VDD	-0.3	VSS+25.0	V
Logic Supply Offset Voltage-VSS	VCC-25.0	VCC+0.3	V
Logic Input Voltage (HIN, LIN and SD)VIN	VSS-0.3	VDD+0.3	V

Related Document:-

FAN7392 IC Datasheet
