ESP-01 Wi-Fi Based Home Automation Module with 2 Channel Relay

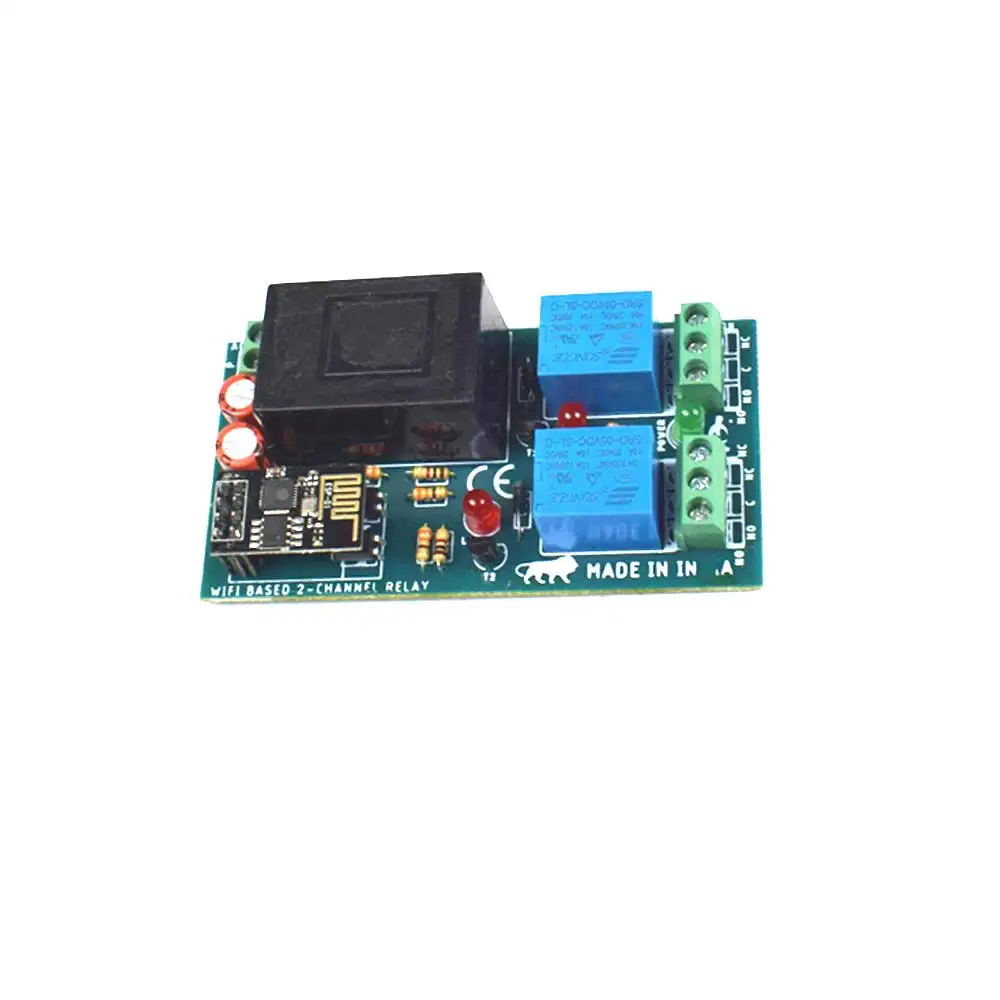

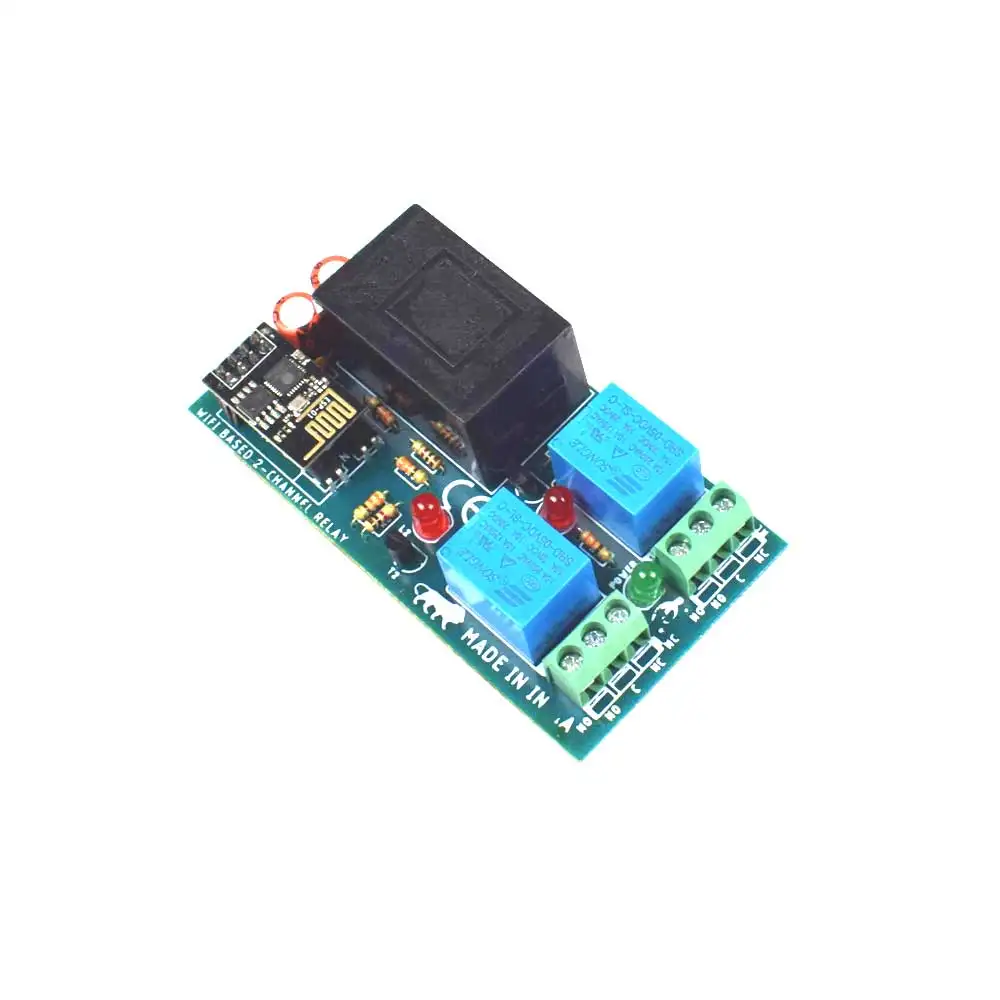

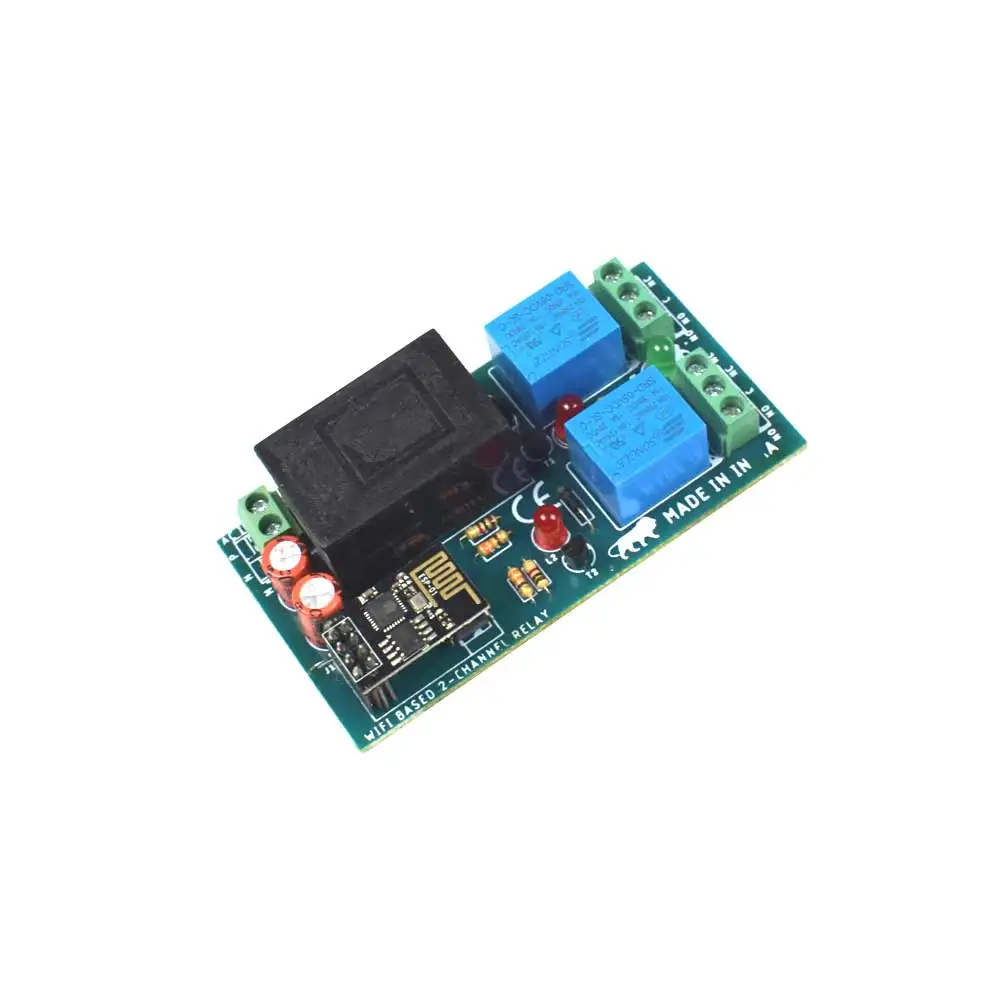

ESP-01 Wi-Fi Based 2-Channel Relay Module for Home Automation Project. This Board Included the Esp01 module, AC-DC Power converter, 2-Channel 5V Relays and through-hole LED for indication purposes. This ESP-01-based Relay Module is suitable for wirelessly controlling appliances via WiFi. It is a two-channel relay module that can control up to 250V AC and 30V DC with a load capacity of 10A. The module has an LED that lights up depending on the module's condition. When a signal is received on the IN pin, a red power activation LED illuminates. When a signal is received, the relay triggers, connecting the output pins with an audible click. The integrated ESP8266 is used to control the relay. ESP-01 will manage everything, once programmed and powered making it suitable for the internet of things (IoT) projects.

The ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost-effective board with a huge, and ever-growing, community.

ESP8266 ESP-01 Remote Serial Port WIFI Transceiver can work effortlessly with platforms like Arduino. It has powerful onboard processing and storage capabilities which allow the module to be integrated with sensors and other application-specific devices through its GPIOs.

Board Includes
