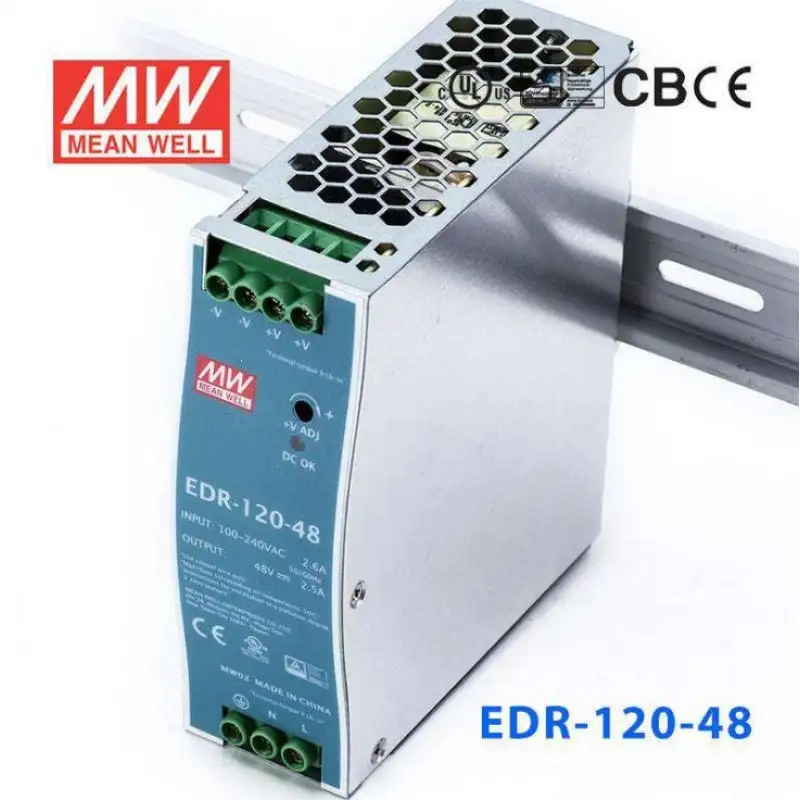

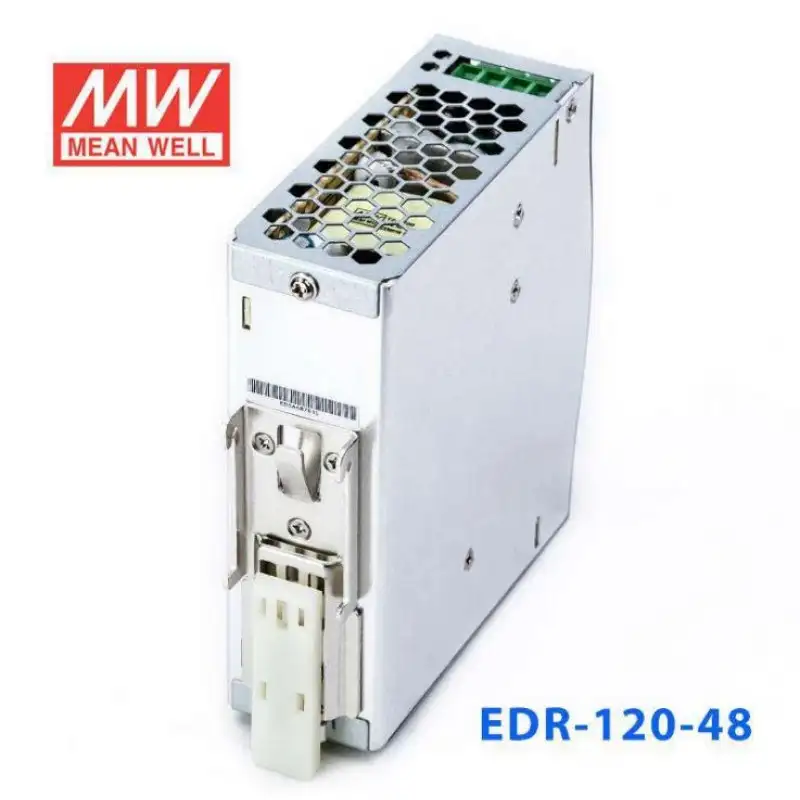

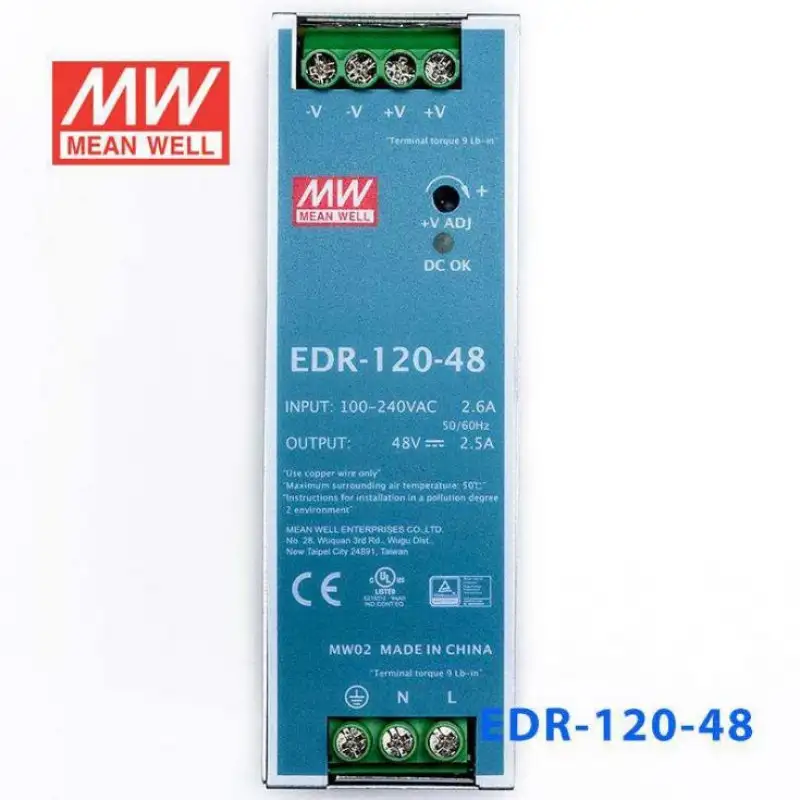

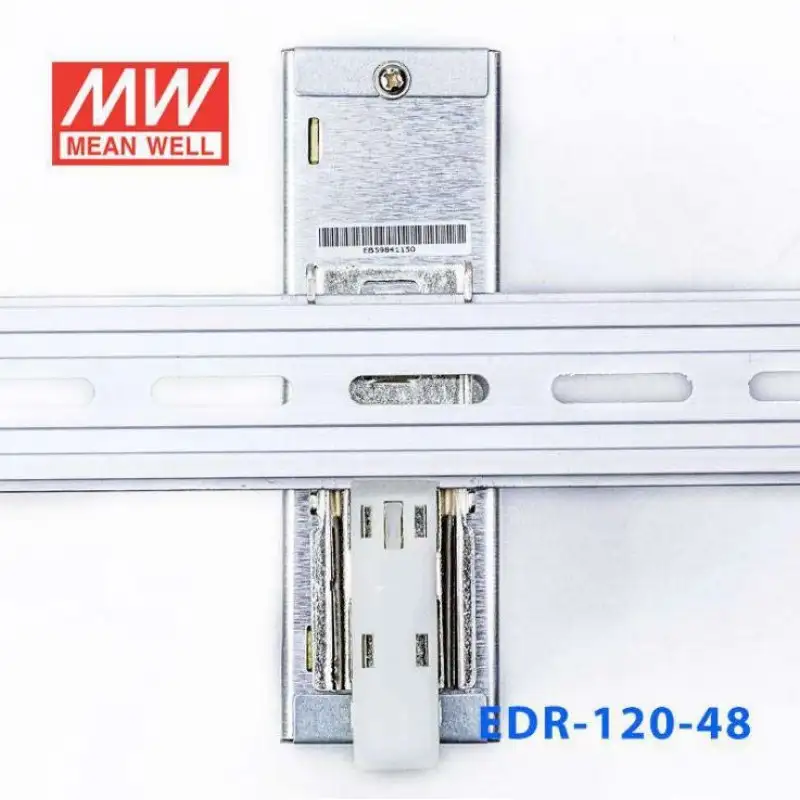

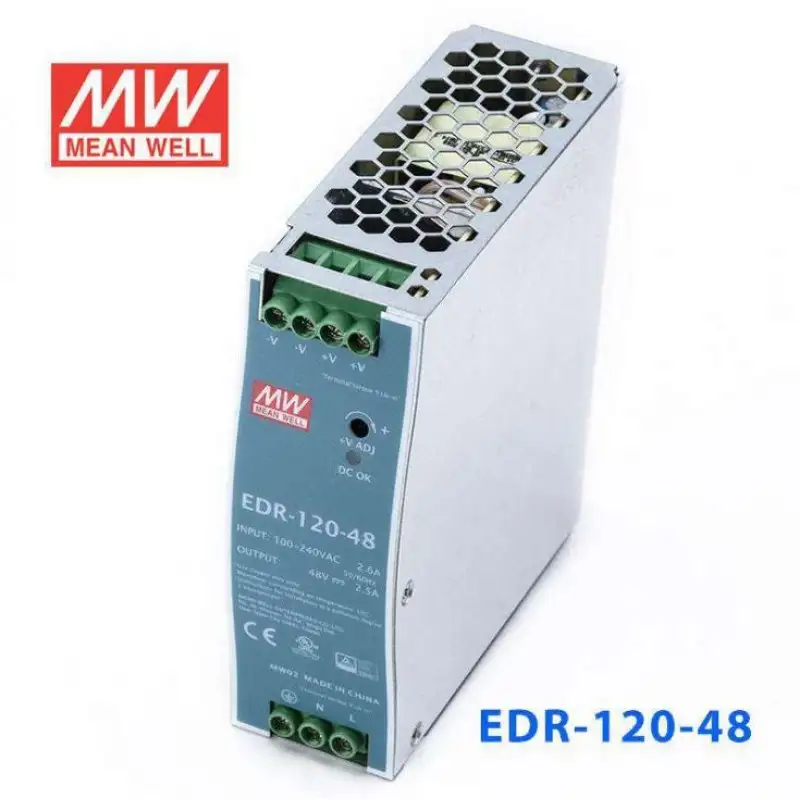

EDR-120-48 Mean well SMPS - 48V 2.5A 120W Din Rail Metal Power Supply

In Stock

Brand: Generic | SKU: 5023299

₹ 2,944.83

~~₹ 4,165.60~~

Save 29%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1 Shipped by 2 to 3 Weeks

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Key Specifications:-

Features:-

Specifications:-

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range	10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+60!aC (refer to output derating curve
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	40x 125.2x 113.5
