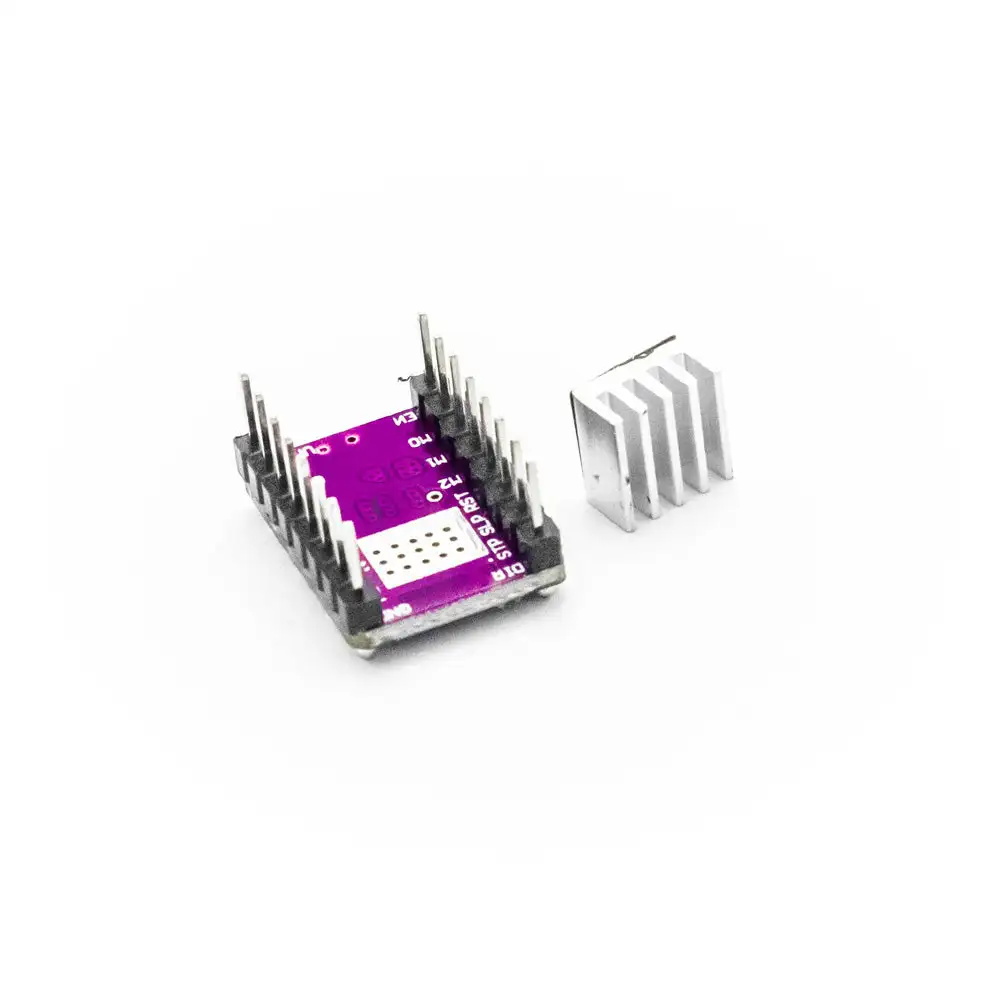

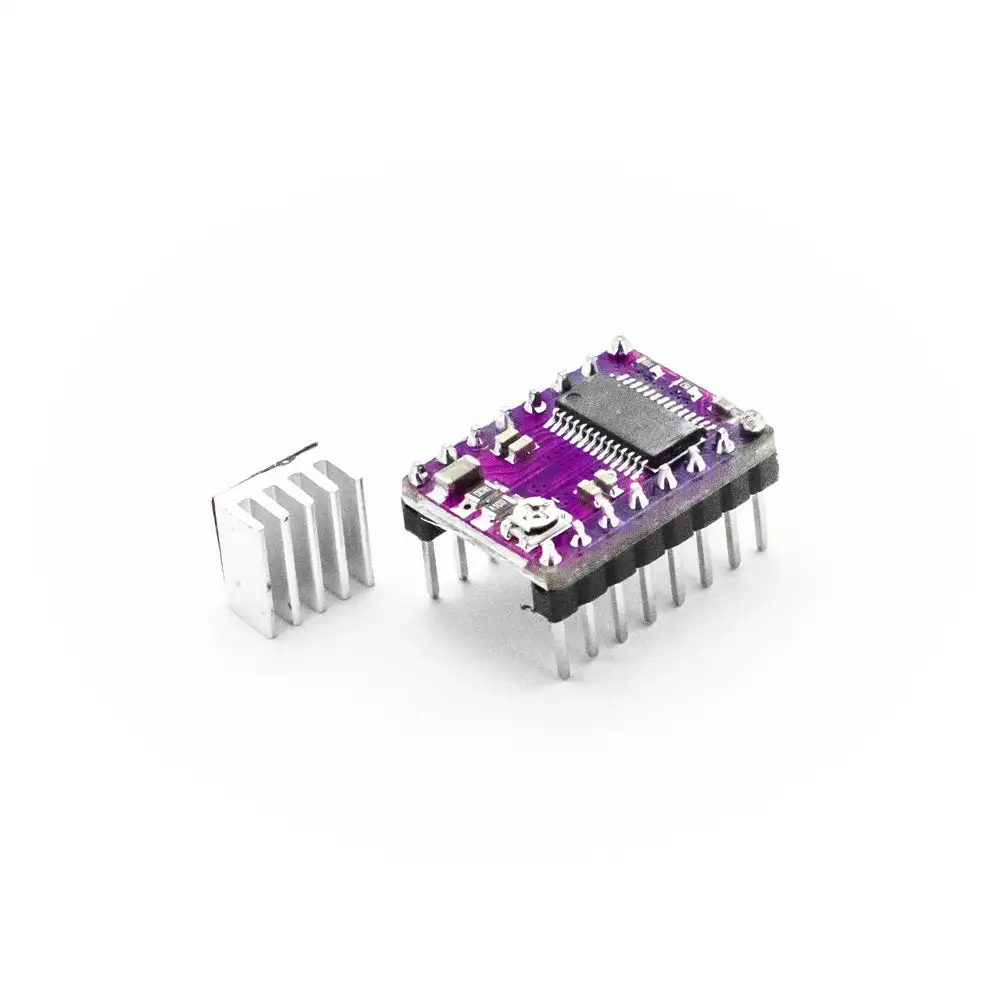

DRV8825 Stepper Motor Driver with Aluminum Heat Sink

Name: DRV8825 Stepper Motor Driver with Aluminum Heat Sink
Brand: Generic
SKU: 7311171

Out of Stock

Brand: Generic | SKU: 7311171

₹ 192.00

~~₹ 203.00~~

Save 5%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

This breakout board for Texas Instruments' DRV8825 micro stepping bipolar stepper motor driver includes adjustable current limiting, over-current and over-temperature protection, and six micro step resolutions (down to 1/32-step). It can deliver up to 1.5 A per phase without a heat sink or forced airflow and operates from 8.2 V to 45 V. (rated for up to 2.2 A per coil with sufficient additional cooling) The pinout and interface of the driver are nearly identical to those of our A4988 stepper motor driver carriers, allowing it to be used as a higher-performance drop-in replacement for those boards in many applications.

Features

8.2 ~ 42V DC

2.2A

1.5A (per phase)

2.5 ~ 5V

20x15mm
