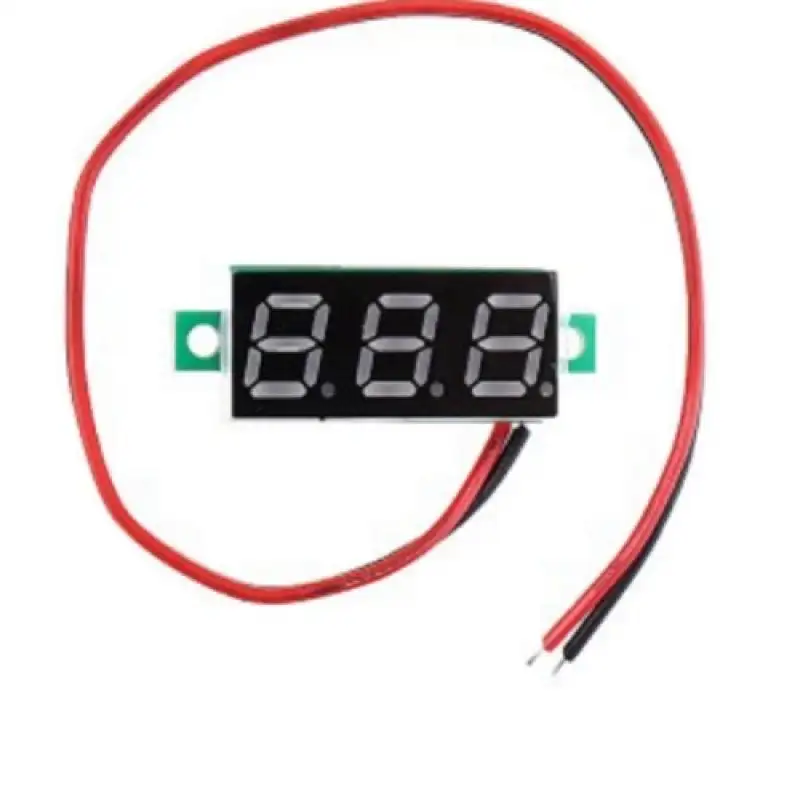

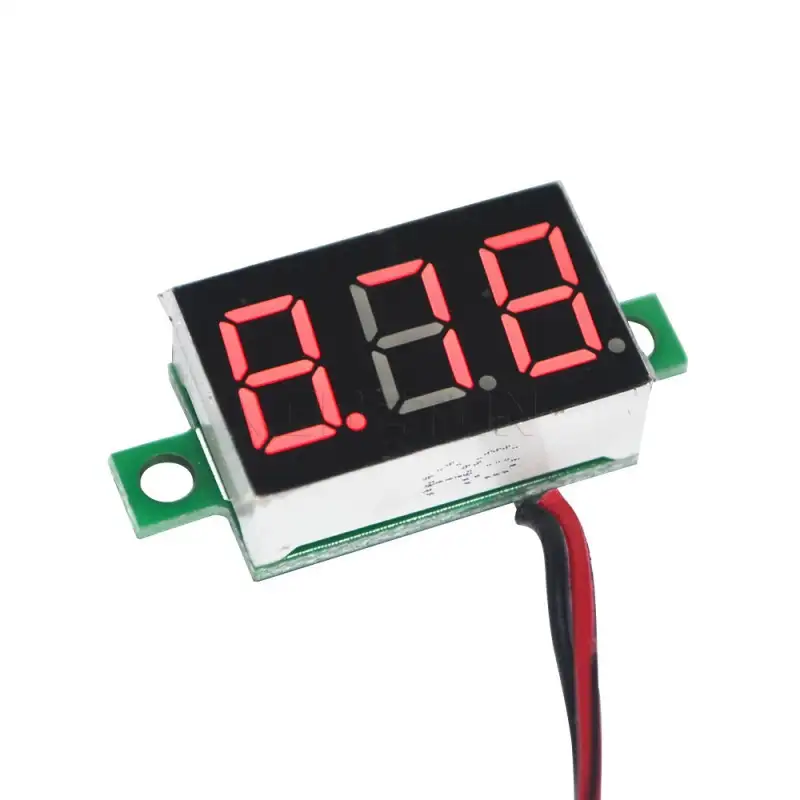

Digital DC Mini Voltmeter 0.36 inch - 2 Wire Module - 4.5V to 30V

This is tiny and compact digital voltmeter with  LED Display. The DC 4.5-30V 2 wire LED Display Digital Voltage Voltmeter Panel requires only a few minutes of configuration and is as simple as directly connecting wires to the source you want to measure and seeing the LED blink!!!!

The red wire is to connect to the positive pole, the black wire is to connect to the negative pole. No need to worry even if there is any connection mismatch of the wires, the electric circuit won’t be a boom because it features reverse polarity protection.

This voltmeter doesn’t need external drive working power, it can work with measuring voltage, the working voltage’s range is 4.5-30V. To reach the best measurement accuracy, this voltmeter will automatically move the decimal point’s position according to the different measuring voltage. When it measures the voltage below 10V, it will display two places after the decimal point. When it measures the voltage above 10V, it will display one place after the decimal point.

This voltmeter can be used to measure the storage battery’s voltage in motorcycles and cars and also can grasp the storage battery’s status. It also can be used to measure other voltage. 30V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid voltmeter’s permanent damage because of an electrical spark, power supply ripple, or other too high abrupt change of voltage.

Very bight and decent LED Display is ready to measure the dc voltages in the range of 4.5V to 30V.

Connections:-

• Red Wire: source +ve terminal.
• Black Wire: Source -ve terminal.
• Note: The display weight and Dimensions may have ±2% error.

Specifications and Features-:

• It is a 2-wire display.
• Current Consumption : < 15 mA.
• Accuracy: 0.1 V.
• Refresh Speed : Approx 200mS/time.
• Dsiplay Color: Red
• Very small and lightweight voltmeter module.
• Very handy and easy to use.
• LED display.
• Best operates in the working voltage range of 5V to 24V
• 100% Brand new and high quality.
