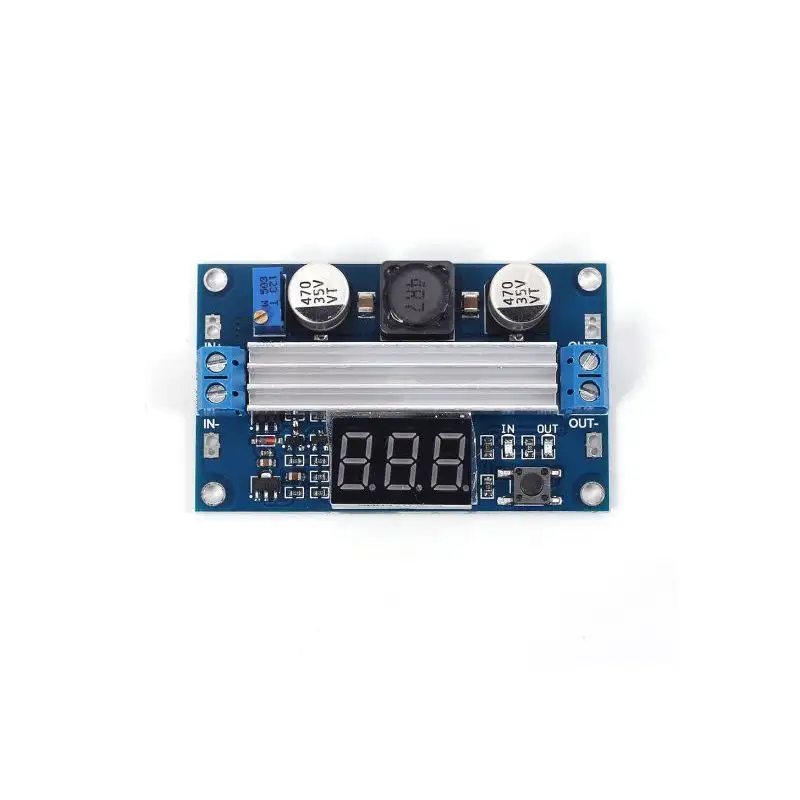

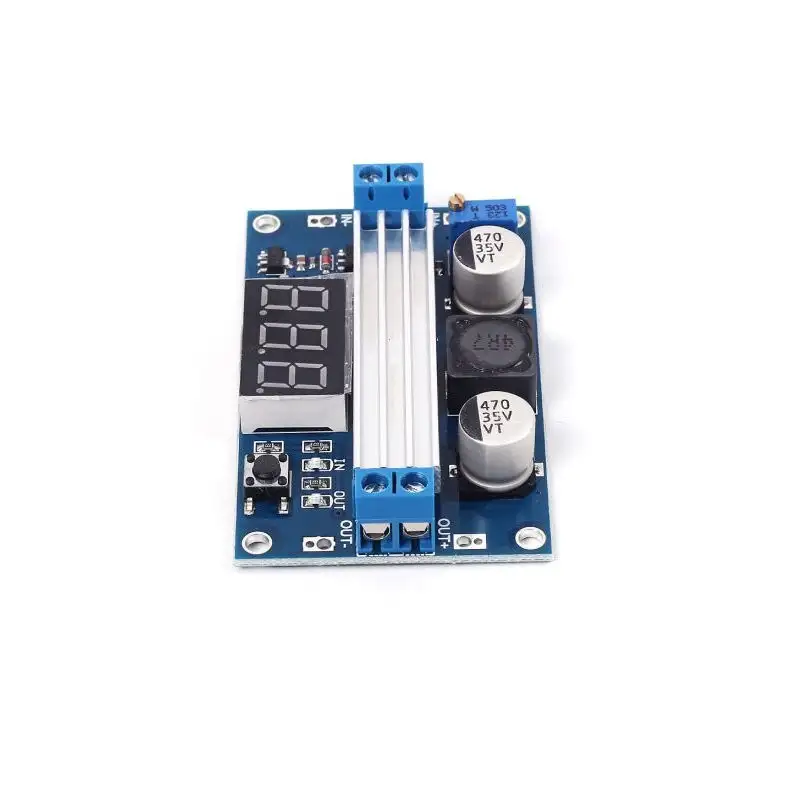

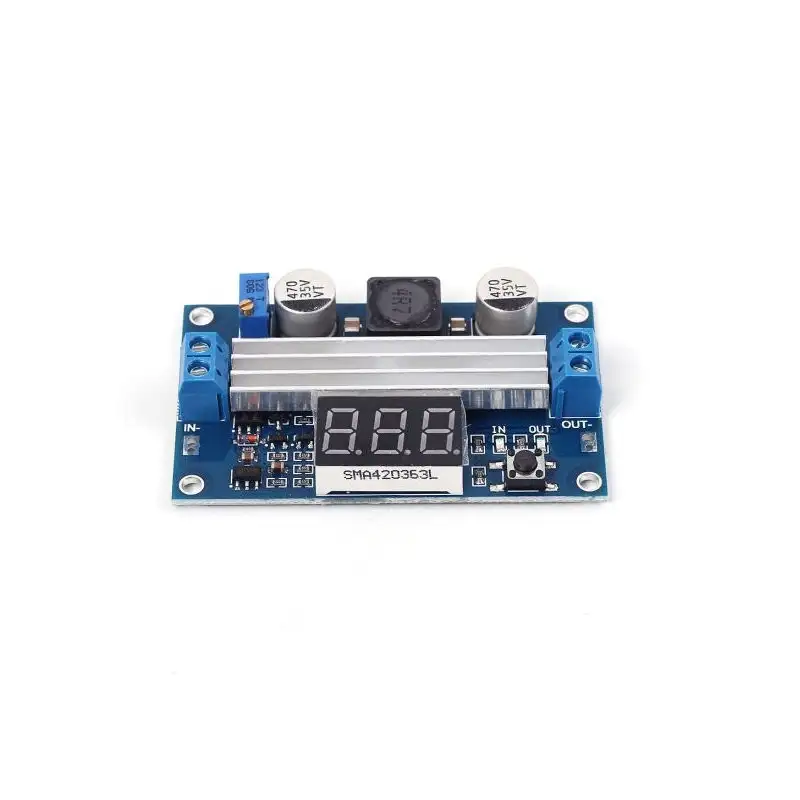

DC-DC High Power Adjustable Step-up Module 3.0-35V to 3.5-35V 100W with Digital Display Voltmeter

The automatic boost module provides a stable power supply. Applicable to an unstable voltage source or voltage conversion. The display part adopts a more advanced microprocessor of the voltmeter. By using the on-resistance of power MOSFET, the current detection resistance is omitted, and the efficiency is improved to the maximum extent, up to 96.4%.

Imported high power low resistance MOS transistors, large package, high current, high-efficiency Schottky, ultra-wide, and thick PCB wiring, are the guarantee of high power, high efficiency, and low-temperature rise. High frequency, high capacity and low resistance (low ESR) aluminium electrolytic capacitor for long-life switching power supply make the output ripple lower.

Features:

1. High power 100W.
2. Switch display output and input voltage.
3. Adjustable output voltage.
4. Real-time display voltage.
5. Comes with an excellent heat sink
6. Fixed mounting hole.
7. High-quality terminal block

Specifications:

1. Input voltage: 3 ~ 35V DC
2. Input current: 9A (max)
3. Output voltage: 3.5 ~ 35V DC (this board is the boost plate, the output voltage to> = input voltage)
4. Output current: 6A (max)
5. Output power: 75W, (when the input and output voltage is greater than 20V can reach 128W)
6. Conversion efficiency: 96.7% (highest)
7. Output ripple: 24mV (TYP)
8. Onboard voltage meter range: 4 ~ 40V, error + -0.1V
9. Short circuit protection: Yes (limit current 14A).
10. Input reverse polarity protection: no (if necessary, enter the string into the high current diode).
11. Module Size: 67x43mm
12. Weight: 34g

Package Includes:

1 x DC-DC High Power Adjustable Step-up Module
