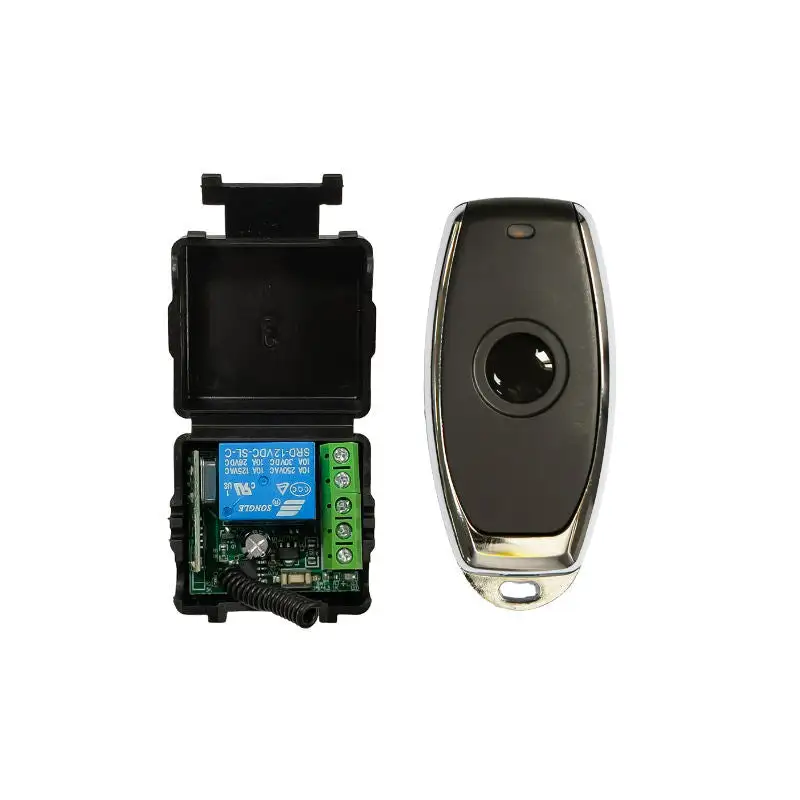

DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter

Name: DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter
Brand: Generic
SKU: 9486581

In Stock

Brand: Generic | SKU: 9486581

₹ 384.00

~~₹ 396.00~~

Save 3%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

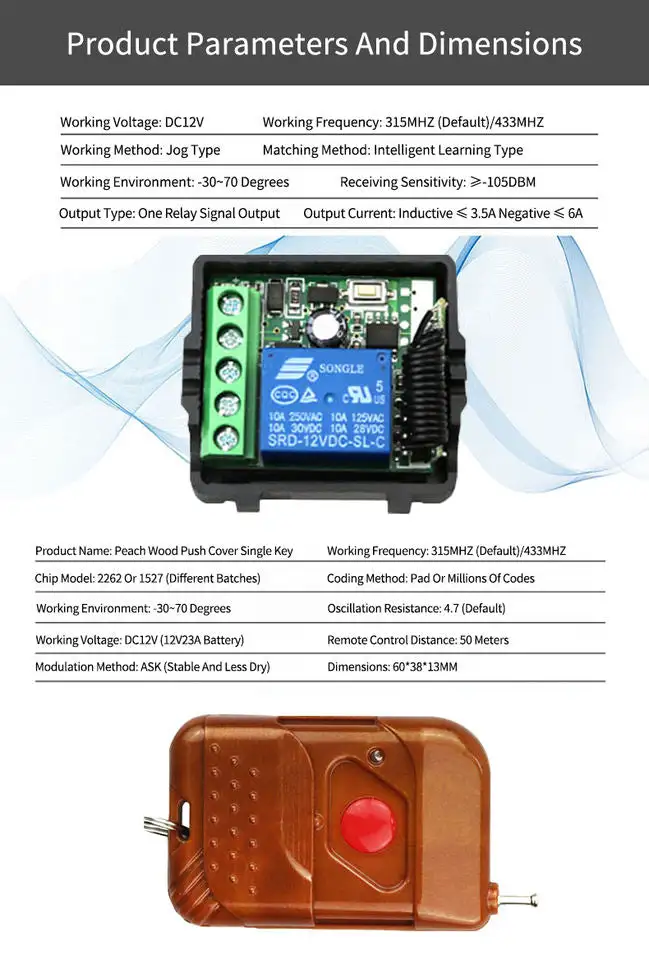

Working voltage: DC12V/23A Operating frequency: 315MHz, 433.92MHz (optional) Working current: 25mA Coding method: fixed code (PT2264 chip)learning code (eV1527/PT2240B) Transmission distance: >1000m (the sensitivity of the receiving board in the open field is above -103dBm) Output power: 16dBm (40mW) Transmission rate: <10Kbps Modulation method: ASK (amplitude modulation) . Working temperature: -10℃~+70℃ Size: 85.3*36.4*16.2mm Application areas: Remote control switch, anti-theft alarm, remote control door lock, remote control electric shutter doors and windows, industrial control products, etc.

Momentary. Toggle .Latched

press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
