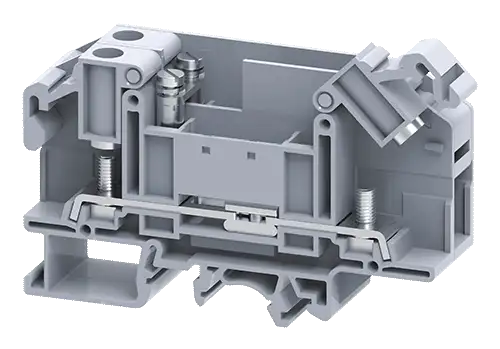

Connectwell STH4DTSH 6 Sq. mm Disconnect & Test Shorted Terminal Block

The Connectwell STH4DTSH is a Hinge Type Disconnect and Test Shorted Terminal Block. STH4DTSH 6 mm² M4 Stud Disconnect & Test shorted Terminal Block - with captive nuts. These Terminal Blocks are recommended for applications in which the connections are subjected to high vibrations. The wire is crimped to a ring/fork type Lug (Ferrule) and screwed onto the Terminal Block's flat current bar. The fastening nut is always held in place by the hinged plastic carrier. Lift the Hinged Carrier to insert the lugs, then snap it back into place. The nut can then be tightened to finish the connection. The hinged design of the Terminal Blocks, in addition to shrouding the live parts and providing IP20 protection, saves significant time in wiring.

Tightening Torque

1.2 Nm

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M4

Operated by

Screwdriver

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

56.4mm

59mm

Height with DIN 35 * 7.5mm rail

52.2mm

Length

86mm

Width(Thickness)

22mm
