Connectwell CX2.5 2.5 sq mm Spring Clamp Feed Through Terminal Blocks
Brand: Generic | SKU: 4701918
₹ 15.00
₹ 19.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description

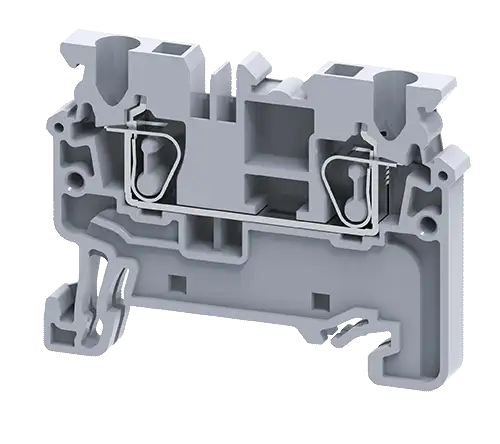

The Connectwell CX2.5 is a 2.5 mm² Feed Thru the Spring Clamp Terminal block. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to gain access to the wire. When the screwdriver is removed, the inserted wire is clamped to the current bar.
Tightening Torque
10 Nm
Wire Entry Orientation
Mounting Possibilities
DIN 35/DIN 35-15 Rail
Operated by
Screw Driver
Rated Surge Voltage
8 kV
Pollution Degree
3
Dimensions
45.7mm
Height with DIN 35 * 7.5mm rail
38mm
Length
50mm
Width(Thickness)
5mm
