Brand: Generic | SKU: 6709963
₹ 248.00
₹ 314.00
Enter your pincode to check delivery options

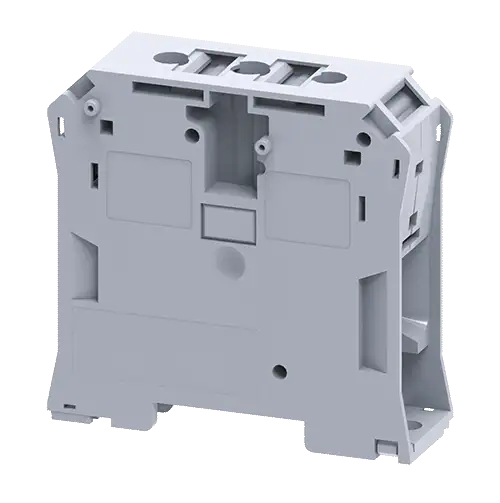

The Connectwell 95/120 sq. mm is a Feed Through Terminal Block with Allen Screws CTS95/120N Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation, and Power Distribution applications. With the aid of a screwdriver, a specially designed flexible foot allows for simple mounting and dismounting from the Din rail. Marker-holding recesses on these Terminal Blocks accept marking tags for circuit identification. Shorting links/sleeves and screws can be used to make a cross-connection.
Datasheet
Rated Voltage
1000 V
Rated Current
269 A
Tightening Torque
6 Nm
Housing Material
Polyamide
Product Function
Feed Through
Wire Entry Orientation
Side Entry
Mounting Possibility
DIN 35/DIN 35-15 Rail
Screw Size
M8
Operated by
Rated Surge Voltage
8 KV
Pollution Degree
1
Height with DIN 35 x 15 mm rail
90.5 mm
Height with DIN 35 x 7.5 mm rail
83 mm
Length
84.5 mm
Width (Thickness)
27 mm
