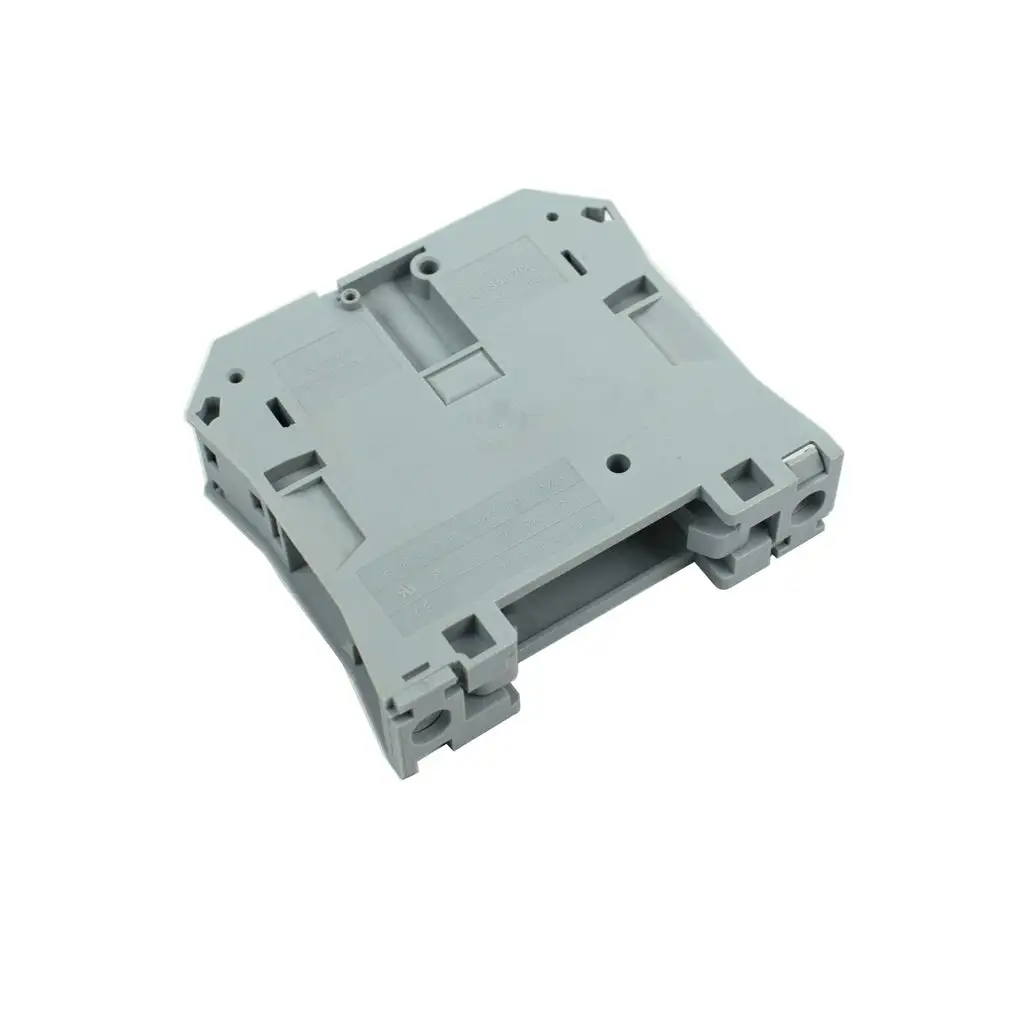

Connectwell CTS50/70N 70sq mm Feed Through Screw Clamp Terminal

CTS50/70N Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. Aspecially designed flexible foot enables easy mounting and dismounting from the Din rail with the help of a screwdriver. These Terminal Blocks have marker-holding recesses to accept marking tags for circuit identification. A cross connection can be achieved with the aid of shorting links/sleeves & screws.To feed through power, signal, and data is the classical requirement in electrical engineering and panel building.The distinguishing characteristics are the insulating material, the connection system, and the layout of the terminal blocks. One or more conductors can be joined together or connected using a feed-through terminal block. They might have one or more connection levels that are isolated from one another or on the same potential. The most versatile terminals for control, automation, measurement, and power distribution applications are 70sq. mmfeed through terminal blocks. With the aid of a screwdriver, a flexible foot with a particular design makes mounting and unmounting from the Din Rail simple. In order to receive marking tags for circuit identification, these Terminal Blocks contain marker holding holes. In order to create a cross connection, shorting links, sleeves, and screws are used.

Rated Voltage

1000 V

Rated Current

192 A

Tightening Torque

3 Nm

Housing Material

Polyamide

Product Function

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibility

DIN 35/DIN 35-15 Rail

Screw Size

M6

Operated by

Screwdriver

Rated Surge Voltage

8 KV

Pollution Degree

3

Height with DIN 35 x 15 mm rail

78.1 mm

Height with DIN 35 x 7.5 mm rail

71.1 mm

Length

77.3 mm

Width (Thickness)

20.5 mm
