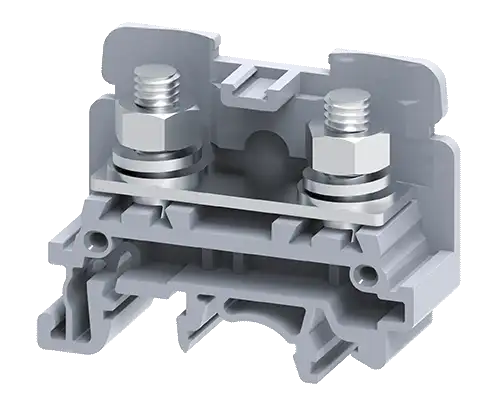

Connectwell CSTSN6U 35 sq. mm Stud Type Terminal Block (Grey)

The Connectwell CSTSN6U is a 35 sq. mm Stud Type Terminal Block in Grey color, Nut driver operated M6 sized Stud Type Terminal Blocks, with Universal Mounting Possibility. These Terminal Blocks are preferred for applications where the connections are subjected to severe vibrations. The wire is crimped to a ring/fork type Lug (Ferrule) and screwed onto the Terminal Block's flat current bar. Terminal Blocks are available in sizes ranging from 1.5 to 35 sq mm. External shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic.

Tightening Torque

3 Nm

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M6

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

46.3mm

48mm

Height with DIN 35 * 7.5mm rail

40.7mm

Length

50mm

Width(Thickness)

17mm
