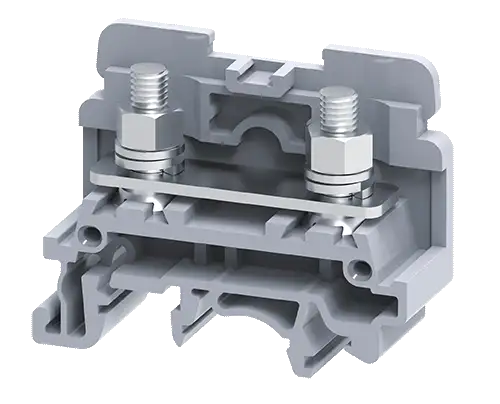

Connectwell CSTSN5U 16 sq.mm Stud Type Terminal Block in (Grey)

The Connectwell CSTSN5U is a 16 sq. mm Stud Type Terminal Block in Grey color, This nut driver-operated M5 sized Stud Type Terminal Blocks, with Universal Mounting Possibility. These Terminal Blocks are recommended for applications in which the connections are subjected to high vibrations. The wire is crimped to a ring/fork type Lug (Ferrule) and screwed onto the Terminal Block's flat current bar. Terminal Blocks are available in sizes ranging from 1.5 to 16 sq mm. External shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic.

Tightening Torque

2 Nm

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M5

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

46.3mm

48mm

Height with DIN 35 * 7.5mm rail

40.7mm

Length

50mm

Width(Thickness)

17mm
