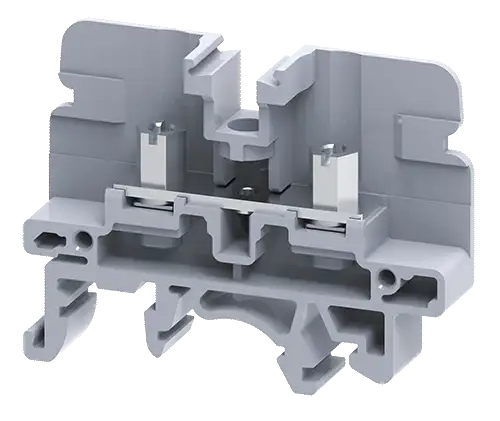

Connectwell CSB3/N3U 6 sq. mm M3 sized Stud/Bolt type Terminal Blocks

The Connectwell CSB3/N3U is a 6mm² M3 sized Stud/Bolt type Terminal Blocks, suitable for operation with a screwdriver and nut driver. This Terminal Block is recommended for applications involving connections that are subjected to high vibrations. The wire is crimped to a ring/fork type lug (ferrule) and screwed onto the Terminal Block's flat current bar. Internal shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic. Wiring can be done with both a screwdriver and a nut driver.

Tightening Torque

0.5 Nm

Housing Material

Polyamide

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M3

Operated by

Nut Driver/Screwdriver

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

43 mm

45.4 mm

Height with DIN 35 * 7.5mm rail

37.9 mm

Length

49 mm

Width(Thickness)

9 mm
