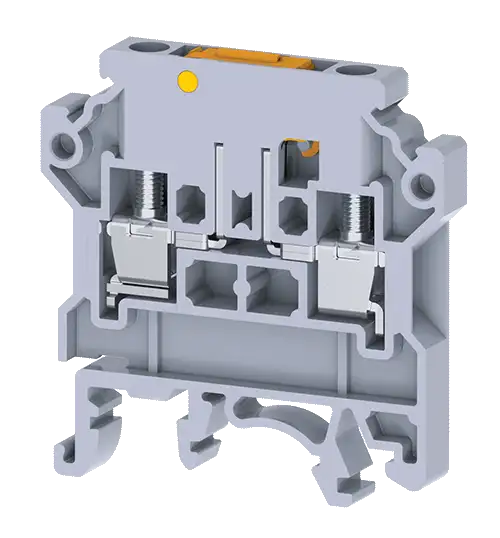

Connectwell CKT4U 4 sq. mm Knife Disconnect Screw Clamp Terminal Block

The Connectwell CKT4U is a 4 sq. mm Knife Type Disconnect & Test Screw Clamp Terminal Blocks in grey color. These blocks are used to test control and regulatory circuits. They clearly provide a functional advantage for devices with utility instruments and associated transformers. Disconnection in CKT4U is accomplished by lifting a lever that operates the knife contact. In disconnecting and testing Terminal blocks, specially designed socket-headed screws serve as test monitoring points.

Datasheet

Rated Voltage

800V

Rated Current

28A

Tightening Torque

0.5 Nm

Housing Material

Polyamide

Product Function

Sliding-Type Disconnect and Test

Wire Entry Orientation

Side Entry

Mounting Possibility

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M3

Operated by

Rated Surge Voltage

8 KV

Pollution Degree

3

Height with DIN 32 rail

54.5 mm

Height with DIN 35 x 15 mm rail

56 mm

Height with DIN 35 x 7.5 mm rail

48.3 mm

Length

46.3 mm

Width (Thickness)

6 mm
