- Connectwell CBB95LS 95 sq mm Feed through Slotted Bolt Type Terminal Block
Click Image to Preview
Connectwell CBB95LS 95 sq mm Feed through Slotted Bolt Type Terminal Block
Brand: Generic | SKU: 4992526
₹ 393.00
₹ 488.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description

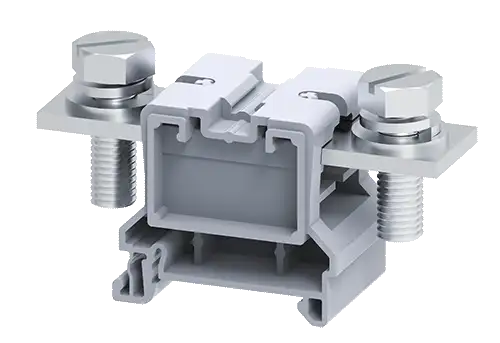

The Connectwell CBB95LS is a 95 mm² Feed through Slotted Bolt Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar.
Tightening Torque
10 Nm
Feed Through
Wire Entry Orientation
Side
Mounting Possibilities
DIN 35/DIN 35-15 Rail
Screw Size
M10
Operated by
Screw Driver
Rated Surge Voltage
8 kV
Pollution Degree
3
Dimensions
54.5mm
Height with DIN 35 * 7.5mm rail
47.5mm
Length
92mm
Width(Thickness)
38mm
