- Connectwell CBB95 95 sq.mm Stud Type Power Terminal Blocks
Click Image to Preview

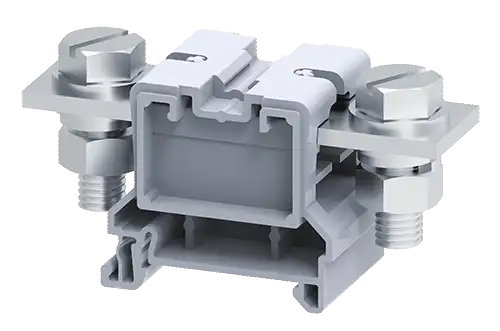

Connectwell CBB95 95 sq.mm Stud Type Power Terminal Blocks
Brand: Generic | SKU: 2376027
₹ 303.00
₹ 376.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
The Connect well CBB95 is a 95mm²Feed through Bolt/Nut Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for use with wires with a large cross-section. The Wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar.
Tightening Torque
10 Nm
Feed Through
Wire Entry Orientation
Side
Mounting Possibilities
DIN 35/DIN 35-15 Rail
Screw Size
M10
Rated Surge Voltage
8 kV
Pollution Degree
3
Dimensions
54.5mm
Height with DIN 35 * 7.5mm rail
47.3mm
Length
92mm
Width(Thickness)
38mm
