- Connectwell CBB70LS 70 Sq.mm Stud Type Power Terminal Blocks
Click Image to Preview
Connectwell CBB70LS 70 Sq.mm Stud Type Power Terminal Blocks
Brand: Generic | SKU: 1011561
₹ 296.00
₹ 367.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description

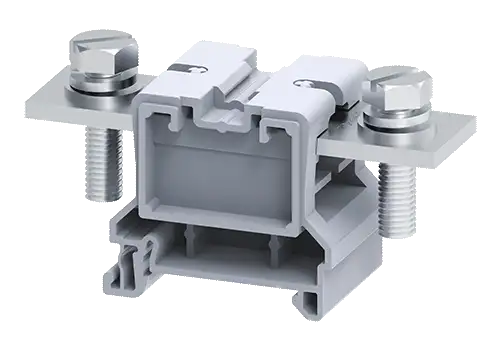

The Connectwell CBB70LS is a 70 mm² Feed through Slotted Bolt Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving wires with a large cross-section. The wire is crimped to a ring/fork lug and screwed to the Terminal Block's flat current bar.
Tightening Torque
6 Nm
Feed Through
Wire Entry Orientation
Side Entry
Mounting Possibilities
DIN 35/DIN 35-15 Rail
Screw Size
M8
Operated by
Nut Driver
Rated Surge Voltage
8 kV
Pollution Degree
3
Dimensions
54.5 mm
Height with DIN 35 * 7.5mm rail
47.5 mm
Length
92 mm
Width(Thickness)
38 mm
