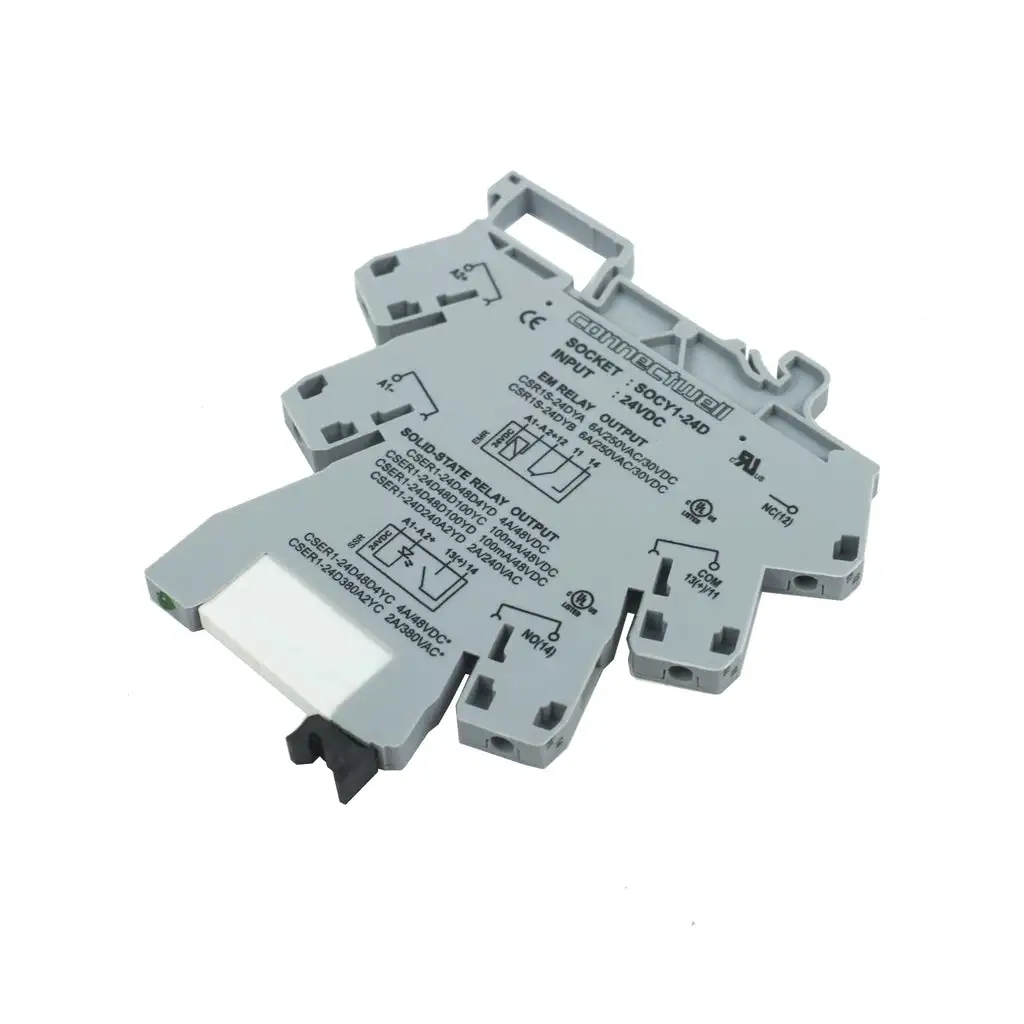

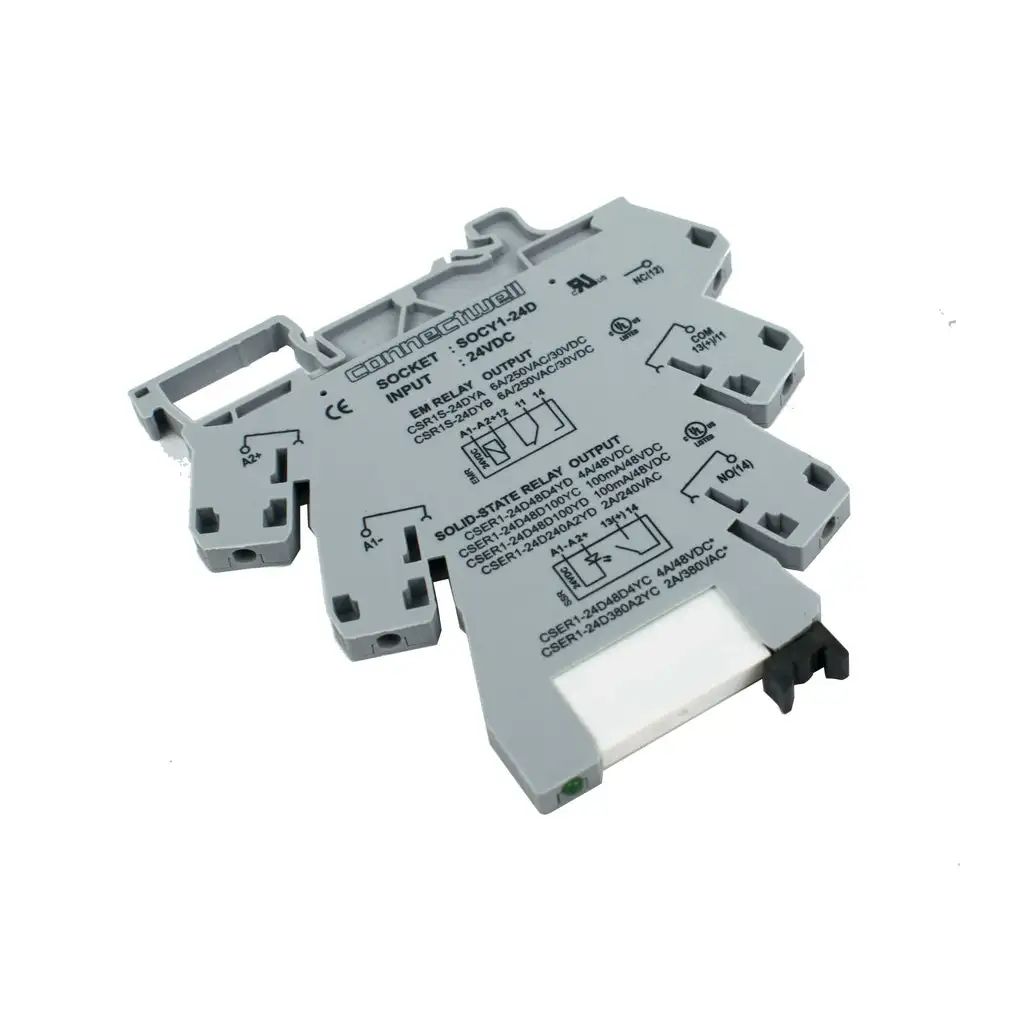

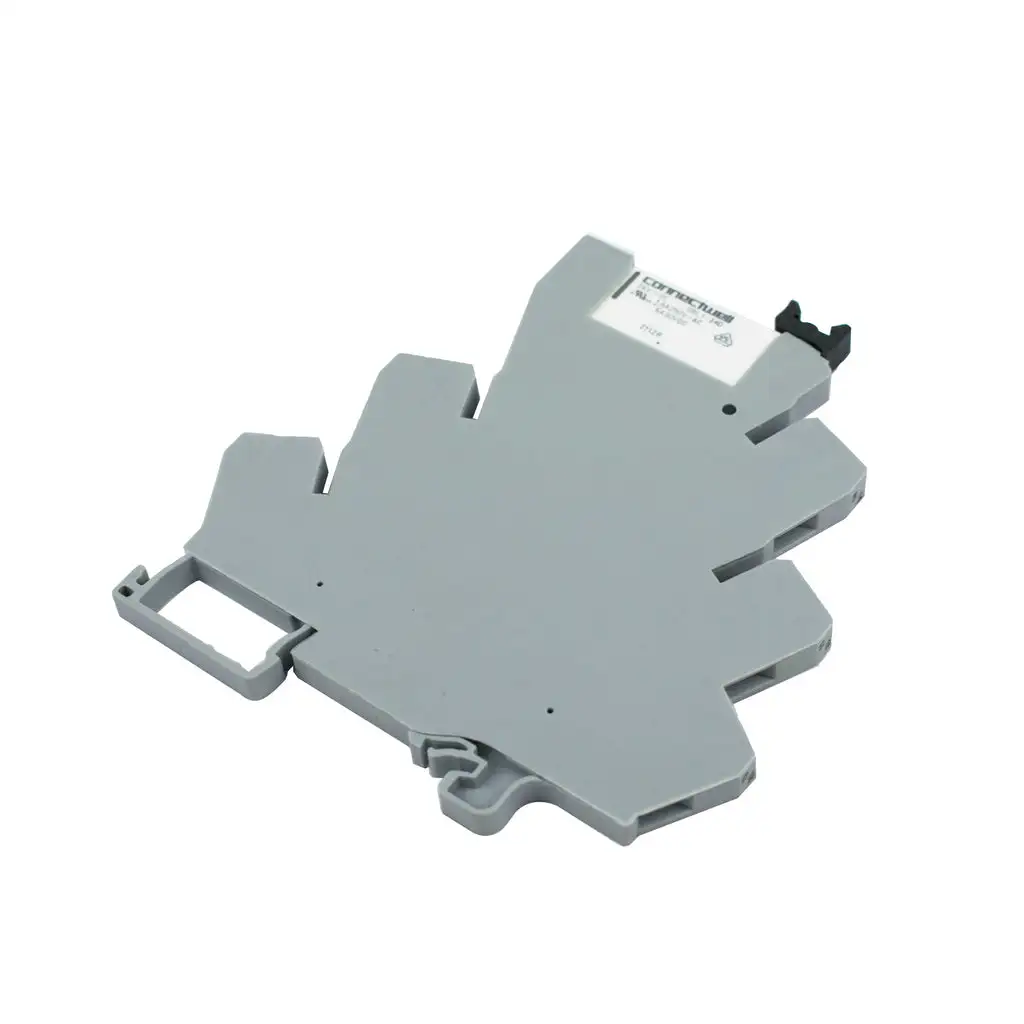

Connectwell 24V 6A Slim Relay Module SOCY1-24D

It's a 24V 6A Slim Relay Module. It has nominal operating voltage 24v DC and nominal input current 8 mA, resistance of coil are 3390ohm.

Features

Bussing Possibility

By Using Push-in Jumper

Relay on Indication

3mm Green LED

Ambient Operating Temperature

-40 to +55 °C

Mounting Possibility

DIN 35/DIN 35-15 Rail

Housing Material

PA 6,6

Housing Colour

Gray

Rated Voltage

24 VDC

Input Polarity Protection

Reverse Polarity Protection, Rectifier based Protection.

Relay type

Electromechanical

RELAY Input/Coil Specifications

Nominal Operating Voltage

24 VDC

Nominal Input Current

8 mA

Must Operate Voltage

15.9 VDC

Must Release Voltage

1.2 VDC

Nominal Input Power

170 mW

Coil Resistance

3390 Ω

Dimensions

Type of Connection

Screw Connection

Min. Wire Size

0.2 mm²

Max. Wire Size

2.5 mm²

Min. Wire Size(AWG)

24 AWG

Max. Wire Size(AWG)

12 AWG

Wire Stripping Length

10 mm

Torque

0.4 Nm
