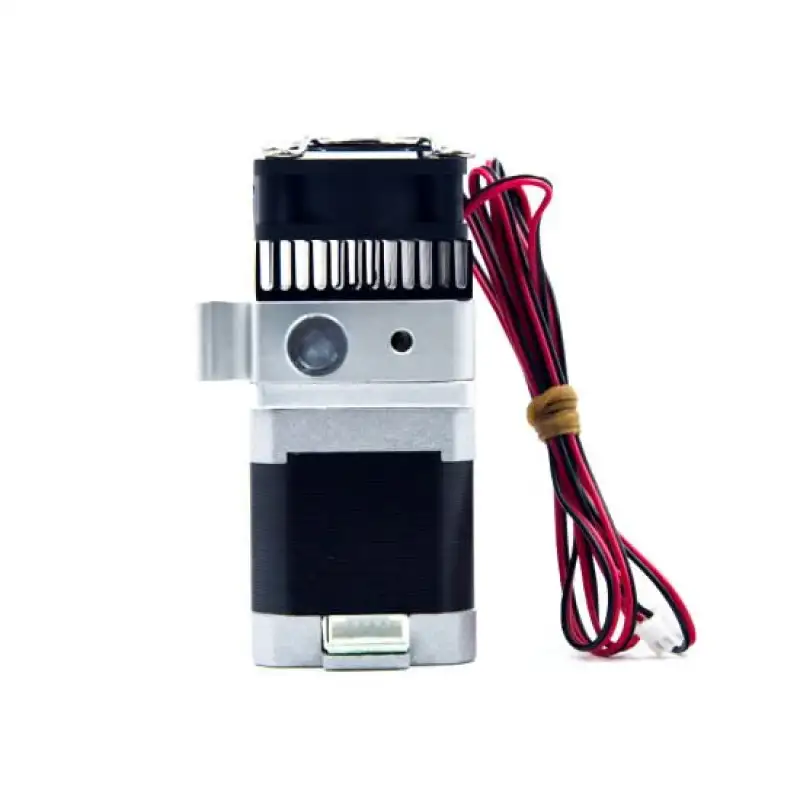

Complete Kit of MK8 Extruder with 0.5mm Nozzle (Assembled)

This single head Complete Kit of Assembled MK8 Extruder has outstanding quality and the best performance for DIY and professional systems. With a 5.5kg (torque) stepper motor and all metal parts, you will find it easy to solve the problems of uneven extrusion, jamming of hotend and filament loading/unloading .

We made these kits available in different Nozzle diameter sizes because some enthusiasts have also used these as quick-swap hotend assemblies. These can help to save a lot of time if you like to switch filaments or nozzles often. And instead of going through the entire nozzle or filament changing process, you can simply pull off one of your hotend assemblies, and then magnetically clip the other assembly straight on. Of course, swapping out the cables is probably the most time-consuming part, but you can also slightly modify these cables with quick-swap connectors to make the entire process of swapping out hotends even easier than levelling the bed!

Note: The color of the product may vary.

Kit Content:

1 x Cooling FAN with Guard grill

1 x MK8 Black Heatsink

1 x MK8 All-Metal Extruder

1 x NEMA Steper Motor

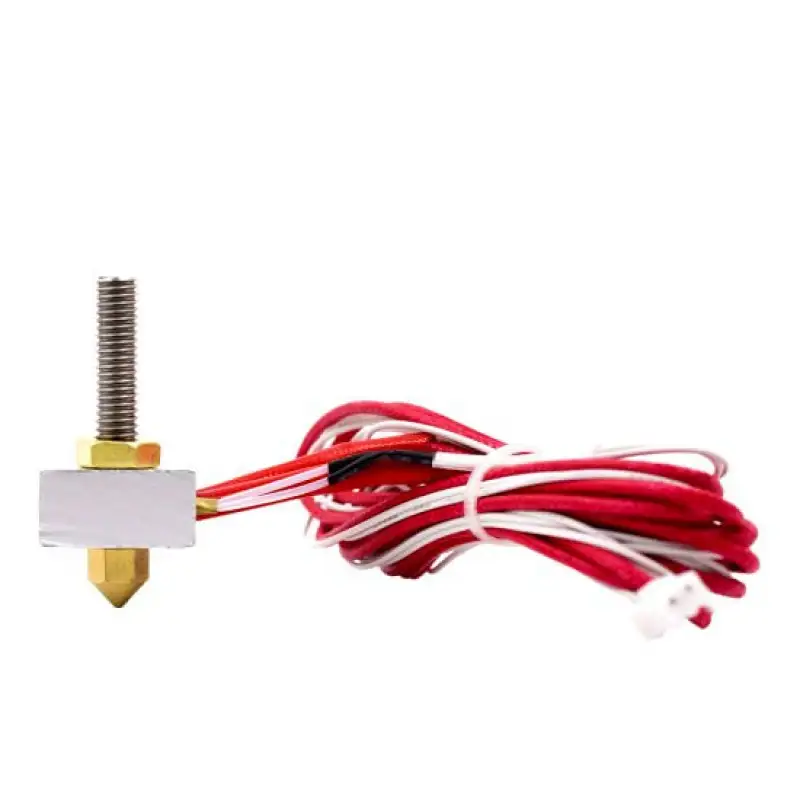

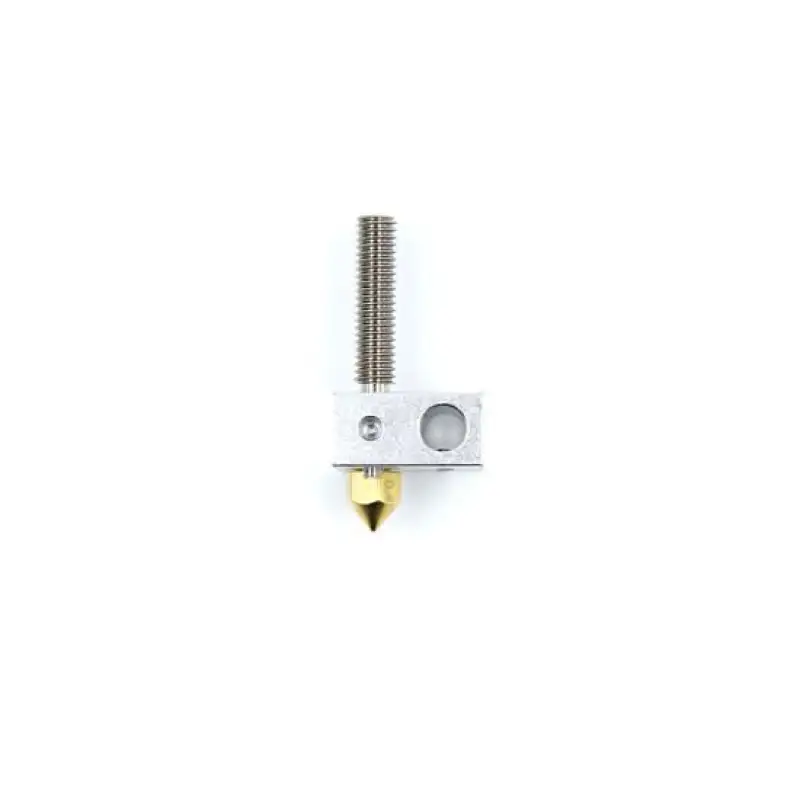

1 x Heating Block

1 x 0.5 mm Nozzle

1 x High-Quality Single End Cartridge Heater

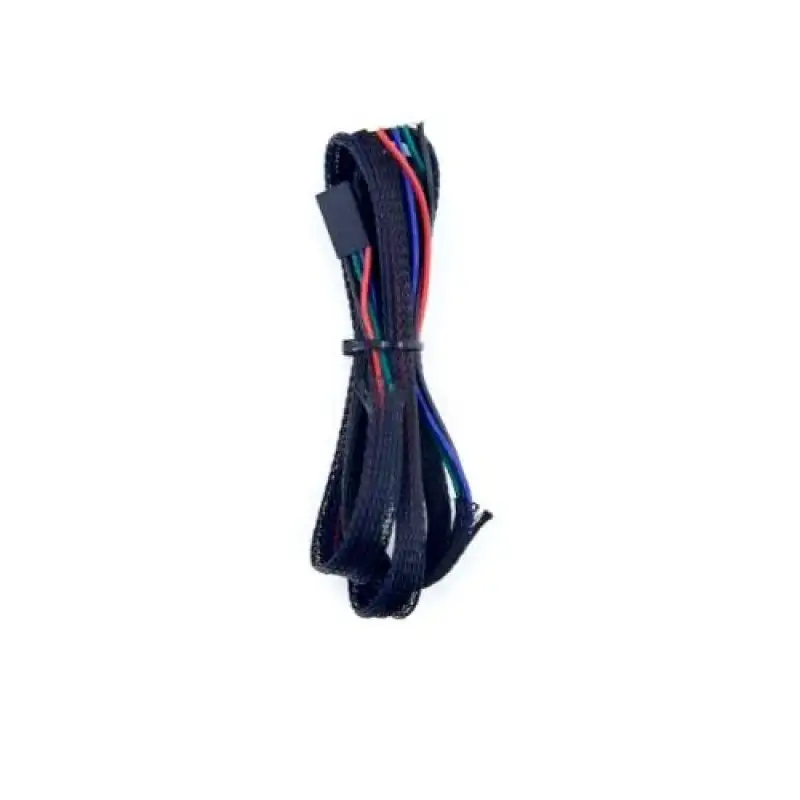

1 x Stepper Motor Cable with Heat protective Sleeve

1 x 100K NTC Thermister with hard Cable

1 x PTFE 2x4mm Teflon Tubing-50cm

Specifications and Features:

1. Maximum operating temp of hotend: 250 degrees
2. Thermistor used: 100K NTC
3. Heater cartridge: 6mm dia, 12 volts and 40 watt
4. Nozzle Size: 0.5mm
5. Compatible print materials PLA, ABS, and HIPS
6. High-Quality Single End Cartridge Heater(Heating Element )
7. High-quality stepper motor with larger torque and less heat buildup
8. Uniform heating aluminium heater block
9. Direct transmission, without the heavy gears, compact size and weight
10. The lever mechanism makes filament insertion and extraction a breeze

Package Includes:

1 x Complete Kit of Assembled MK8 Extruder with 0.5mm Nozzle

Specifications :-

Nozzle Diameter (mm)	0.5
Movement axis speed	40m
Nozzle flow rate	about 24cc/h
Printing Material	ABS, PLA (1.75mm)
Cooling fan operating voltage	12V (24V optional)
Extrusion head heating voltage	12V
Length (mm)	140
Width (mm)	120
Height (mm)	90
Weight (gm)	550
