CNC Three Axis Stepper Motor Drive Controller Motherboard compatible with Arduino

In Stock

Brand: Generic   |   SKU: 9611551

₹ 1,112.00

₹ 1,235.00

Save 10%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

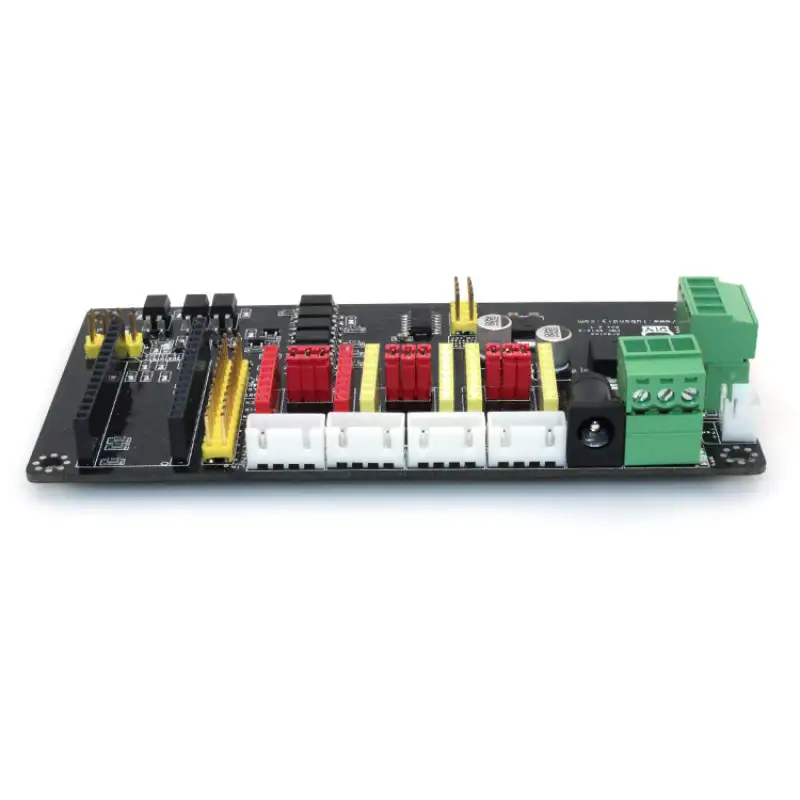

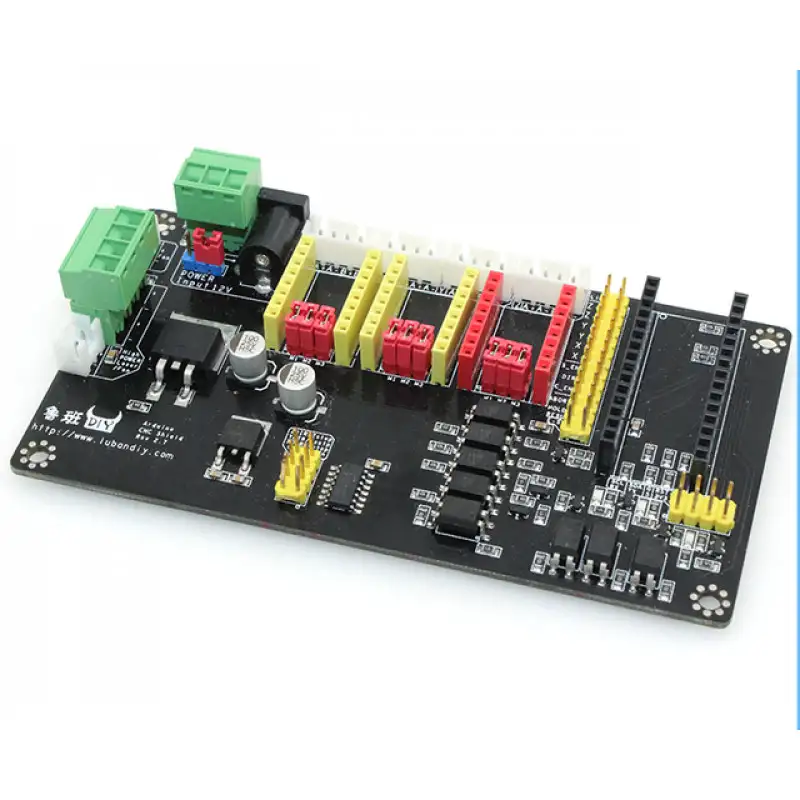

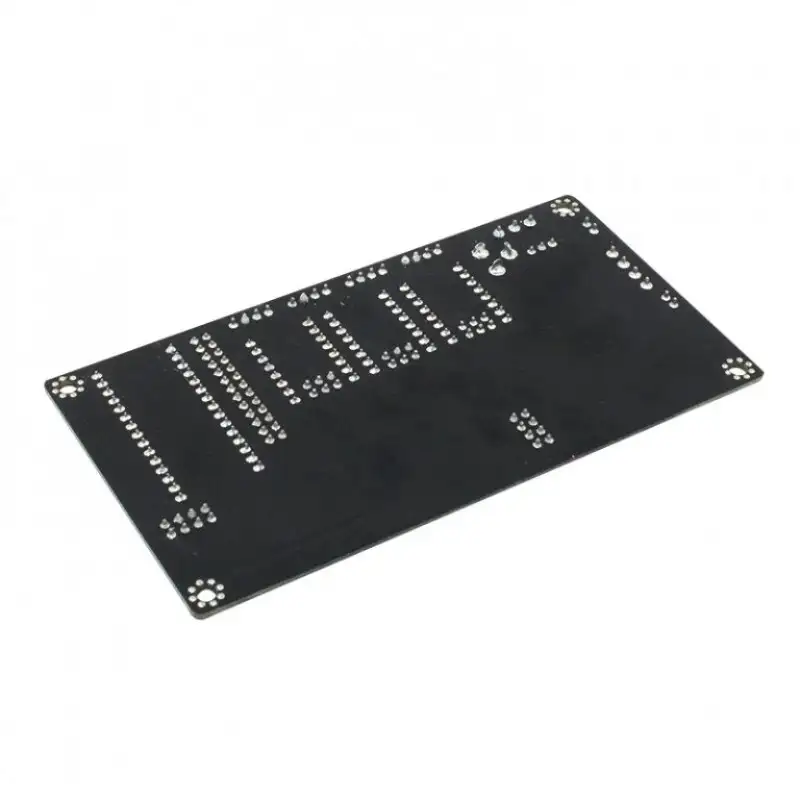

This is CNC Three Axis Stepper Motor Drive Controller Motherboard compatible with Arduino Nano Shield For 3D Printers.

The board features provision for onboard mounting of Nano Arduino Board and two A4988 driver Stepper Motor Driver Modules. This shield is used to power and control stepper motors using A4988 Stepper Motor Driver Module.

The board has 12V DC power jack which provides supply to the motors. This CNC Three Axis Stepper Motor Drive Electronic Control Panel W/ Nano Arduino Shield For 3D Printer Supports adjusting Laser Power; Weak light function, Optical coupling isolation, Anti-jamming. Support for high power laser, Miniature master software support, The latest CNC firmware, Gold plated pins, Limit switch, Motor subdivision, External relay and so on.


Required Products (but not Included) :

A4988 driver Stepper Motor Driver.

Nano Arduino.


Features :

  1. Adjusting the laser power.
  2. Low light function.
  3. Full opto-isolation.
  4. Fine workmanship and durable.


Package Includes :

1 x CNC Three Axis Stepper Motor Drive Controller Motherboard compatible with Arduino


Additional information

Model

LBA-B-V4

Axis

XYZ Three Axis

Input Supply Voltage (VDC)

12

Stepper Motor Power

2 A (Max)

Laser Power

100mW to 5W

Pitch Size (mm)

11257

Length (mm)

120

Width (mm)

65

Weight (gm)

58
